Overview
Type:
Vertical Mills
Manufacturer:
FORTWORTH
Model:
VBM-4V
Year:
1993
Description

Machine is in Excellent Condition & Ready For Inspection.

Specifications
Table-W18"457.2 mm
Table-L75"1,905 mm
Travel-Long47.5"1,206.5 mm
Travel-Cross15.5"393.7 mm
Power12 hp8.9 kW
RPM1,500 RPM1,500 RPM
TaperCAT50CAT50
Dimensions104”L x 84”W x 100”H104”L x 84”W x 100”H
Weight12,500 Lbs12,500 Lbs

Specifications:

Model - VBM-4V
Year - 07/1993
Table Size - 18” x 75”
Table Travel (Left/Right) - 47.5”
Head Travel (Up/Down) - 20.5”
Table Travel (Front/Back) - 15.5”
Spindle Speed - 45 to 1500 RPM
Spindle Taper (Power Draw Bar) - CAT 50
Spindle Motor - 12 HP
Electrics - 575V/3PH/60HZ
Made In - Taiwan
Approximate Weight - 12,500 LBS
Approximate Overall Dimension - 104”L x 84”W x 100”H

Equipped With:

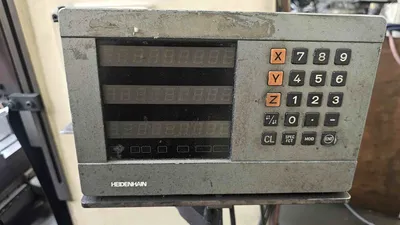

Three Axis Heidenhain Digital Readout

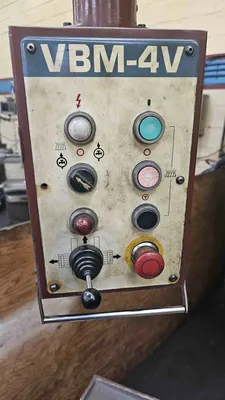

Push Button Pendant Control
50 Taper With Power Draw Bar
Rapid Feeds
Coolant System
