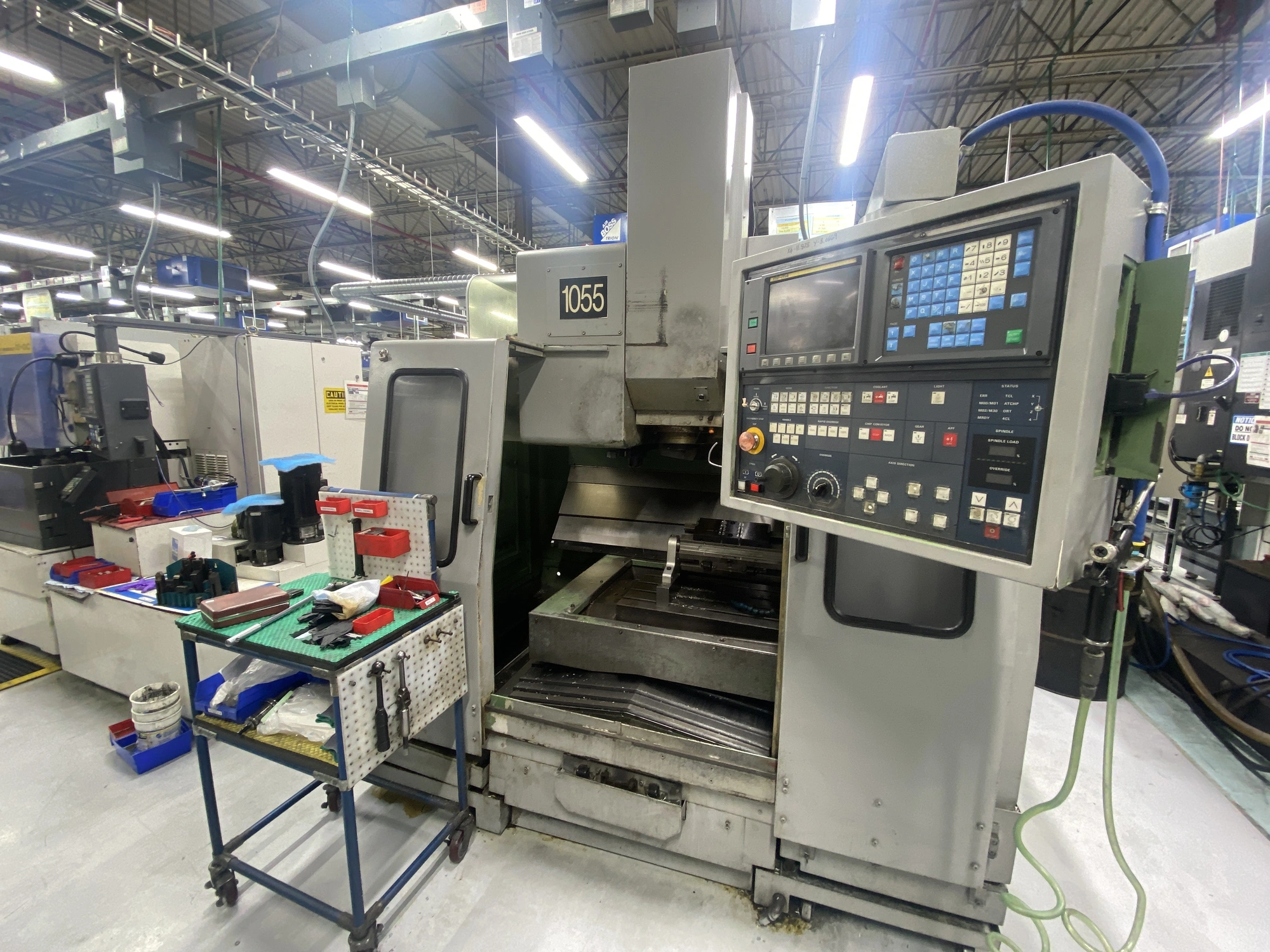

MORI SEIKI MV JUNIOR VERTICAL MACHINING CENTER
| X-Axis | 22" | 558.8 mm |
| Y-Axis | 16" | 406.4 mm |
| Z-Axis | 18" | 457.2 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 20 | 20 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 16" | 406.4 mm |
| Table-L | 35" | 889 mm |
| # Axis | 4 | 4 |

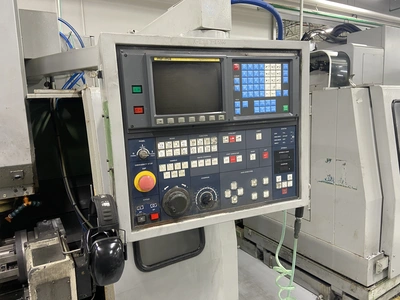

| Control | CNC (Fanuc MF-M4) | CNC (Fanuc MF-M4) |
| Dimensions | 85" x 90" x 106" | 85" x 90" x 106" |
| Weight | 8,600# | 8,600# |
Specifications:
Table Size: 35" x 17"
Maximum Table Load: 660 LBS
Spindle Nose to Pallet Top: 6" - 25"
X-Axis Travel: 22"
Y-Axis Travel: 16"
Z-Axis Travel: 18"
Rapid Traverse Rate (X & Y Axes): 787 IPM
Cutting Feed Rate: 0.1 - 197 IPM
Spindle Taper: CAT 40
Spindle Speeds: 0 - 8,000 RPM
Spindle Motor: 7.5 HP
Tool Changer Capacity: 20 ATC
Maximum Tool Weight: 17 LBS
Approximate Dimension: 85" x 90" x 106"
Machine Weight: 8,600 LBS

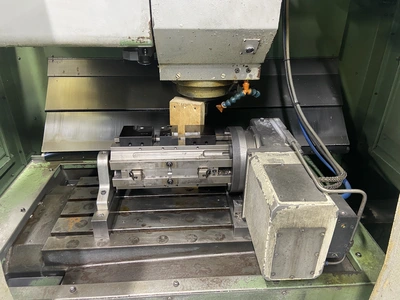

4th Axis
Coolant tanks

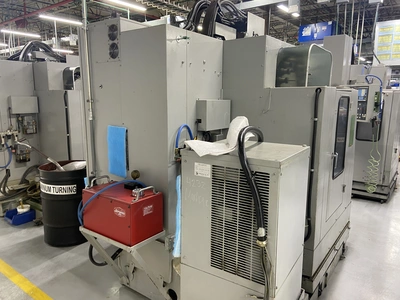

Chiller

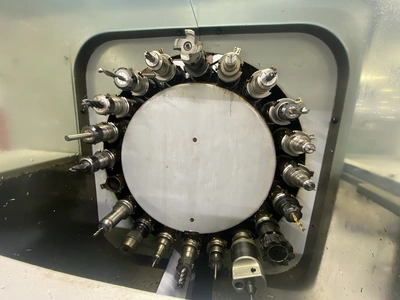

20 ATC
Air Gun
Work light
