USED 2012 CREST OJ4-1218
Overview

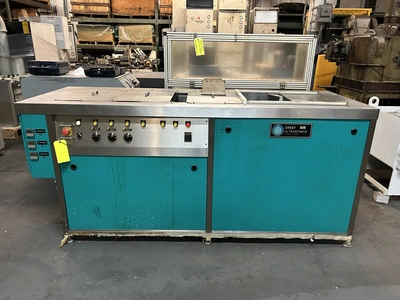

2012 Crest OJ4-1218 Ultrasonic Washer It has a heated ultrasonic wash tank with tank dimensions of 12" W x 18" L x 10" H, 2000 watts of strip heat, 40 kHz ultrasonic frequency, and provides 750 watts of power with 9 ceramic enhanced piezoelectric transducer modules. It also features a heated overflow ultrasonic rinse tank with the same power specifications. The ultrasonic generator delivers a solid 750-watts of power with a RFI Filter, a full and half wave selector switch and a patented power circuit design. The machine also includes a heated overflow rinse tank, a 3-Station 1218 Tank Stand, tank cover, basket positioner, tank drain-back, and a model PF-5 Pump / Filtration System. Power requirements are 240 volts, 60Hz, 1 phase, 8.33 Amps.
Specs
Equipped With
MODEL 4HT-1218-9 - HEATED ULTRASONIC WASH TANK
-Tank Dimensions: 12" Left to Right by 18" Front to Back by 12" Deep, 10" Liquid Depth
-2000 Watts of strip Heat
-Ultrasonic Frequency: 40 kHz
-Ultrasonic Power: 750 Watts of Power Provided by Nine (9), Ceramically Enhanced Piezoelectric Transducer
Modules
-1" Wide Flange Around Top Edge of Protective Skirt
-Tank Bottom Sloped to Drain
-3/4" Fill and Drain Ports
-Two (2) 6' Long of Coaxial Cables to Connect to the Ultrasonic Generator
-A 6' Long Power Cable
-240 Volts/60Hz/1 Phase, 8.33 Amps
MODEL 4HT-1218-9-OFE HEATED OVERFLOW ULTRASONIC RINSE TANK
-Tank Dimensions: 12" Left to Right by 18" Front to Back by 12" Deep, 10" Liquid Depth
-Ultrasonic Frequency: 40 kHz
-Ultrasonic Power: 750 Watts of Power Provided by Nine (9), Ceramically Enhanced Piezoelectric Transducer
Modules
-Power Requirements: 240 Volts/60 Hz/ 1 Phase/8.33 Amps
MODEL 4G-750-9 ULTRASONIC GENERATOR
-Generated Power: 750 Watts (1) 500-watt module and (1) 250-watt module
-RFI Filter
-Patented constant Power Circuit Design Monitors Power Output Continuously Adjusting Input Power for
Controlled Consistency
-Rear Panel Mounted Full and Half Wave Selector Switch
-Factory-Set Tru-Sweep Frequency At +/- 1 kHz Around the Base Frequency
MODEL HT-1218-OFE HEATED OVERFLOW RINSE TANK
-Tank Dimensions: 12" Left to Right by 18" Front to Back by 12" Deep, 10" Liquid Depth
3-Station 1218 Tank Stand
Tank Cover
Basket Positioner
Tank Drain-Back
Model PF-5 Pump / Filtration System
