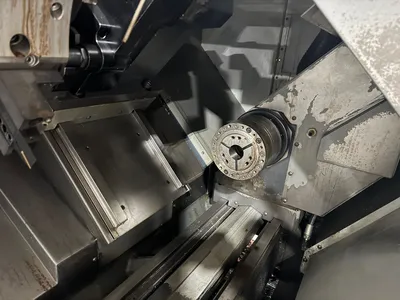

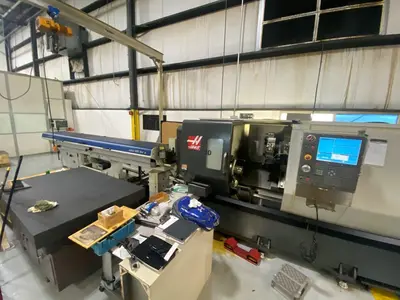

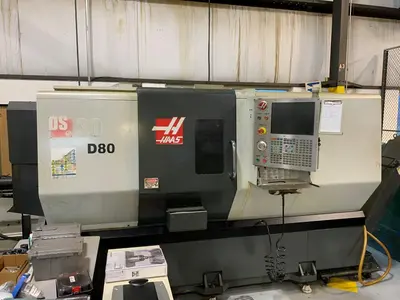

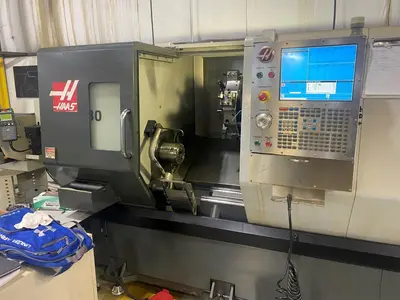

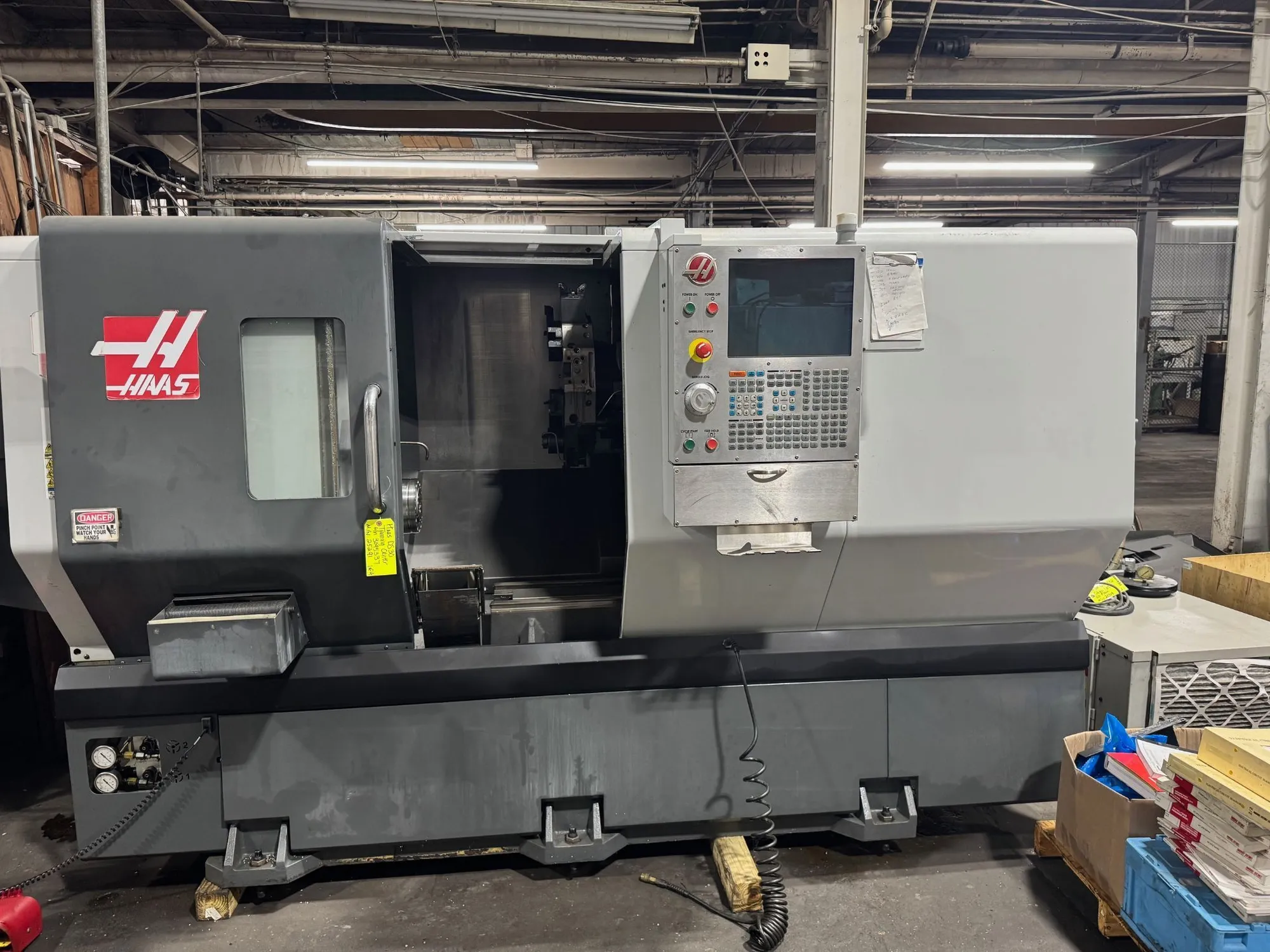

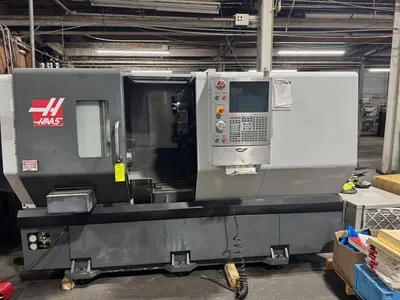

HAAS DS-30 DUAL SPINDLE CNC LATHE
| Swing | 31.75" | 806.45 mm |
| Machining Length | 26" | 660.4 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 17.99" | 456.95 mm |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |

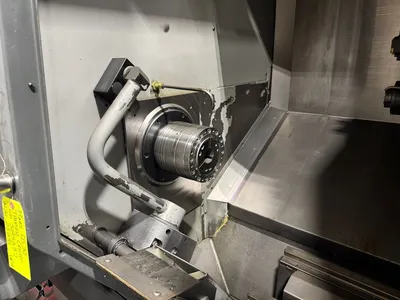

| Sub Spindle | Yes | Yes |
| Control | CNC (HAAS CNC) | CNC (HAAS CNC) |
| Dimensions | 130" x 90" x 83" | 130" x 90" x 83" |
| Weight | 15,000# | 15,000# |
Specifications:
Number of Axis: 5
Swing: 31.75"
Turning Diameter: 17.99"
Center Distance: 25.98"
Chuck Size: 8"
Bar Capacity: 3"
X-Axis Travel: 12.52"
Z-Axis Travel: 25.98"
B-Axis Travel (Sub-Spindle): 25.98"
C-Axis Index: 0.001 Degrees
Spindle Nose: A2-6
Spindle Speed: 4000 RPM
Main Motor: 30 HP
Live Tooling Speed: 6000 RPM
Live Tooling Motor: 5 HP
Turret Capacity: 12
Dimensions: 130" x 90" x 83" H
Approximate Weight: 15,000#
Haas CNC Control

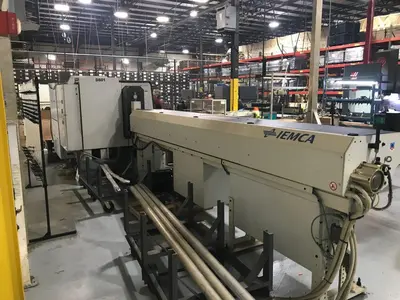

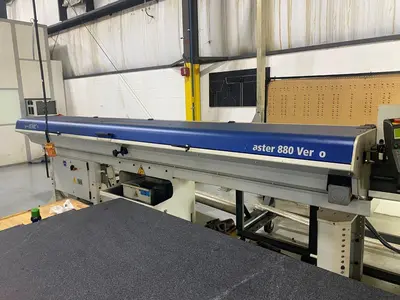

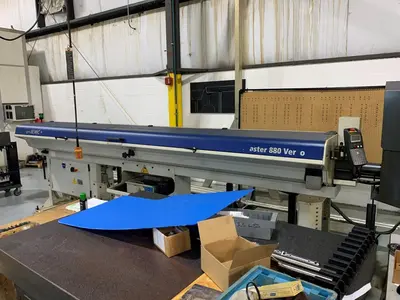

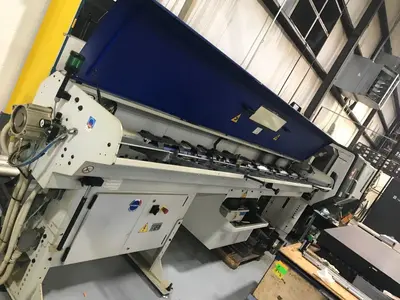

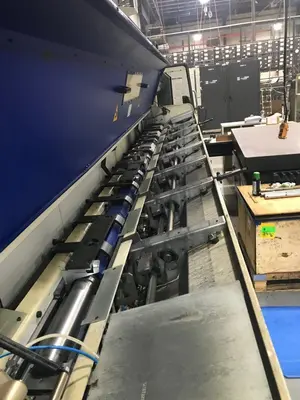

IEMCA Master 880 MP Bar Feeder
Live Tooling

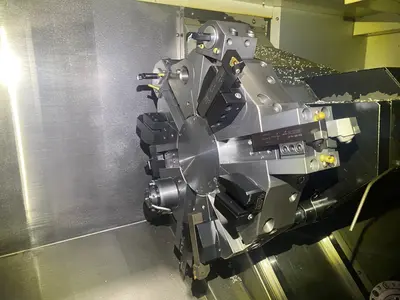

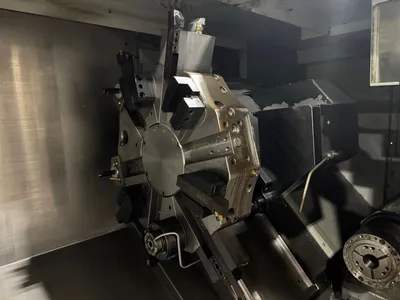

12-Station Hybrid Turret (6 VDI/6 BOT)
15" Color LCD Monitor
Memory Lock Key Switch
USB Port
Rigid Tapping
Coolant Tank
Collet Chuck on Main Spindle
Belt-Type Chip Conveyor
Parts Catcher System
Live Tooling (LT2-HT) - High Torque Live Tooling W/C Axis; Requires VDI or VG Hybrid Turret
Automatic Tool Pre-setter
*Includes Standard Toolholder Kit
