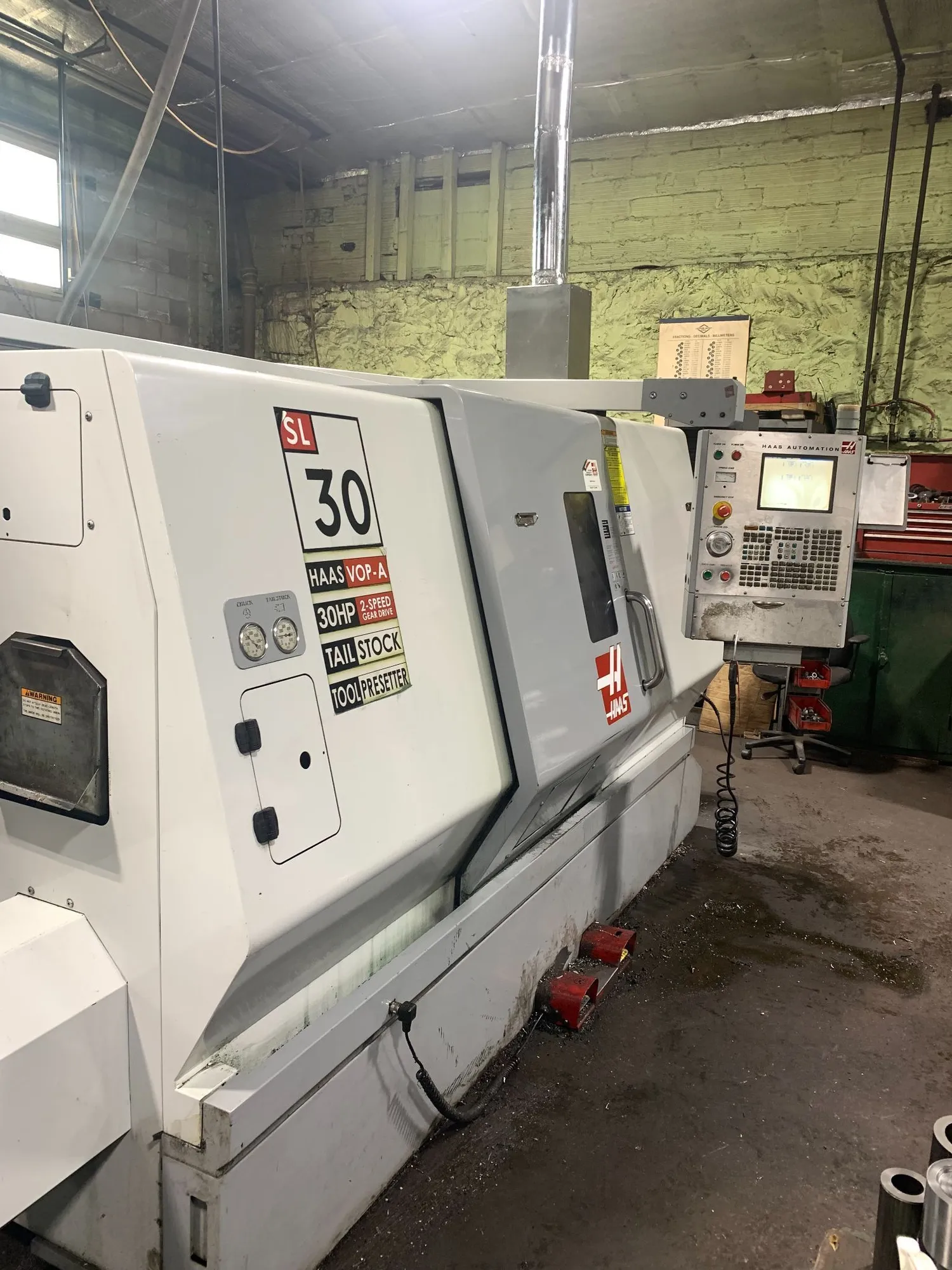

HAAS SL-30T CNC Lathe, 2005. Features 30" swing, 32" machining length, 10" chuck, 3" bar capacity, 30 HP, 3400 RPM max, 17" turning diameter, and tailstock. Ideal for precise machining tasks. Used condition.
| Swing | 30" | 762 mm |
| Machining Length | 26" | 660.4 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,400 RPM | 3,400 RPM |
| Turning Dia | 21" | 533.4 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC | CNC |
| Dimensions | 171 x 90 x 98 | 171 x 90 x 98 |
| Weight | 14300 | 14300 |
X Axis: 12.5″
Z Axis: 26″
Max Swing Over Bed: 30″
Max Turning Diameter: 21″
Max Turning Length: 26″
Distance Between Centers: 39″
Chuck Size: 10″
Bar Capacity: 3″
Spindle Bore: 3.5″
Max Spindle Speed: 3,400 RPM
Spindle Motor Power: 30 HP
Turret Tool Capacity: 12 Tools
Rapid Traverse Rate (X & Z): 945 IPM
Machine Dimensions (L × W × H): 171″ × 90″ × 98″
Machine Weight: 14,300 Lbs
Haas Classic CNC Control
Tailstock
Chip Conveyor
All Available Manuals
