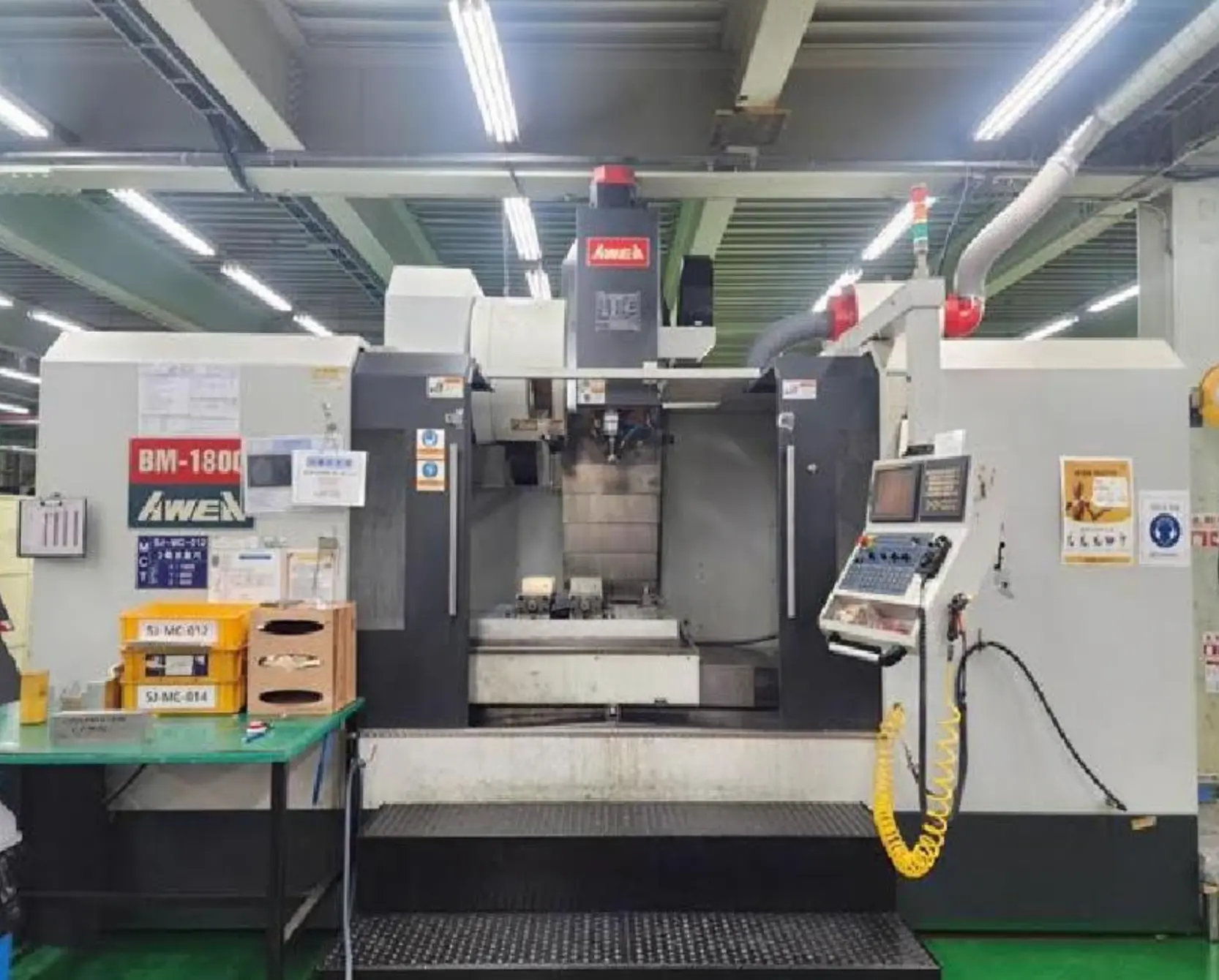

Used vertical machining center with Fanuc 0i-MB control. Features 5-axis, 24 ATC, BT-40 taper, and 15000 RPM spindle. X/Y/Z: 1798/800/800 mm. Table: 2000x800 mm, 2200 kg load.
| X | 1,798 mm | 70.787" |
| Y | 800 mm | 31.496" |
| Z | 800 mm | 31.496" |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 24 | 24 |
| Taper | BT-40 | BT-40 |
| # Axis | 5 | 5 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
Table size: 2000 x 800 mm
Table Load Capacity: 2,200 kg
Stroke (X,Y,Z): 1798 x 800 x 800 mm
Spindle speed: 15000 rpm
BT40
ATC: 24
5-Axis
Control: Fanuc 0i-MB
