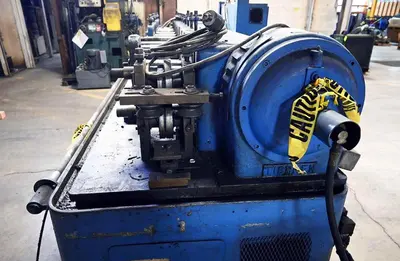

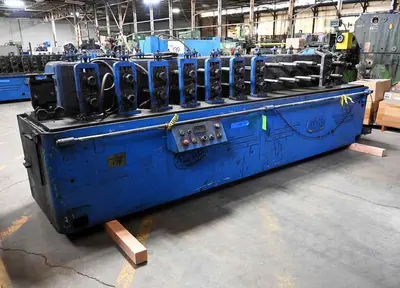

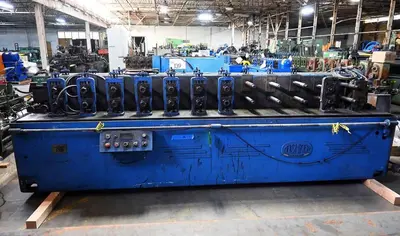

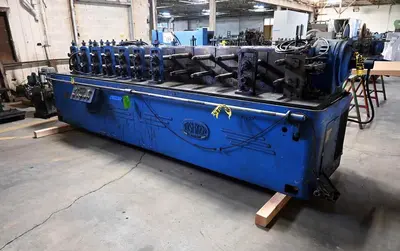

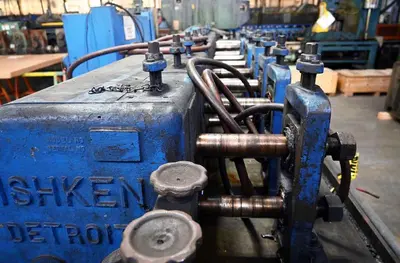

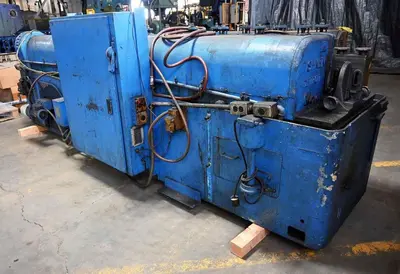

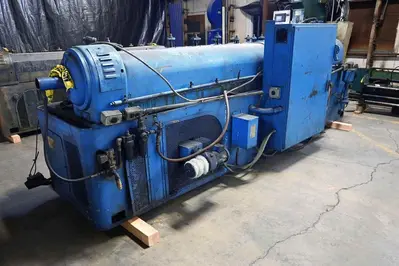

USED TISHKEN 12-MW-2

The Tishken #12-MW-2 Rollformer is a robust piece of machinery designed for precision and efficient roll forming operations. It features 12 passes and runs in a right-to-left line direction, suitable for various industrial applications. This rollformer is set with a 2-inch spindle diameter and an 8-inch roll space, providing adequate capacity for diverse operations. The horizontal centers measure 12 inches, with a vertical adjustment capability of 1 inch, ensuring flexibility in setup. Moreover, the spindle incorporates a 0.375-inch key size and is engineered with equal gearing for consistent performance.
Equipped with a powerful 20 HP DC motor, this rollformer is tailored for high production efficiency. The machine is also outfitted with a user-friendly push button control and an electric panel for streamlined operation. Additionally, it includes an entry guide to assist materials as they enter the processing area. However, please note that four outboard stands are missing, which may need consideration based on specific operational requirements.
With a base top to center lower spindle measurement of 5 inches, this Tishken model is engineered to handle demanding tasks while maintaining precise accuracy and reliability. Ideal for businesses seeking a dependable and productive solution for roll forming, this equipment combines robust construction with practical features.
20 HP DC Motor

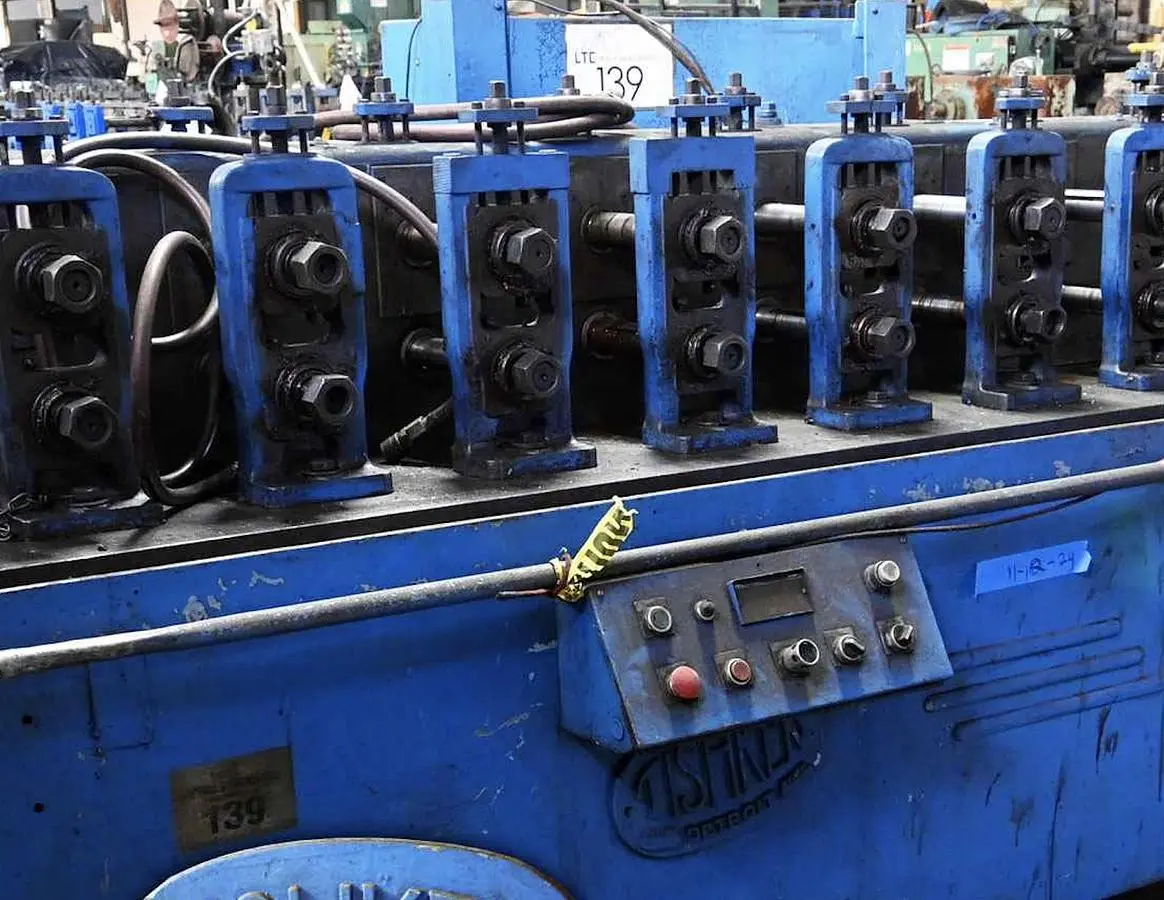

Push Button Control
Electric Panel
Entry Guide
Note: Missing 4 Outboard Stands
