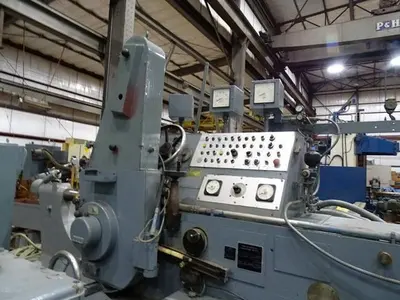

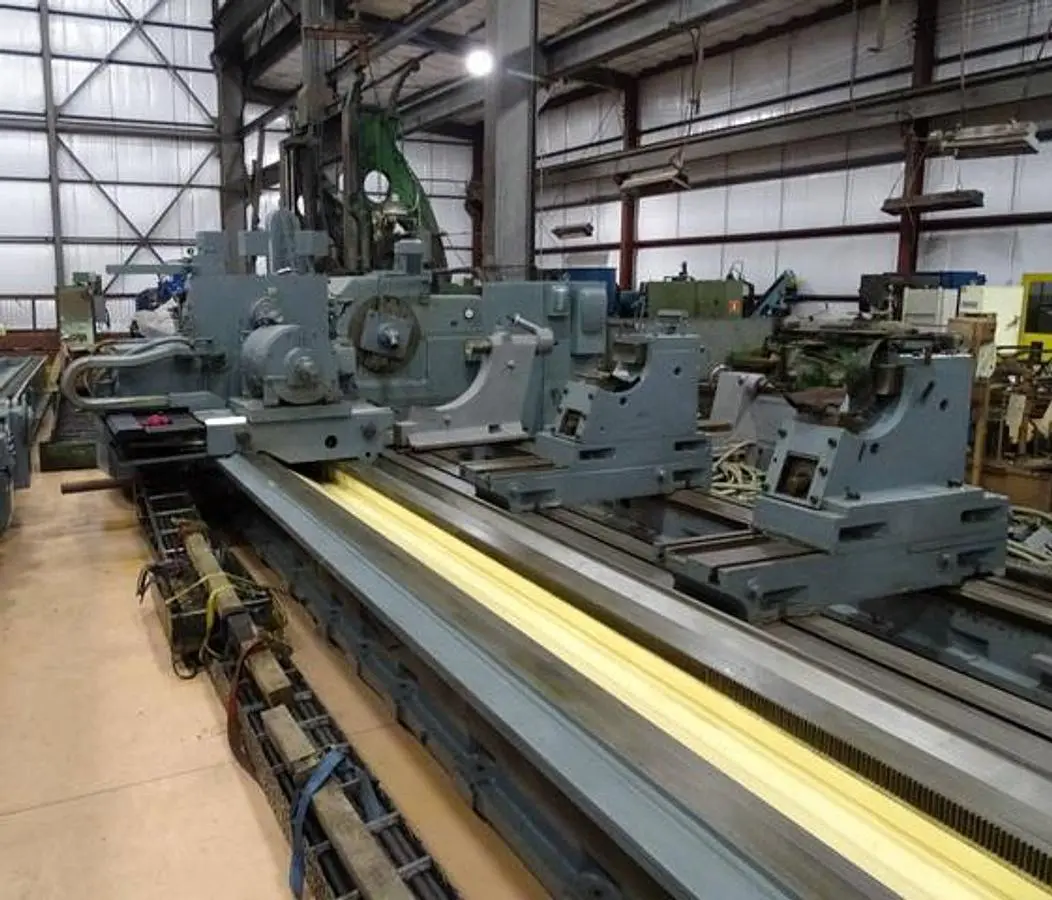

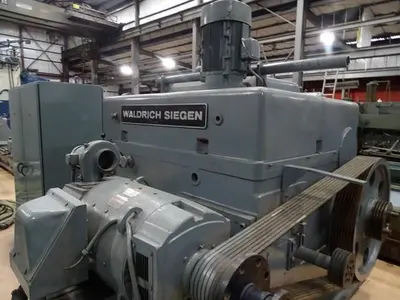

USED 1981 WALDRICH SIEGEN WST IV H80 X 12000

Manufacturer: Waldrich Siegen
Model: WST IV H80 x 12000
Year: 1981
Installed: 1982
Maximum Grinding Diameter: 78" (1,981.2 mm)
Distance Between Centers: 472.4" (12,000 mm)
Maximum Workpiece Weight: 176,000 Lbs. (80,000 kg)
Grinding Wheel:
Maximum Wheel Width: 4" (100 mm)
Maximum Wheel OD: 32" (812.8 mm)
Wheel ID: 12" (305 mm)
Wheelhead Angle: 90° to Workpiece Axis
Wheel Spindle Power: 27 - 59/59 HP (20 - 44/44 kW)
Wheel Spindle Speed: 450 - 1,800 RPM, Infinitely Variable
Wheel Dresser: Bed-Mounted Roll
Wheelhead:
Cross Travel: 25.6" (650 mm)
Longitudinal Travel: 488.4" (12,405 mm)
Speed: 157.5 in/min (4,000 mm/min)
Workhead:
Power: 1.9 - 59/59 HP (1.4 - 44/44 kW)
Speed: .5 - 300 RPM
Camber / Crowning:
Table Setting for Camber / Convex: .0005 - .292 mm
Table Setting for Camber / Convex / Concave: .0004 - .1024 mm
Table Setting for Camber Based on Radius: .0039 - .1496
Steady Rest Diameter Range: 7.88" - 20" (200 - 510 mm)
Steady Rest Cross Adjustment: 23.6" (600 mm)
Overall Dimensions:
Length: 732" (18,600 mm)
Width: 219" (5,570 mm)
Height: 91" (2,320 mm)
Machine Weight: 134,000 Lbs. (60,800 kg)
Coolant System
Combination (2) Cartridge and Fabric Filtration System
Full Hydrostatic Cast Iron Ways
Metal Telescopic Way Covers
Waldrich Siegen 4" (100 mm) Wide Roll Belt Grinding Attachment
Roll Cambering / Crowning
(2) 2-Jaw Steady Rests
