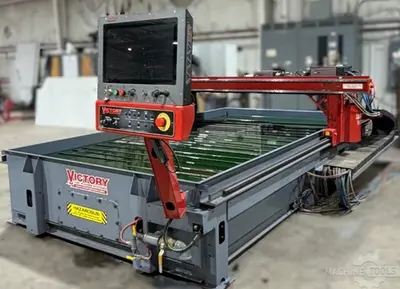

USED VICTORY V610WU

Brand – VICTORY CNC PLASMA SYSTEMS Model – V610WU Type – Plasma Cutters Year – 2021 Condition – Used – Excellent

Cut-Width: 6′
Cut-Length: 10′
Plasma Power: 300 a
# Plasma Torches: 1
Model V610WU cut bed supports 100 lbs/ft² (actual system footprint 8′ x 14′) Cutting area is 12″ wider and 12″ longer than plate size Single-phase 240V power, standard 20-amp circuit required 3/16″ A-36 steel formed water table Work table built on W4x13 structural steel frame with adjustable water levels 3/16″ x 4″ material positioning slats on 6″ centers in removable slat-slag trays Work table-mounted precision T-rails on rail axis with 2.5″ rollers Dual 25 mm linear guides on cross axis Precision steel bridge with rail scrapers and dual linear cross-axis guide rails Dual-side drive system with 400W rail axis and 1 × 400W cross-axis Yaskawa AC EtherCAT servo motors with encoders Direct-drive planetary gearboxes with helical gears and 25 mm gear racks Pre-tensioning on all drives Position accuracy ±0.002″ over 6 sq ft Bonded and grounded electrical system Three emergency stops Fully enclosed cable carriers Hypertherm XPR300 Plasma System Mild Steel: Production cut 1.2″, max pierce 2″, edge start 3.1″ Stainless Steel: Production cut 1.5″, edge start 3″ Quick-disconnect torch receptacle and torch head

Model V610WU Cut Bed supports 100 lbs/ft² (actual system footprint 8′ x 14′) Cutting area is 12″ wider and 12″ longer than plate size Single-phase 240V power, standard 20-amp circuit required 3/16″ A-36 steel formed water table Work table built on W4x13 structural steel frame with adjustable water levels 3/16″ x 4″ material positioning slats on 6″ centers in removable slat-slag trays Work table-mounted precision T-rails on rail axis with 2.5″ rollers Dual 25 mm linear guides on cross axis Precision steel bridge with rail scrapers and dual linear cross-axis guide rails Dual-side drive: 400W rail axis and 1 × 400W cross-axis Yaskawa AC EtherCAT servos with encoders Direct-drive planetary gearboxes with helical gears and 25 mm gear racks Pre-tensioning on all drives Position accuracy ±0.002″ over 6 sq ft Bonded and grounded electrical system Three emergency stops Fully enclosed cable carriers Hypertherm X-Definition XPR300 Plasma Power Source Mild Steel: Production cut 1.2″, max pierce 2″, edge start 3.1″ Stainless Steel: Production cut 1.5″, edge start 3″ Quick-disconnect torch receptacle and head Starter package of mild steel consumables 3-phase 480V, 91 amps (110-amp slow-blow fuse required) Hypertherm VWI automatic gas console and water filter Hypertherm XPR plasma marking without tool change Hypertherm EDGE Connect TC CNC Controller 19.5″ touchscreen Quad-core processor 120 GB SSD 4 GB RAM Wi-Fi and USB access Real-time monitoring Hypertherm Phoenix cutting software with introductory ProNest and True Hole CNC DXF-to-G-code conversion with selectable cut order Shape library with 64 pre-drawn shapes requiring only dimensions Hypertherm ProNest Office PC True Hole Advanced XPR post processor True shape nesting and pattern array Collision avoidance First-year software subscription prepaid Optional renewal approximately $1,490 per year Hypertherm CAM provides all ProNest training online Hypertherm integrated automatic torch height control Integrated lifter, laser locator, torch breakaway, and collision detection Victory remote login for diagnostics Installation and onsite operation and maintenance training Lifetime online technical and operational support for original owner One-year warranty on all parts
