USED 2015 HURCO VMX60SRTI

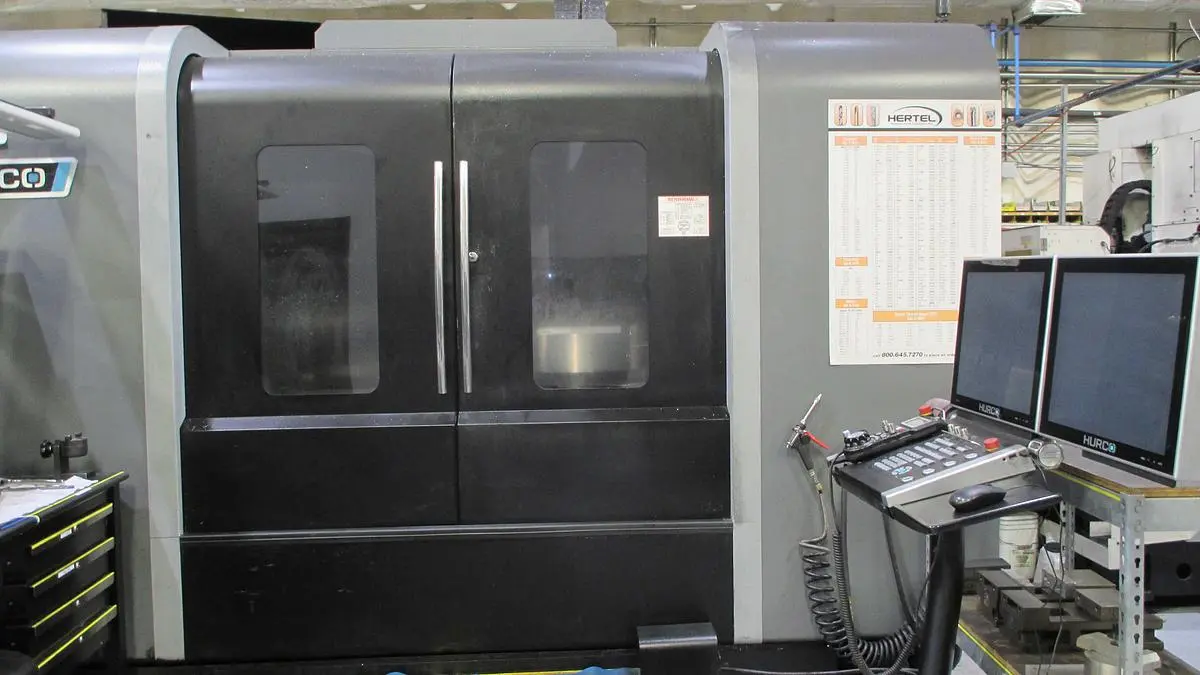

The Hurco VMX60SRTi is a robust used vertical machining center designed for precision and efficiency with its 5-axis capabilities. It features a swivel head and rotary table, allowing for intricate and complex machining processes. With an X, Y, Z travel of 60" x 26" x 24", it accommodates a wide range of tasks on its 66" x 26" table. The rotary table has a diameter of 23.6" and can support loads up to 1,100 lbs, while the main table can carry up to 3,000 lbs.

Equipped with a powerful 48 HP spindle capable of rotating at speeds up to 12,000 RPM and featuring a 40-taper design, this machine is built for high performance. It includes a 40-tool automatic tool changer, enhancing productivity by minimizing downtime. The machine's footprint measures 223" x 154", and it weighs approximately 23,950 lbs.

This model also boasts advanced features, such as a spindle chiller, lift-up chip conveyor, enclosure wash down system, and dual LED work lights. It supports 208-230V three-phase power and includes accessories like an air gun, rigid tapping, and Renishaw spindle and tool probes for precise measurement. Overall, the Hurco VMX60SRTi offers a sophisticated blend of power and technology ideal for demanding machining applications.

Manufacturer: Hurco
Model: VMX60SRTi
Year: 2015
Condition: Used
Serial Number: SX44T-1600165BDEAH
Stock Number: 17843
Table Length: 66"
Table width: 26"
Table Load Capacity: 3000 lbs
Rotary Table Diameter: 23.6"
Rotary Table Load Capacity: 1,100 lbs
X-Travel: 60"
Y-Travel: 26"
Z-Travel: 24"
Spindle Speed: 12,000
Spindle Taper: 40
Spindle Motor: 48 HP
ATC: 40 Tools
Machine Foot Print: 223" X 154"
Machine Weight: 130"
Machine Height: 23,950 lbs
Equipped With: 208-230V 3 phase, Spindle chiller, Lift-up chip conveyor, Enclosure wash down system, Dual LED work lights, Air gun, 2GB RAM, Rigid tapping, Renishaw RPM 60 spindle probe and RTS tool probe, Centerline probing package including sphere.

208-230V 3 phase, Spindle chiller, Lift-up chip conveyor, Enclosure wash down system, Dual LED work lights, Air gun, 2GB RAM, Rigid tapping, Renishaw RPM 60 spindle probe and RTS tool probe, Centerline probing package including sphere.
