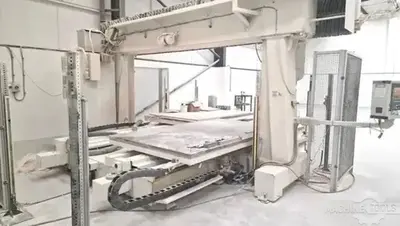

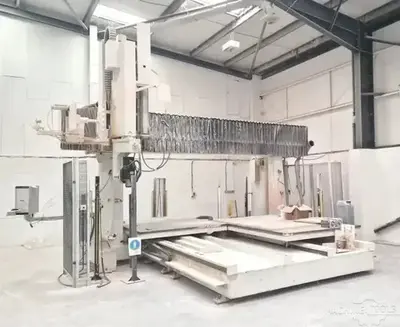

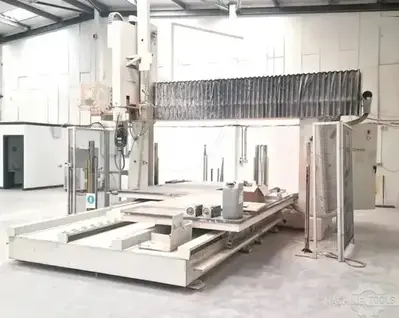

USED 2009 QUINTAX Q5H

5 Axis CNC Router

Request a Quote
Add to Cart
Table Width: 72"
Table Length: 120"
Number of Axis: 5 Axis
Number of Tables: (2) Two
Longitudinal: 173.2" (4400 mm)
Y-Travel: 149.6" (3800 mm - Cross)
Z-Travel: 59.1" (1500 mm - Vertical/Limitation Under the Cross Rail)
C-Travel: +/- 360"
B-Travel: +/- 120"

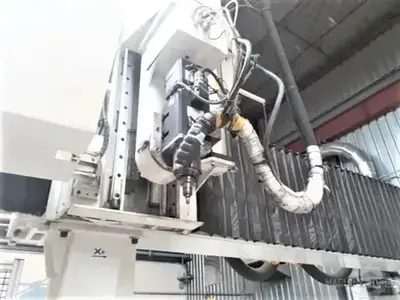

Spindle: 30 kW 40HP HSK 63F Tool Change Style Spindle / Liquid Cooled / Air Clamping Including

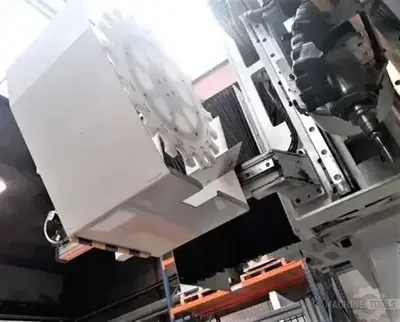

Automatic Tool Changer: 20-Station Automatic Rotary Carousel Tool Changer

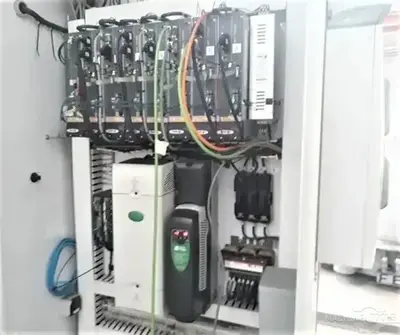

Spindle Drive: AC Variable Speed Inverter Drive for Spindle

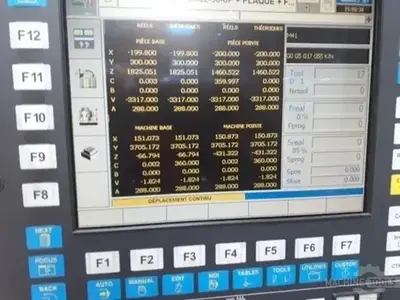

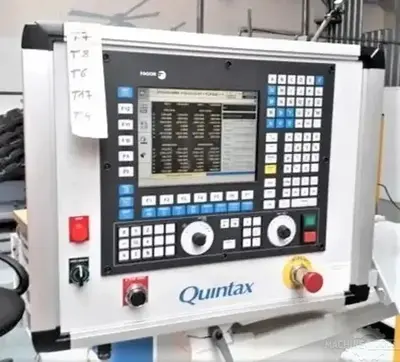

Control: Fagor 8070
15 KW 20 HP BagHouse Rated 170 M/3 Minute at 254 mm Water Gauge (Includes Hoses and Controls): Catia 5 Postprocessor
Central Lube System with Low-Level Switch: Chiller Package

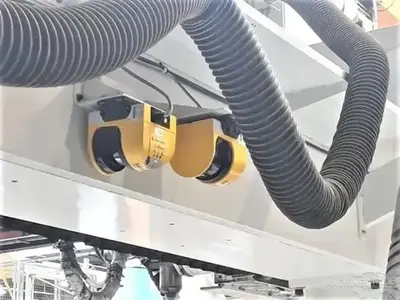

Continuous C-Axis: Dust Collection Nozzle / Hoses for 5-Axis
Hand-held Teach Pendant: Perimeter Light Curtain System
Renishaw MP-10 Optical Probe and Software
