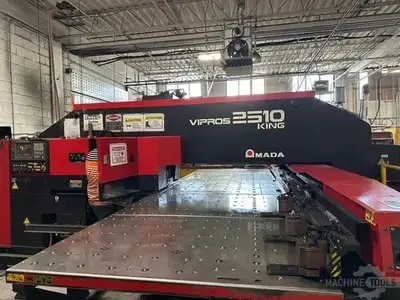

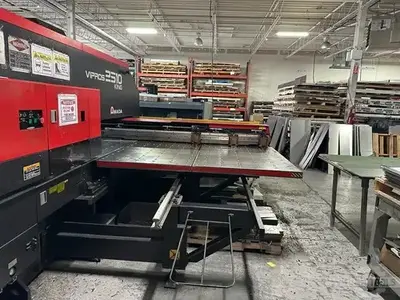

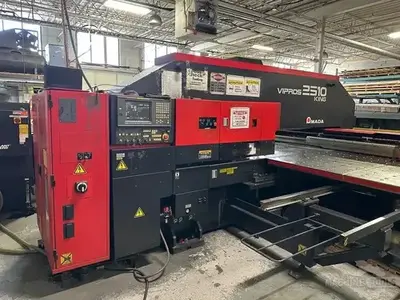

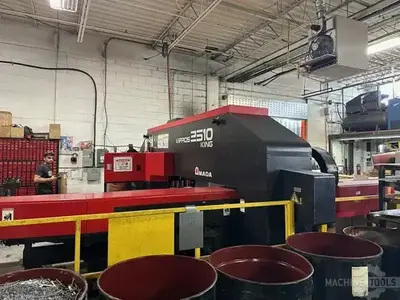

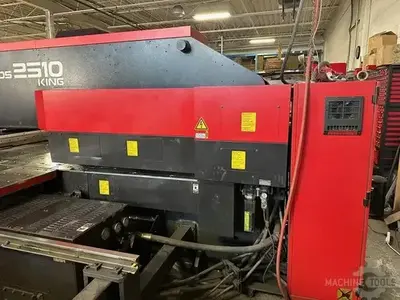

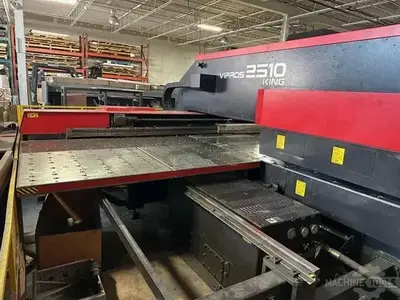

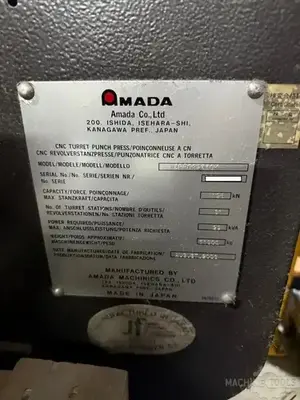

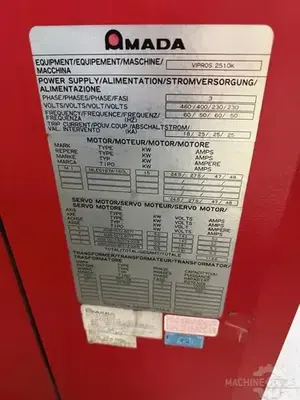

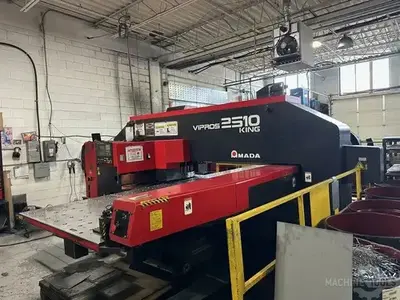

USED 2003 AMADA VIPROS 2510 KING

22 Ton Turret Punch

Request a Quote
Add to Cart
Capacity: 22 Ton
Sheet Width: 4'
Sheet Length: 8'
Turret Stations: 31 With 3 Auto Indexing
X-Axis Travel: 50"
Y-Axis Travel: 98.4"
Throat Depth: 50"
Tooling Style: Thick Turret

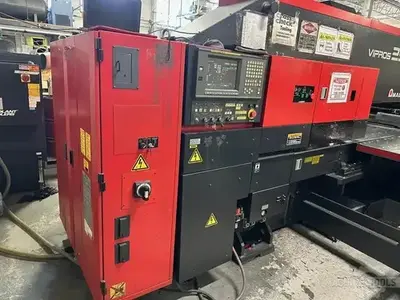

Control: Fanuc 18P (with PHNC)
Press Stroke: 1.575"
Maximum Sheet Size: 50.0" (Y) x 196.0" (X) w/ Auto-Repo
Maximum Sheet Thickness: 0.135"
Maximum Material Weight: 110 lbs
Max. Linear Table Speed: 3,937 IPM (X), 3,149 IPM (Y)
Punching Accuracy: 0.0027″ (Standard), 0.002″ (High Accuracy Mode)
Positioning Accuracy: 0.0039"
Repeatability: 0.0006″
Maximum Hole Diameter: 3.5″
Turret Rotation Speed: 35 RPM
