Buy Used 940 Gallon MSM Storage Tank – Vertical Vessel with Center Drain

Manufacturer: MSM (Mid-South Maintenance)
Type: Vertical Process / Pressure Tank
Condition: Used

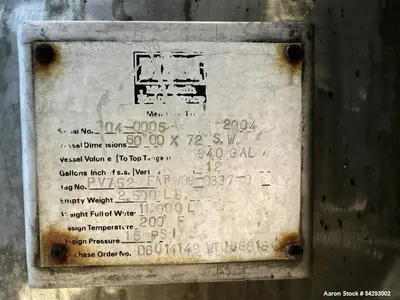

Serial Number: 304-0005

Description

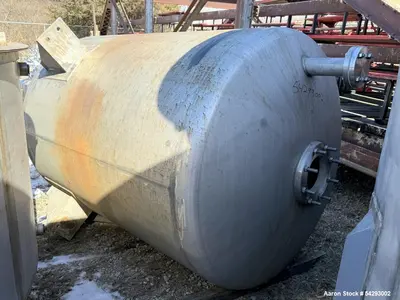

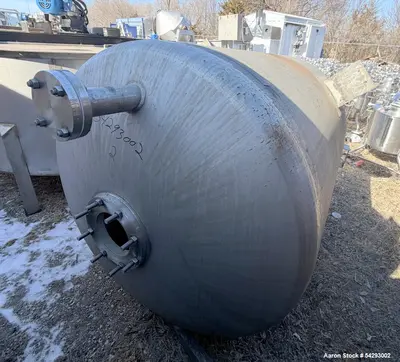

Used MSM (Mid-South Maintenance) 940 Gallon Vertical Tank, designed for pressurized liquid processing and storage applications. This vessel is internally rated to 15 PSI at 200°F, making it suitable for moderate pressure and temperature processes.
The tank features a dished top and bottom, providing structural strength and improved drainage characteristics. Equipped with a large 18" top manway (no cover) and multiple top and bottom nozzles, this unit offers excellent flexibility for process connections, instrumentation, and material handling.
A center bottom outlet (8") and additional 3" outlet provide efficient discharge capability. The tank is side lug mounted, allowing for secure installation in industrial processing environments.

Specifications

Manufacturer: MSM (Mid-South Maintenance)

Machine Type: Vertical Tank / Process Vessel

Capacity: Approx. 940 gallons

Condition: Used

Serial Number: 304-0005

Vessel Rating

Internal Pressure Rating: 15 PSI

Temperature Rating: Up to 200°F

Dimensions

Diameter: Approx. 60 inches

Straight Side Height: Approx. 72 inches

Orientation: Vertical

Design Features

Dished top
Dished bottom
Side lug mounted

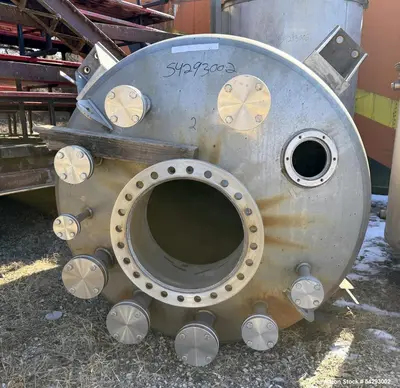

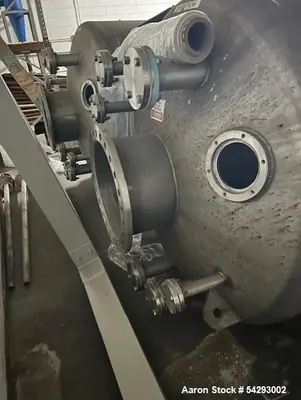

Openings & Connections
Top:

18" manway (no cover)
(4) 3" nozzles
(3) 2" nozzles
(1) 1.5" nozzle
(1) 1" nozzle

Bottom:

(1) 8" center bottom outlet
(1) 3" outlet

Applications

Chemical processing
Liquid storage under pressure
Food and beverage processing
Industrial liquid handling
Pharmaceutical processing
Batch processing
Mixing and blending systems
Process surge tanks
Heated or pressurized systems
Utility liquid storage

What might this be used for

Storing liquids under moderate pressure
Supporting batch or continuous processes
Connecting multiple process lines via nozzles
Handling heated liquids up to 200°F
Integrating instrumentation and controls
Allowing easy access via large manway
Efficient draining through bottom outlets
Acting as a process buffer or surge tank
Supporting chemical or food-grade operations
Handling pressurized process fluids

Products this machine would be used for

Chemical solutions
Process liquids
Food-grade liquids
Water and utility fluids
Pharmaceutical liquids
Cleaning solutions
Industrial fluids
Liquid additives
Process intermediates
Heated liquids
