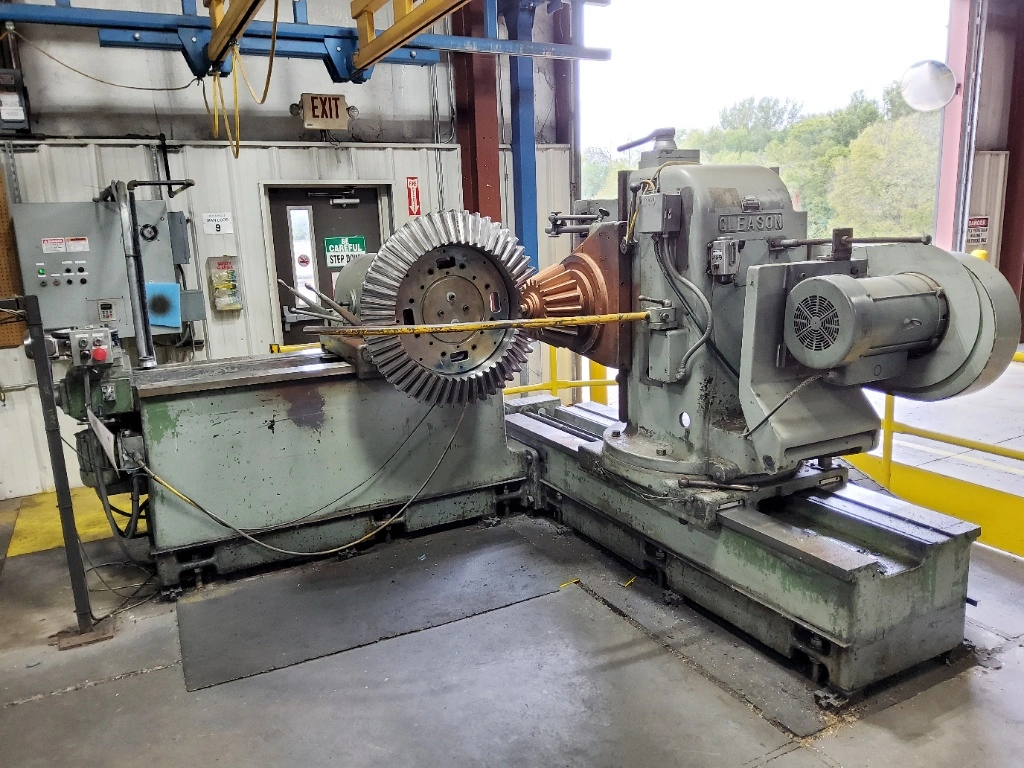

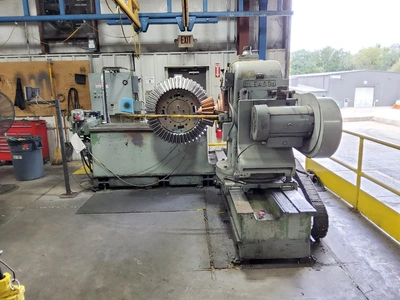

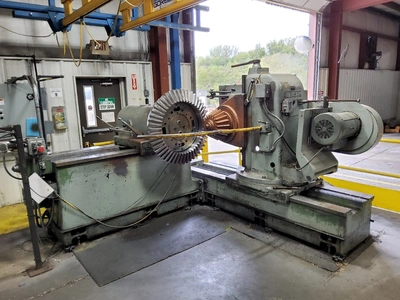

USED GLEASON 61
Overview
The No. 61 Angular Hypoid Tester is designed to test large bevel and hypoid gears up to 90" diameter and with shaft angles from 0 - 135 degrees. Spur, helical and internal gears can also be accommodated.
The drive or pinion spindle can be rotated in either direction at a recommended spindle speed of 600 RPM. It is mounted in a head which is vertically adjustable on a column, so that the spindle can be offset either above or below the center line of the gear spindle for testing hypoid gears. The pinion head column is adjustable angularly in a horizontal plane to permit testing of gears of any shaft angle from 0 - 135 degrees.
Specs
Specifications:
Centerline of Drive Spindle to Nose of Brake Spindle
(90 degrees shaft angle and without face plate): 38-1/2" Max. / 7-5/8" Min.
Centerline of Brake Spindle to Nose of Drive Spindle
(90 degrees shaft angle and without face plate): 60" Max. / 10" Min.
Centerline of Brake Spindle to Nose of Drive Spindle
(90 degrees shaft angle and with 54" face plate): 60" Max. / 28" Min.
Centerline of Brake Spindle to Centerline of Drive Spindle
(For Spur Gears): 56" Max. / 6" Min.
Distance Between Nose of Brake Spindle and Nose of
Drive Spindle (for spur gears): 36-1/2" Max. / 0" Min.
Offset of Drive Spindle Either Above or Below Centerline of Brake Spindle: 10"
Range of Shaft Angles: 0 - 360 Degrees
Maximum Diameter of Gear: 90"
Diameter of Face Plate: 54"
Outboard Bearing: 3" Diameter Hole
Spindles:
RPM of Drive Spindle Pulley Set No. 1: 100 - 400
RPM of Drive Spindle Pulley Set No. 2: 250 - 600
Diameter of Taper Hole (large end): 6"
Taper Per Foot: 3/4"
Depth of Taper: 8"
Hole Through Spindle: 5-1/2"
Net Weight of Machine: 20,000#
Net Weight of Machine W/Outboard Support and Bed Plate: 24,000#
