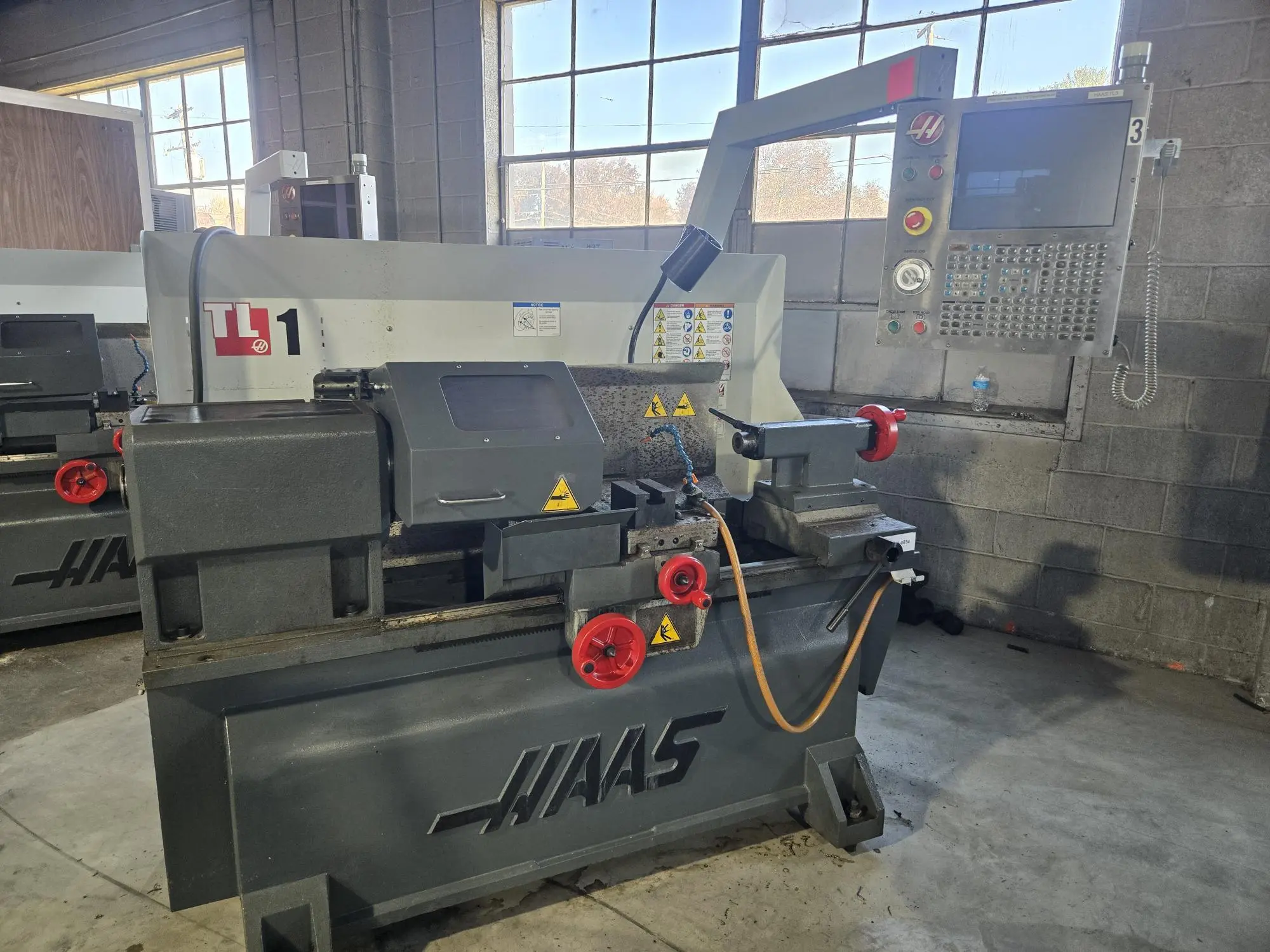

HAAS TL-1 CNC Lathe, 2010 model, in used condition. Features a 20" swing, 762mm machining length, 8" chuck, and 12 HP power. Max RPM of 2000, with a 16" turning diameter—ideal for precision machining tasks.
| Swing | 16" | 406.4 mm |
| Machining Length | 762 mm | 30" |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.25" | 57.15 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 1,800 RPM | 1,800 RPM |
| Turning Dia | 16" | 406.4 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Haas CNC Control) | CNC (Haas CNC Control) |
| Dimensions | 78" × 55" | 78" × 55" |
| Weight | 4500 lbs | 4500 lbs |
Power Requirement: 220V/3 phase
Spindle Motor Power: 10hp
Spindle Speed: 1,800 rpm
Spindle Nose: A2-5 S
Spindle Bore: 2.5"
Bar Capacity: 2.25″
X-Axis Travel: 8"
Z-Axis Travel: 30"
Maximum Cutting Diameter: 16"
Maximum Swing: 16"
Chuck Size: 8"
Machine Dimensions: 78" × 55"
Machine Weight: 4,500 lbs
Equipped With:
Haas CNC Control
8″ Chuck
Tailstock
Chuck Cover
Coolant Pump Kit
Memory Lock Switch
USB Port
15" Color LCD
1 MB of Memory
Intuitive Programming System
