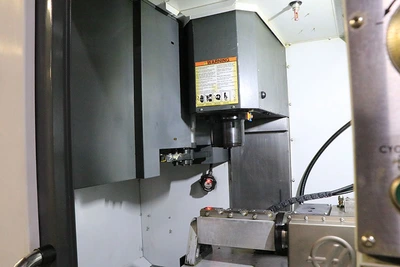

USED 2013 Haas DT-1 w/Midaco Pallet Changer & HRT Rotary Tbls
Overview
Description
20" X Axis 16" Y Axis Haas DT-1 w/Midaco Pallet Changer & HRT Rotary Tbls VERTICAL MACHINING CENTER, Haas Cntrl, Midaco Pallet Changer,HRT Rotary Tbls,
Specifications
HAAS CNC DRILL TAP/MILL CENTER

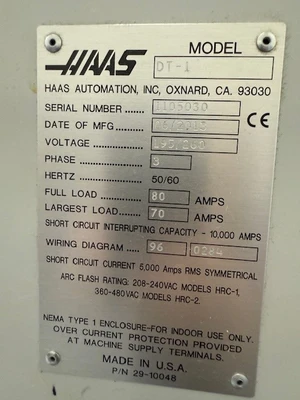

MODEL: DT-1, S/N: 1105030, NEW: 2013
SPECIFICATIONS:
X-AXIS TRAVEL.......................... 20" / 508mm
Y-AXIS TRAVEL.......................... 16" / 406mm
Z-AXIS TRAVEL.......................... 15.5" / 394mm
TABLE SIZE............................. 26" X 15"
MAX WEIGHT ON TABLE.................... 250 LBS
SPINDLE SPEED.......................... 12,000 RPM
SPINDLE MOTOR.......................... 15 HP
MAX TAPPING SPEED...................... 5,000 RPM
MAX RAPIDS............................. 2,400 IPM
MAX CUTTING............................ 1,200 IPM
TOOL CHANGER CAPACITY.................. 20 + 1
SPINDLE TAPER.......................... BT-30
MACHINE SIZE: 107" W, 124" L WITH COOLANT TANK, 103" TALL
EQUIPPED WITH:

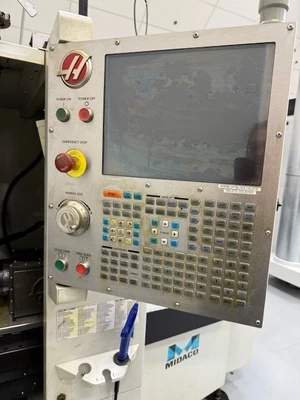

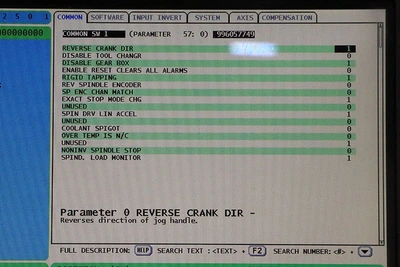

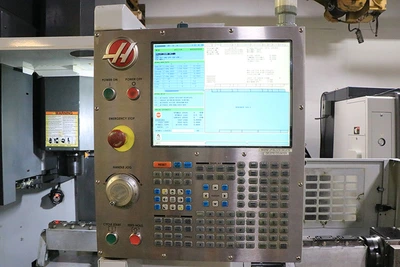

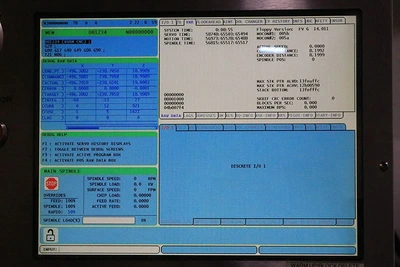

* HAAS CNC CONTROL
ROTATION & SCALING, DNC, QUICK CODE, MACROS,
INTUITIVE PROGRAMMING, ADVANCED TOOL MGMT,
SPINDLE LOAD METER
* RIGID TAPPING
* USB PORT
* (WIPS) WIRELESS INTUITIVE PROGRAMMING SYSTEM
(PROBE TOOL & TOUCH SETTER REQUIRED)

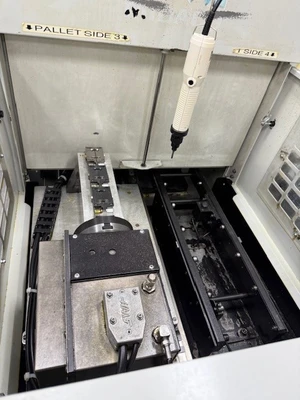

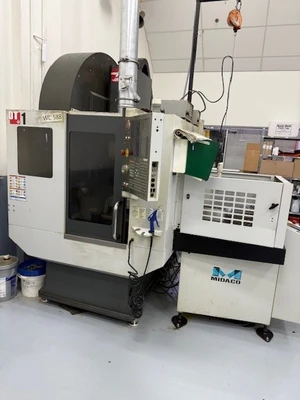

* MIDACO MODEL: ADT-1SD PROGRAMMABLE DUAL PALLET CHANGER
PALLET SIZE 22" x 15"

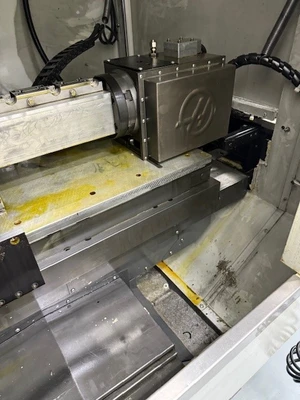

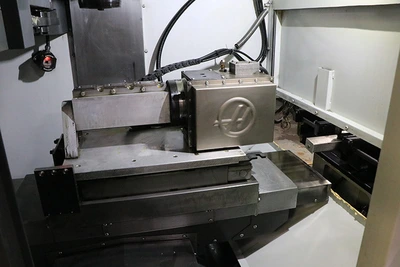

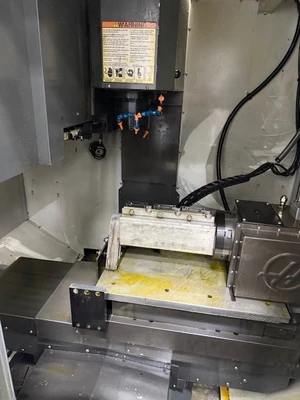

* HAAS MODEL: HRT 160SP ROTARY TABLES
w/ HAAS INDEPENDENT ROTARY CONTROLS

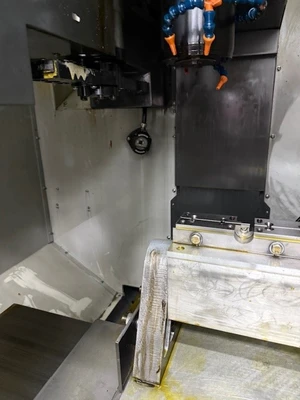

* TOOLING BLOCK SYSTEM w/ A-FRAME SUPPORT & MOUNTING BLOCK
* FIRE SUPRESION SYSTEM
* COOLANT SYSTEMS
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
FOR MORE INFORMATION: Call David at 973-497-7570
