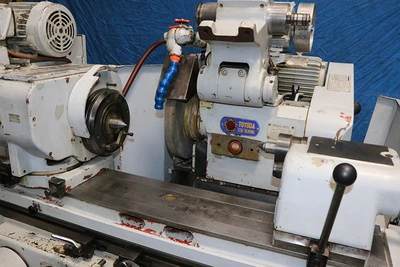

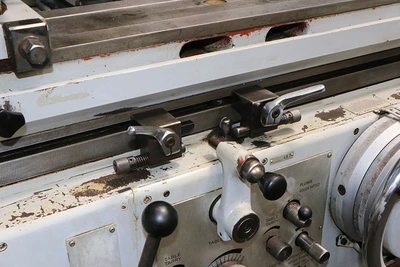

USED 1986 Toyoda GUP32X50, 1986, SWING DOWN ID., FULL AUTO CYCLE

12.6" Swing 20" Centers Toyoda GUP32X50, 1986, SWING DOWN ID., FULL AUTO CYCLE OD GRINDER, HYD. TABLE, AUTO INFEED, PLUNGE, RAPID, SPKT TIMER

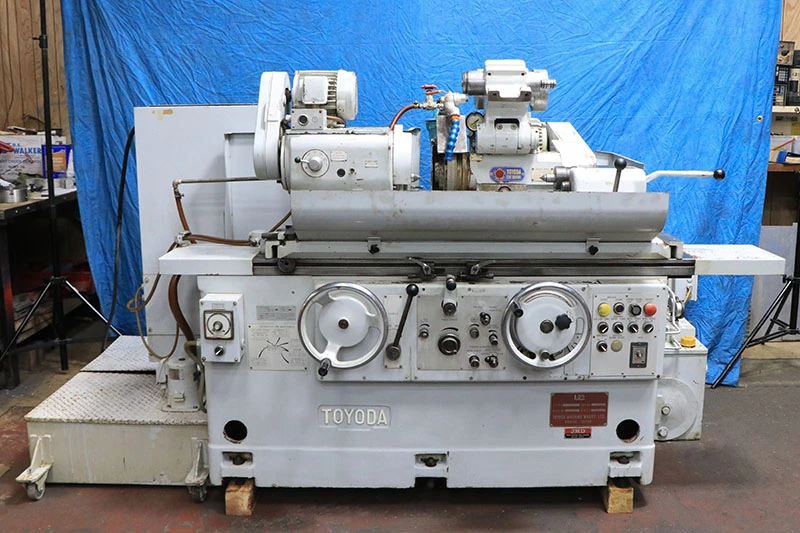

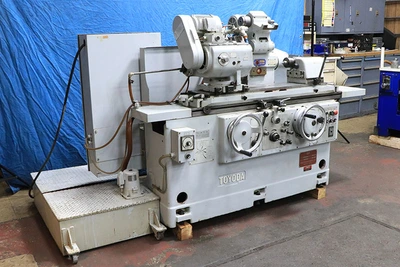

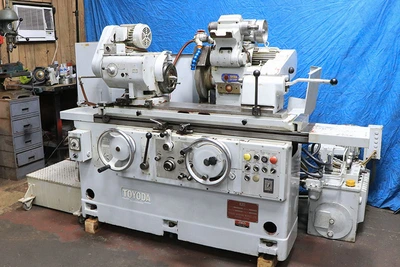

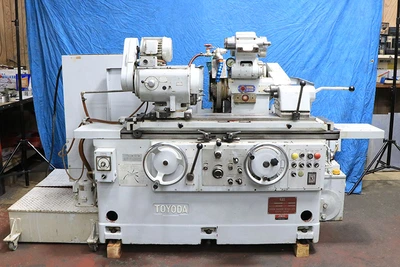

12.6" X 20" TOYODA UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

** THIS IS A HIGH-PRECISION JAPANESE MADE MACHINE TOOL! **

MODEL:GUP32X50      S/N: RB8635      NEW: 1986

MAX. SWING OVER TABLE ................. 12.6"

DISTANCE BETWEEN CENTERS .............. 20"

MAX. LOAD BETWEEN CENTERS ............. 330 LBS.

TABLE:

TABLE SWIVELS, COUNTERCLOCKWISE ....... 12.5 DEG.

LONGITUDINAL TABLE TRAVERSE SPEED ..... 2" TO 157" IPM

WHEELHEAD:

WHEELHEAD SWIVELS LEFT & RIGHT ........ 30 DEG.

GRINDING WHEEL SIZE ................... 14" X 2" X 5"

WHEEL SPEEDS (2) ...................... 1650/2150 RPM

TOTOL STROKE .......................... 11.6"

HANDWHEEL INFEED STROKE ............... 6.3"

ADDITIONAL STROKE BY SLIDING ON

 SUB-SLIDE BASE ....................... 3.7"

AUTOMATIC RAPID INFEED STROKE ......... 1.6"

AUTOMATIC INFEED AT TABLE REVERSALS ... 0.0001" TO .0016"

AUTOMATIC PLUNGE INFEED ............... YES

AUTO PLUNGE INFEED W/POSITIVE STOP .... 0 TO .0315"

MOVEMENT PER GRAD. OF HANDWHEEL ....... 0.0001"

MOVEMENT PER TURN OF HANDWHEEL ........ 0.040"

WORKHEAD:

WORKHEAD SWIVELS, COUNTERCLOCKWISE .... 90 DEG.

                 CLOCKWISE ............ 30 DEG.

WORKHEAD SPINDLE TAPER ................ #4 MT

WORKHEAD, INFINITELY VARIABLE SPINDLE

 SPEEDS ............................... 16 TO 250 RPM

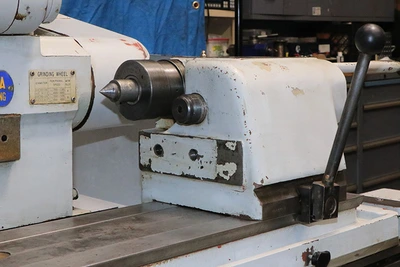

TAILSTOCK SPINDLE CENTER .............. #4 MT

TAILSTOCK QUILL TRAVEL ................ 1"

APPROX. MACHINE WEIGHT ................ 5,060 LBS.

APPROX. MACHINE DIMENSIONS ............ 90" X 64"W x 57"H

MACHINE FEATURES:

TOYODA "STAT" HYDROSTATIC WHEELHEAD BEARINGS

FULLY AUTOMATIC GRINDING CYCLE FEATURING:

 HYDRAULIC TABLE TRAVERSE

 AUTOMATIC INFEED

 AUTOMATIC PLUNGE INFEED

 POWER RAPID WHEELHEAD ADVANCE & RETRACTION            \

 SPARKOUT TIMER

 ADJUSTABLE TABLE TARRY

EXTERNAL HYDRAULIC SYSTEM

DUAL LIVE/DEAD WORKHEAD SPINDLE

ELECTRICAL SYSTEM CONNECTED ON MACHINE (NOT SEPARATE)

MOTORS ARE FOR 3/60/220-440 VOLT ELECTRICS

EQUIPPED WITH:

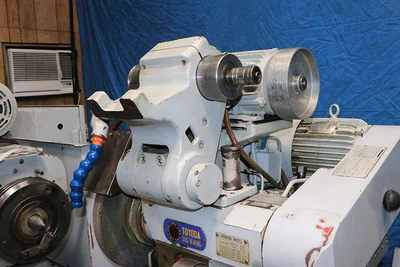

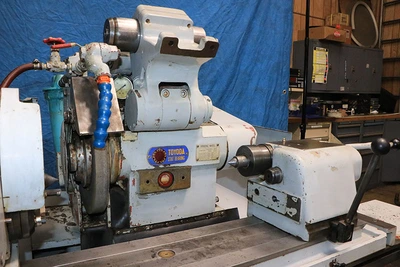

SWING DOWN I.D. GRINDING ATTACHMENT WITH (1) I.D. SPINDLE

TWO-POINT STEADY REST

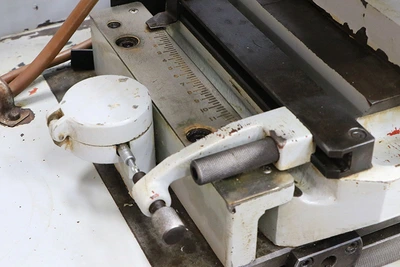

TABLE MOUNTED WHEEL DRESSER

EXTERNAL COOLANT SYSTEM

CENTER IN WORKHEAD

MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS

 Link to video: https://youtu.be/dDJKigcUo0s?si=Df_lTSPKWMiGVSyp

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

** FROM A SHOP THAT DID MOST OF THEIR WORK FOR

    THE OAK RIDGE TN NATIONAL LABORATORY **

** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **

FOR MORE INFORMATION: Call Andy at 973-497-7600
