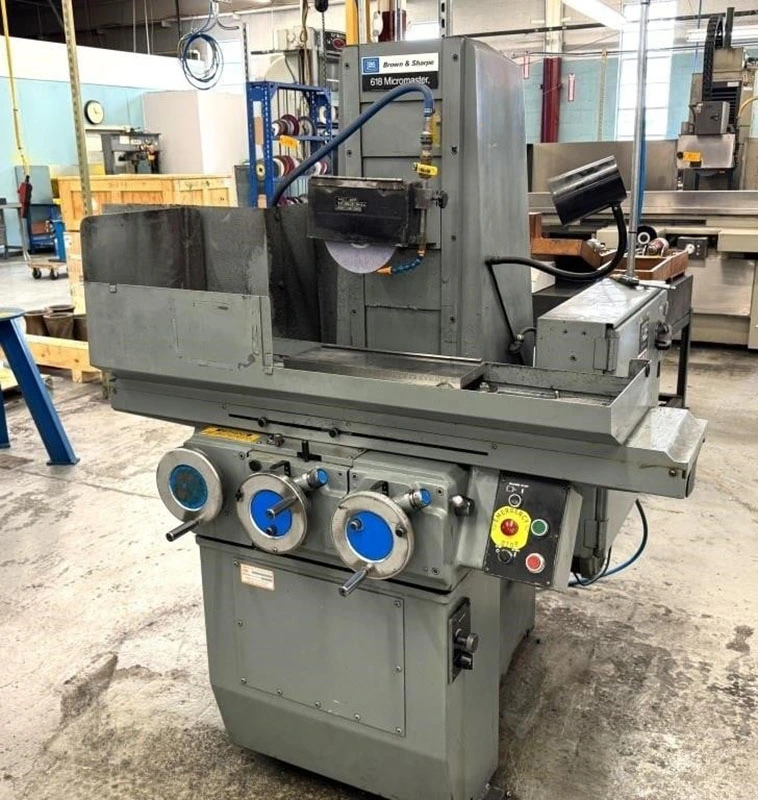

USED 1984 Brown & Sharpe 618 MICROMASTER SERIES II, 1984, 2-AXIS AUTO FEEDS
Overview
Description
6" Width 18" Length Brown & Sharpe 618 MICROMASTER SERIES II, 1984, 2-AXIS AUTO FEEDS SURFACE GRINDER, CHUCK, COOLANT
Specifications
6" x 18" BROWN & SHARPE "#618 MICROMASTER SERIES II"
"MADE IN USA" PRECISION HYDRAULIC SURFACE GRINDER
S/N: 523-6181-9358 NEW: 1984
WIDTH& LENGTH GROUND ................... .. 6" x 18"
HEIGHT OF WORK GROUND W/STD. 7" WHEEL .... .. 15-1/2"
MAXIMUM LONGITUDINAL TRAVEL .............. .. 22"
LONGITUDINAL TABLE SPEED .................... 5 TO 100 FPM
MAXIMUM CROSS TRAVEL ........................ 7"
AUTOCROSSFEED INCREMENT PER TABLE PASS ...... UP TO 1/4"
HANDWHEEL, HAS ADJUSTABLE DIAL GRADUATED
TO READ TO .................................. 0.0002"
FINE-FEED KNOB, ADJACENT TO THE HANDWHEEL ... 0.0001"
VERTICAL TRAVEL OF SPINDLE .................. 15-3/4"
HANDWHEEL HAS ADJUSTABLE DIAL GRADUATED
TO READ TO .................................. 0.0002"
FINE-FEED KNOB, ADJACENT TO THE HANDWHEEL ... 0.0001"
APPROXIMATE MACHINE WEIGHT .................. 3,000 LBS
APPROXIMATE FLOOR SPACE ............... 56"L x 62"D x 68"
EQUIPPED WITH:
HYDRAULIC LONGITUDINAL & CROSS FEEDS
COLUMN DESIGN, COLUMN MOVES FOR CROSS FEED
FINE FEED KNOB FOR BOTH TH CROSS FEED HANDWHEEL
& THE VERTICAL HANDWHEEL, WITH 0.0001" GRADUATION
1.5 H.P. BROWN & SHARPE SUPER-PRECISION
DIRECT DRIVE SPINDLE
6" X 18" FINE-DIVISION PERMANENT-MAGNETIC CHUCK
COOLANT SYSTEM WITH COOLANT TANK & PUMP
SELF-CONTAINED HYDRAULIC SYSTEM
MOTORS ON THE MACHINE ARE 3/60/230-460 VOLTS
MACHINE IS WIRED PRESENTLY FOR 3/60/230 VOLTS, 9 FLA
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
**** ORIGINAL PAINT - VERY CLEAN ****
** EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
FOR MORE INFORMATION: Call Andy at 973-497-7600
