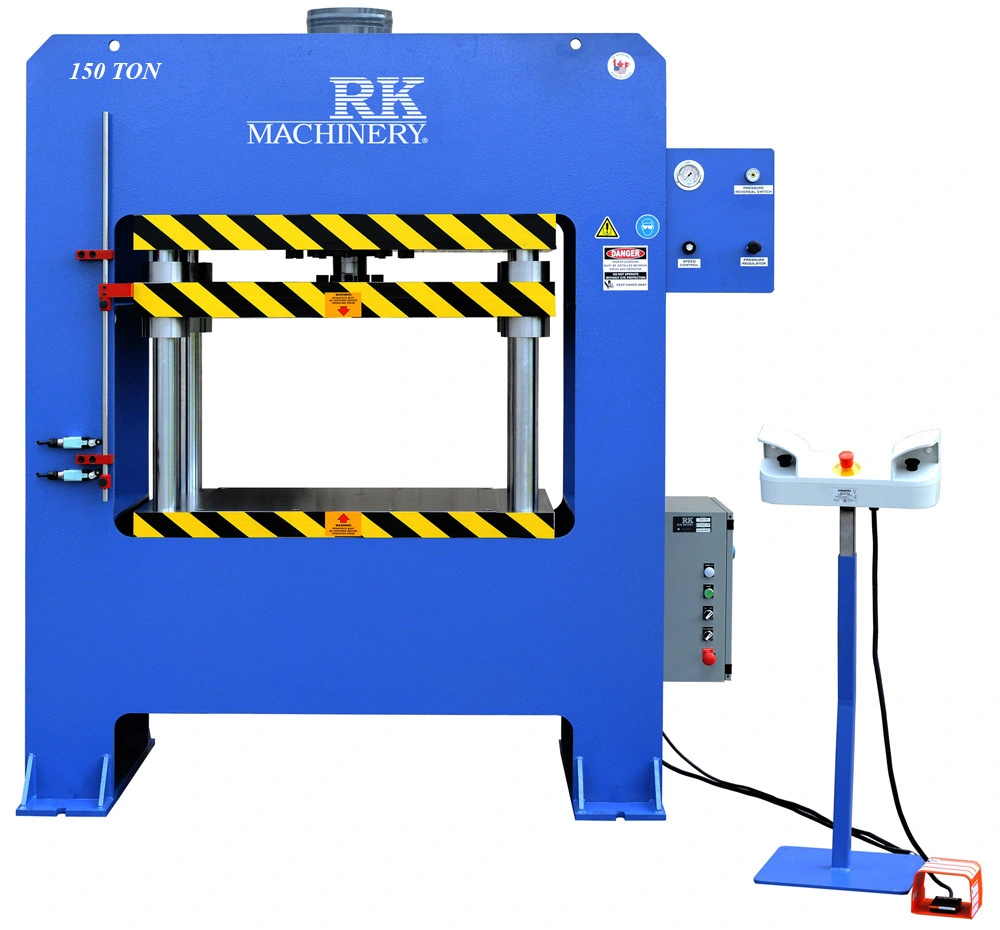

150 Ton 15" Stroke Pressmaster 4PP-150 HYDRAULIC PRESS
150 TON PRESSMASTER HYDRAULIC FOUR-POST PRESS
MODEL 4PP-150
TONS OF FORCE ........................ 150 TONS
RAM SPEED (APPROACH) ................. 80 IPM
(PRESS) .................... 9 IPM
(RETURN) ................... 101 IPM
TABLE ..............(L-R X F-B)....... 48" X 35"
UPPER PLATEN (L-R).................... 48"
UPPER PLATEN (F-B).................... 35"
DAYLIGHT ............................. 28"
STROKE ADJUSTABLE .................... 15"
FLOOR TO TABLE ....................... 30-1/2"
FRONT TO BACK......................... 47-1/2"
HEIGHT (OVERALL)...................... 112.5"
WIDTH ................................ 96"
WEIGHT ............................... 12,800 LBS.
MOTOR HP @ 1760 RPM .. 15 HP 230/460/575 VOLTS, 3 PH, 60 Hz.
STANDARD FEATURES:
- PRESSURE GAUGE
- PRESSURE REGULATOR
- ADJUSTABLE STROKE CONTROL
- PRESSURE REVERSAL SWITCH
- ADJUSTABLE SPEED CONTROL
- AIR COOLED INDUSTRIAL OIL COOLER
- RAM TRAVEL IS GUIDED BY 4 PRECISION-GROUND CHROMED RODS
- JOG MODE USED FOR SIMPLIFYING SETUPS
- DUAL CONTROL WITH YOUR CHOICE OF USING:
(1) MOVEABLE PEDESTAL C/W DUAL ELECTRIC PALM BUTTONS & EMERGENCY STOP OR (2) FOOT PEDAL
- PLC PROGRAMMABLE CONTROL SYSTEM
- 15 HP LOW SPEED ELECTRIC MOTOR
- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY, AND AVAILABLE THROUGHOUT NORTH AMERICA
- ONE YEAR WARRANTY ON ALL PARTS
- MFG. IN NORTH AMERICAN FROM US & CANADIAN COMPONENTS
AVAILABLE OPTIONS:
- T-SLOTTING ........ (PER LINEAR INCH) ................. $
- ABB HMI PROGRAMMABLE CONTROL REPLACING STANDARD CONTROL ......... $
Example of HMI capabilities:
Product 1
- Ram down to 10"
- Dwell for 3min.
- Ram up 5" inches and wait.
Product 2
- Ram down to 8.5"
- Dwell for 4min.
- Wait 30sec
- Press again for 2min
- Ram up 6" inches and wait.
FOR MORE INFORMATION: Call Rick at 973-497-7560
