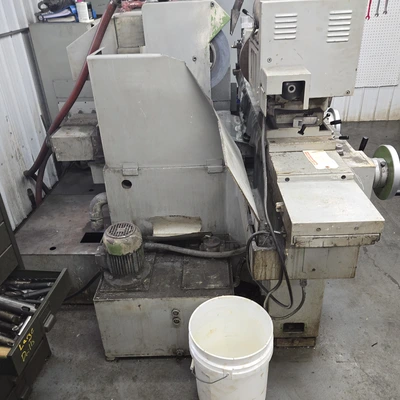

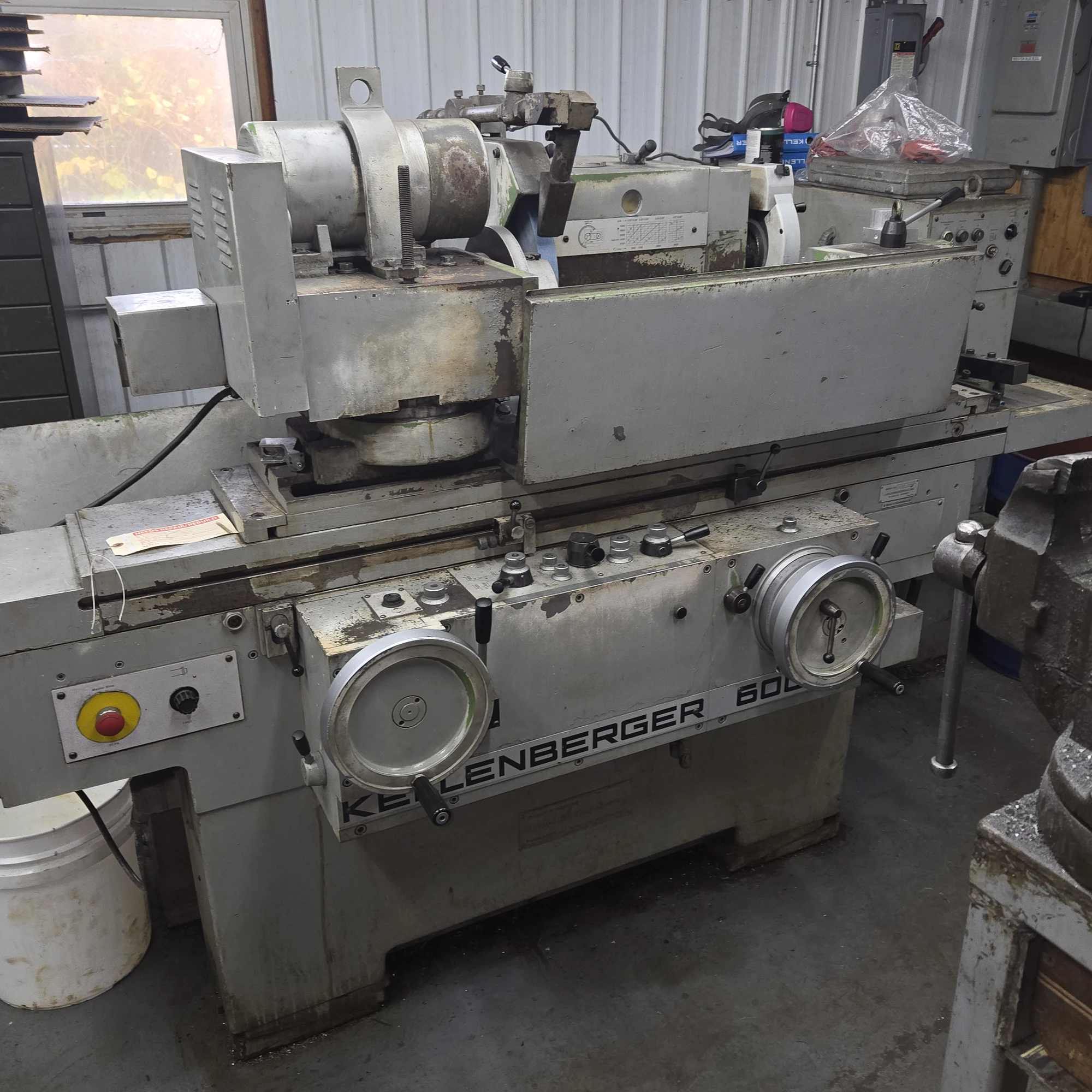

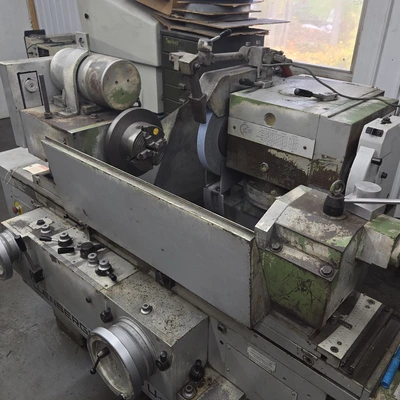

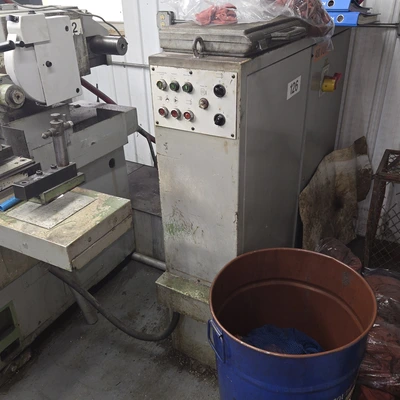

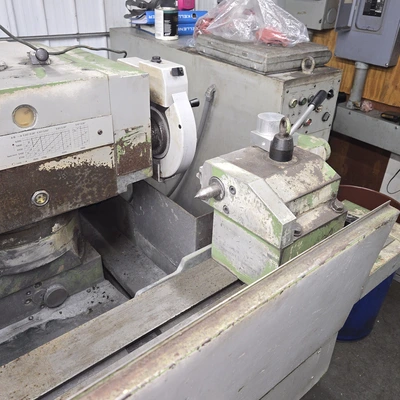

USED 1982 Kellenberger 600 U-175, 1982, SWING AROUND ID., FACING ATT.

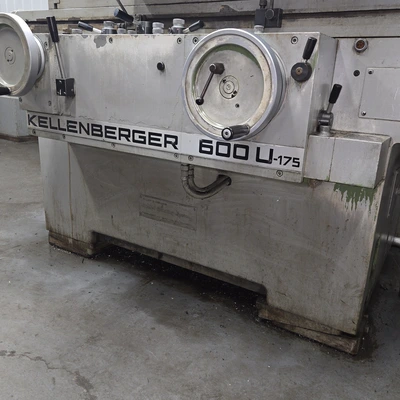

  13.8" x 24"  KELLENBERGER MODEL 600U-175

            "MADE IN SWITZERLAND"

  UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

SPECIAL NOTE:

SWING CAN BE INCREASED TO A MAXIMUM OF 19.8"

  BY ADDING COPIES OF KELLENBERGER FACTORY

  RISER BLOCKS.  WE HAVE THESE RISER BLOCKS IN STOCK.

  PRICE IS AVAILABLE UPON REQUEST.

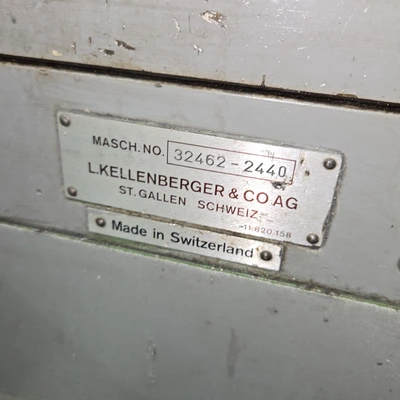

S/N: 32462-2440      NEW: 1982

CAPACITY:

SWING CAPACITY ........................... 13.8"

MAX. SWING w/ADDITIONAL RISERS ........... 19.8"

DISTANCE BETWEEN CENTERS (NOMINAL)........ 23- 5/8"

DISTANCE BETWEEN CENTERS W/TAILSTOCK

  OVERHANGING ............................ 29- 1/2"

TABLE:

LONGITUDINAL TABLE TRAVEL ................ 35- 1/2"

LONGITUDINAL TABLE TRAVEL PER

  TURN OF HANDWHEEL:

  COARSE ................................. 25/32"

  FINE ................................... 3/32"

LONGITUDINAL TABLE SPEED (HYD.) ..... 0.06 TO 18' FPM

TABLE SWIVELS ............................ 11 DEGREES

REVERSING DWELL ........................ 0 TO 5 SECONDS

GRINDING WHEEL INFEED:

  1 GRADUATION OF FEED SCALE ............. 0.0002"

  AUTOMATIC FEED, MAXIMUM ................ 0.035"

  AUTO INFEED PER TABLE REVERSAL .. 0.00005" TO .0012"

  INFEED FOR PLUNGE GRINDING ........ 0.00004" TO .002"

  PLUNGE GRINDING: INFEED SPEED ... 10 TO 1000 uIN/SEC

  MICROMETER STOP, 1 GRADUATION .......... 0.00005"

UNIVERSAL GRINDING SPINDLE HEAD:

  TRANSVERSE MOVEMENT OF WHEEL SLIDE ..... 11-1/4"

  HYDRAULIC RAPID WHEEL SLIDE

   ADVANCE/RETRACTION STROKE ............. 1-9/16"

  GRINDING WHEEL SPEEDS (4) 1500, 1700, 2200& 3600 RPM

  GRINDING WHEEL FOR CYLINDRICAL

   GRINDING .......................... 16" X 2" X 5"

  GRINDING WHEEL (SURFACE GRINDING)... 10" X 3/4" X 3"

  SWIVEL OF GRINDING HEAD

   W/LOCKING EVERY 90 DEGREES ........... 270 DEGREES

WORKHEAD:

  INFINIT. VARIABLE SPINDLE SPEEDS ..... 10 - 400 RPM

  WORKHEAD SWIVELS ..................... 360 DEGREES

  INSIDE TAPER OF WORK SPINDLE ......... #5MT

APPROXIMATE FLOOR SPACE REQUIRED .... 102" X 64" X 66"H

APPROXIMATE MACHINE WEIGHT ............... 6,000 LBS

MACHINE FEATURES:

HYDRAULIC OPERATION FEATURING:

-SINGLE LEVER CONTROL

-INFINITELY VARIABLE TABLE TRAVERSE

-AUTOMATIC INFEED

-PLUNGE INFEED

-RAPID WHEEL ADVANCE & RETRACTION

SPARKOUT TIMER

DUAL LEFT-HAND & RIGHT-HAND WHEEL MOUNTING

EQUIPPED WITH:

- SWING AROUND INTERNAL GRINDING ATTACHMENT

- (1) INTERNAL GRINDING SPINDLE

- 16" O.D. WHEEL

- FACE GRINDING ASSEMBLY (R.H. WHEEL)

- 4-JAW CHUCK & BACK PLATE, WITH ADAPTOR

- WHEEL DRESSER

- STANDARD WORKHEAD W/DUAL LIVE & DEAD WORKHEAD

   SPINDLE

- 4 H.P. WHEELHEAD MOTOR

- COOLANT SYSTEM

- MACHINE IS PRESENTLY WIRED FOR 3/60/440-460 VOLTS

SPECIAL NOTE:

SWING CAN BE INCREASED TO A MAXIMUM OF 19.8"

  BY ADDING COPIES OF KELLENBERGER FACTORY RISER

  BLOCKS.  WE HAVE THESE RISER BLOCKS IN STOCK.

  PRICE IS AVAILABLE UPON REQUEST.

** EXCELLENT CONDITION & APPEARANCE **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
