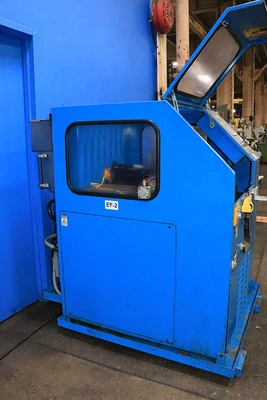

USED Wauseon 1003 HY

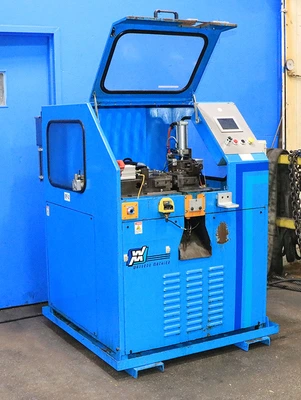

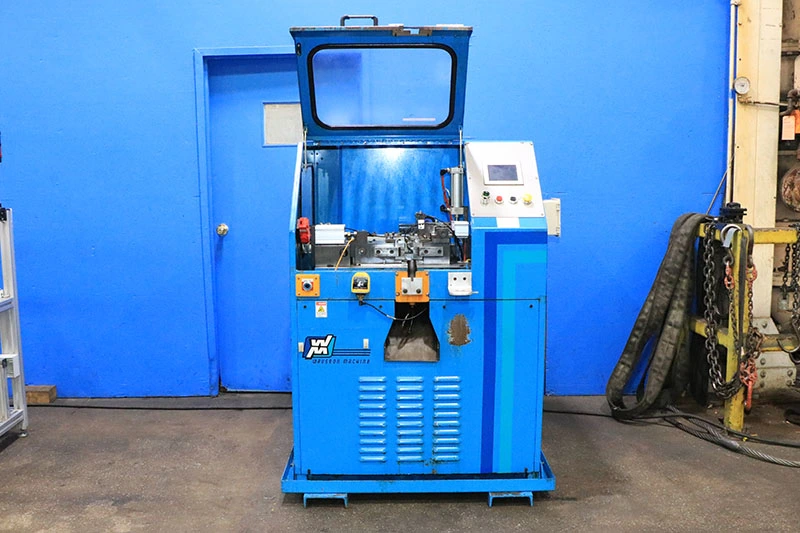

1" Dia. Wauseon 1003 HY TUBE END FORMER

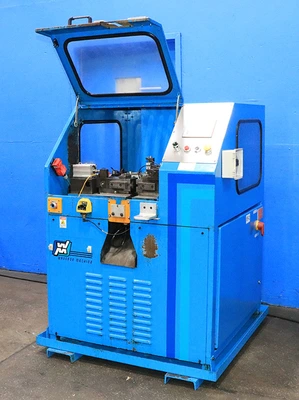

WAUSEON HYDRAULIC END FORMING MACHINE

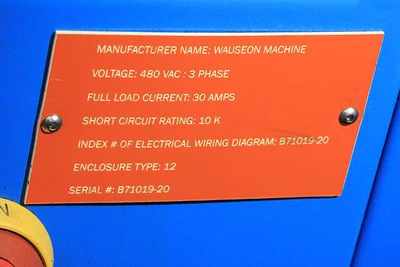

MODEL 1003 HY      S/N B71019-20

CAPACITY ................. 1"

RAM CYLINDER (HYD) ....... 3-1/4" BORE X 3" STROKE

MAXIMUM RAM FORCE ........ 8.2 TONS

CLAMP CYLINDER (AIR) ..... 14.5 TONS DURING LOCKUP

SHUTTLE CYLINDER (AIR) ... 3-1/4" BORE

HYDRAULIC POWER UNIT ..... 40 GALLON RESERVOIR

                           15 GPM, PISTON PUMP 2000 PSI

                           7.5 HP, 1800 RPM ODP

                           220/440 3 PHASE 60 Hz

RAM WORKING PRESSURE ..... 1200 PSI VARIABLE

RAW MAXIMUM PRESSURE ..... 2000 PSI

MAXIMUM JAW OPENING ...... 1.50"

AIR REQUIREMENTS ......... 80 PSI

DIMENSIONS: 36" X 36" X 60"H

WEIGHT: 2,500 LBS.

FEATURES:

- CAPABLE OF END FORMING, BEADING, EXPANDING & REDUCING

- GOOD FOR PRODUCTION & PROTOTYPING

FOR MORE INFORMATION: Call Rick at 973-497-7560
