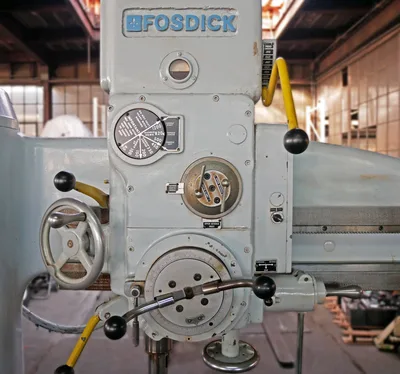

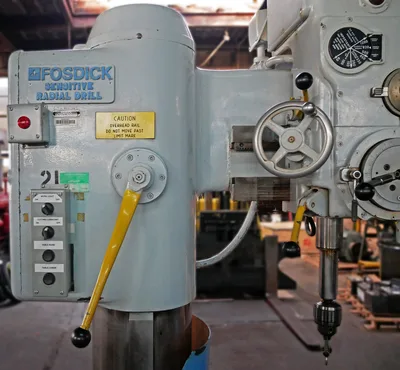

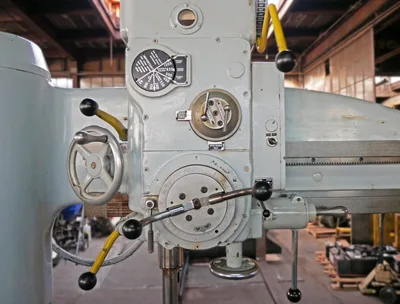

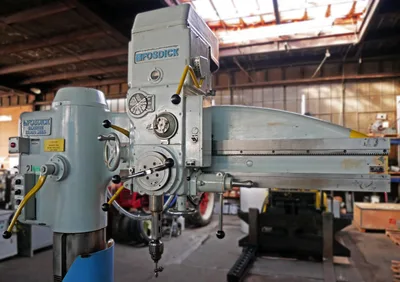

USED 1970 Fosdick 4' Sensitive Drill w/Tapping

4' Arm Lth 12" Col Dia Fosdick 4' Sensitive Drill w/Tapping RADIAL DRILL, Power Elevation of Table, #4MT, 5 HP Tapping,

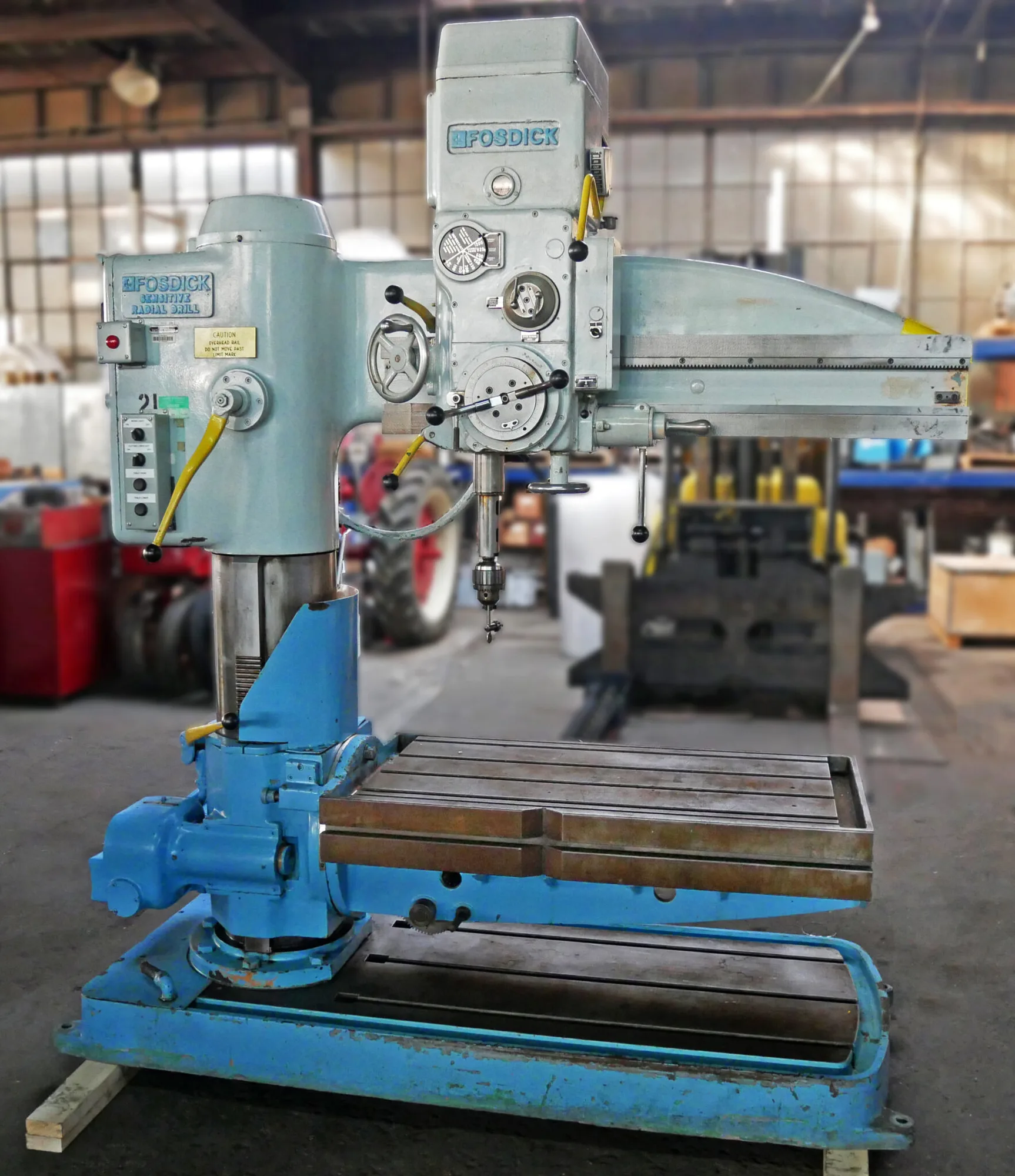

4' FOSDICK SENSITIVE RADIAL DRILLING MACHINE

  S/N: 20866,   NEW: 1970

SPECIFICATIONS:

SPINDLE TO FACE OF COLUMN .................... 48" MAX.

SPINDLE TO FACE OF COLUMN ..................... 9" MIN.

DIAMETER OF COLUMN ................................ 12"

HORIZONTAL TRAVEL OF HEAD ON ARM .................. 39"

BASE TO SPINDLE MAX./MIN. ................... 44" / 32"

TABLE TO SPINDLE MAX. ......................... 23-1/4"

TABLE TRAVEL VERTICAL ......................... 16-1/2"

TABLE WORKING SURFACE ....................... 24" X 48"

BASE WORKING SURFACE ........................ 30" X 41"

SPINDLE TRAVEL IN HEAD ............................ 10"

SPINDLE MORSE TAPER .............................. #4MT

SPINDLE SPEED RANGE (18) ................ 60 - 1200 RPM

SPINDLE FEEDS (4) ......... .002, .004, .007 & .010 IPR

APPROXIMATE WEIGHT .......................... 5,300 LBS

APPROXIMATE DIMENSIONS ............. 78"L x 30"W x 95"H

EQUIPPED WITH:

- AUTOMATIC TAPPING REVERSE

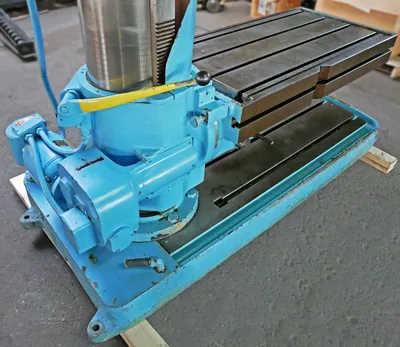

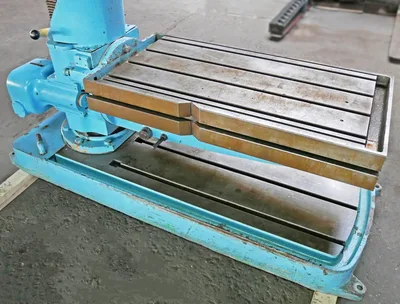

- UNIVERSAL TILTING TABLE

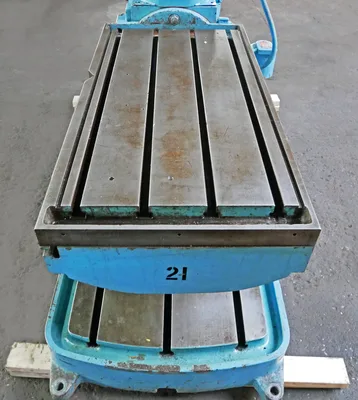

- T-SLOTTED TABLE AND BASE

- POWER ELEVATION OF TABLE ON COLUMN

- 5 HORSE POWER TWO SPEED SPINDLE MOTOR

FOR MORE INFORMATION: Call David at 973-497-7570
