56" Table 5HP Spindle Sharp VH-25 Vertical/Horizontal VERTICAL MILL, 2 Spindles, #40 Taper, Newall DRO, Rapids

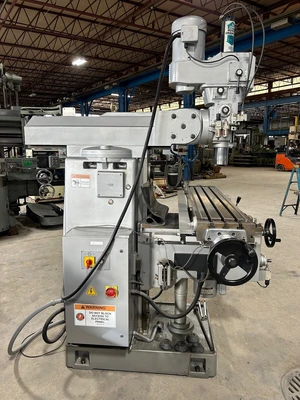

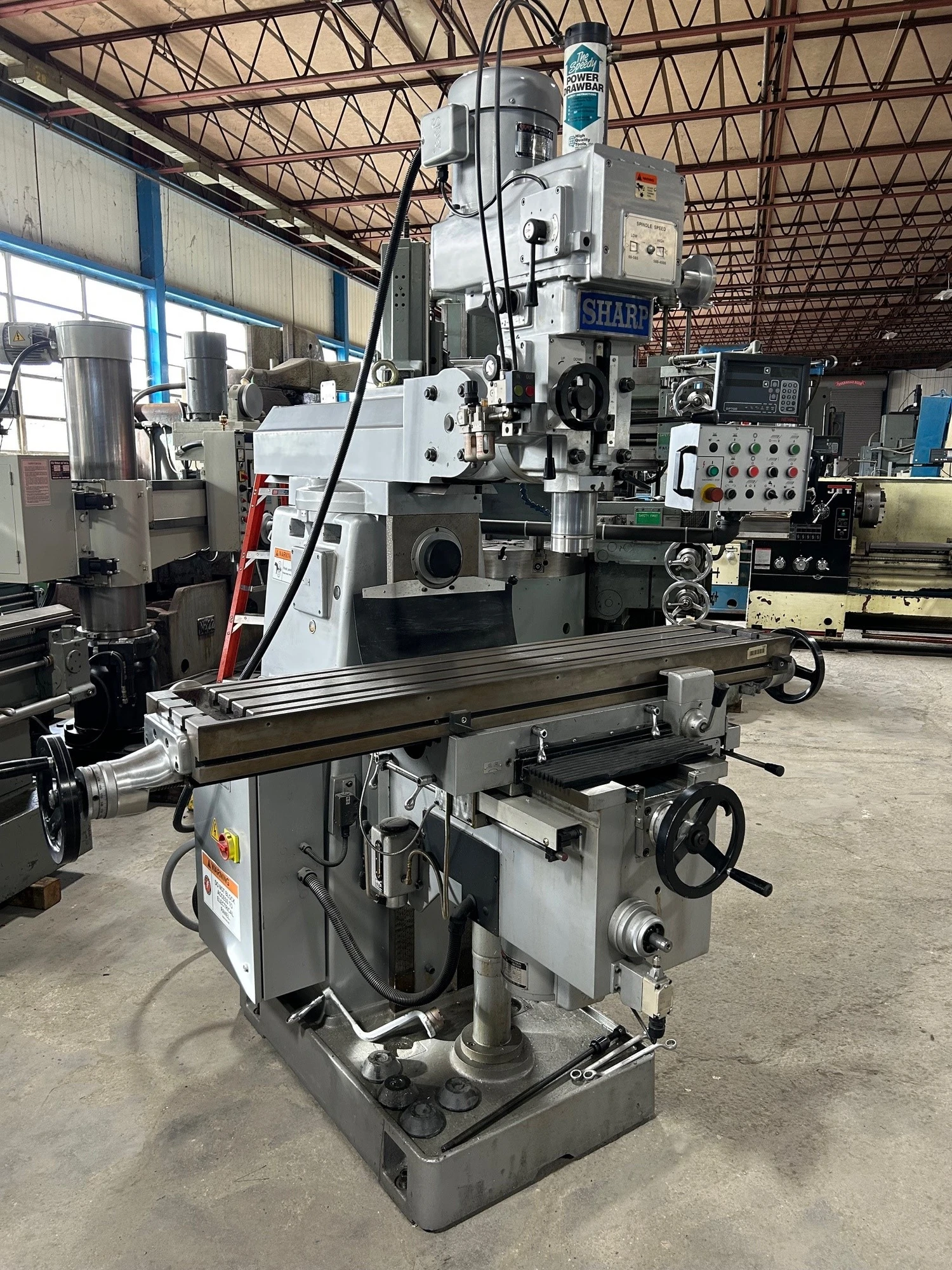

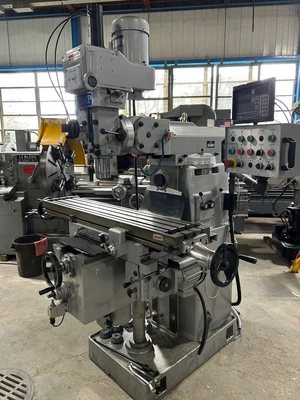

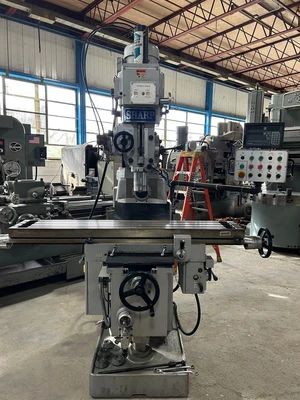

SHARP VERTICAL / HORIZONTAL MILL

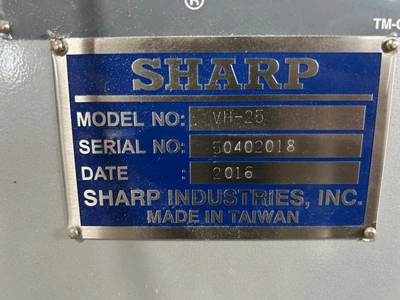

MODEL VH-25, S/N: 50402018, MFG: 2016
SPECIFICATIONS:

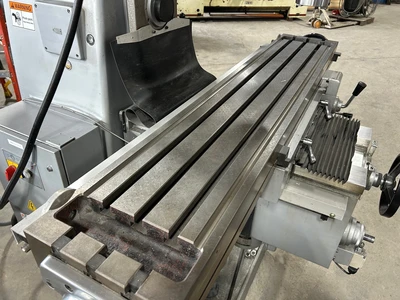

TABLE
WORKING SURFACE ..................... 10" X 56"
LONGITUDINAL TRAVEL ................. 36"
CROSS TRAVEL ........................ 16-1/2"
LONGITUDINAL FEEDS (12) ............. 7/8 - 27 IPM
LONGITUDINAL RAPID TRAVERSE ......... 82-1/2 IPM
VERTICAL KNEE TRAVEL ................ 17-1/2"
RAM TRAVEL .......................... 18-1/2"

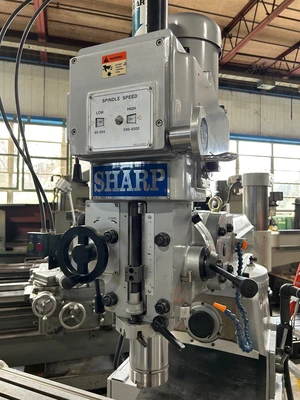

MILLING HEAD
SPINDLE MOTOR (VERTICAL) ............ 4 HP
SPINDLE MOTOR (HORIZONTAL) .......... 5 HP
VERT SPINDLE SPEEDS, INF VAR ........ 60-4,500 RPM

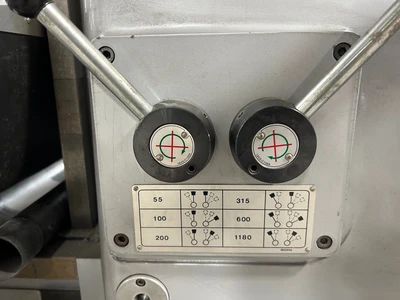

SPINDLE SPEEDS (HORIZ) (6) .......... 80,120,230
380,700,1350 RPM
SPINDLE TAPER, VERTICAL ............. NST #40
SPINDLE TAPER, HORIZONTAL ........... NST #40
POWER QUILL FEEDS (3) ............ 0.0016, 0.003, 0.006 IPM
QUILL TRAVEL ........................ 5"
QUILL DIAMETER ...................... 3-1/2"
TURRET SWIVEL ....................... 360 DEG
HEAD TILT, FRONT AND BACK ........... 45 DEG
HEAD TILT LEFT AND RIGHT ............ 90 DEG
SPINDLE CENTER TO COLUMN (MIN-MAX)... 12-13/16" - 30-11/16"
SPINDLE NOSE TO TABLE (MIN-MAX) ..... 5-5/16" - 23"

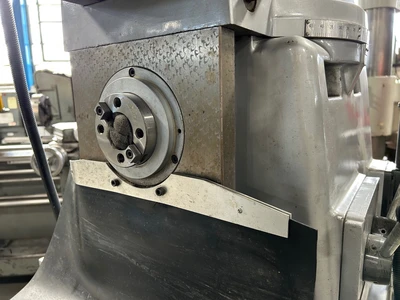

HORIZONTAL SPINDLE
SPINDLE CENTER TO TABLE (MIN-MAX) ... 0 - 17-3/8"
NET WEIGHT .......................... 4,200 LBS
MACHINE DIMENSIONS .................. 82" X 75" X 93"
EQUIPPED WITH:

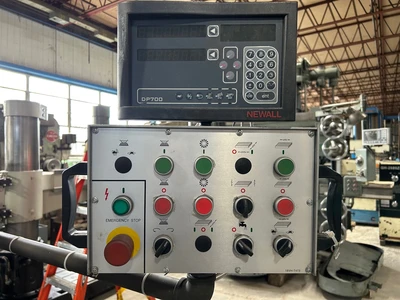

- NEWALL TWO AXIS DIGITAL READOUT
- LONGITUDINAL TABLE POWERFEED WITH RAPID TRAVERSE
- RAPID KNEE TRAVERSE

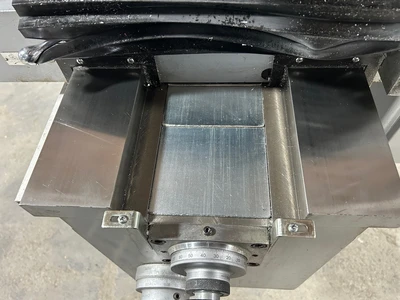

- HARDEDNED & GROUND BOXWAYS ON SADDLE & COLUMN
- FLOOD COOLANT
INSPECT UNDER POWER IN A MIDWEST WAREHOUSE
