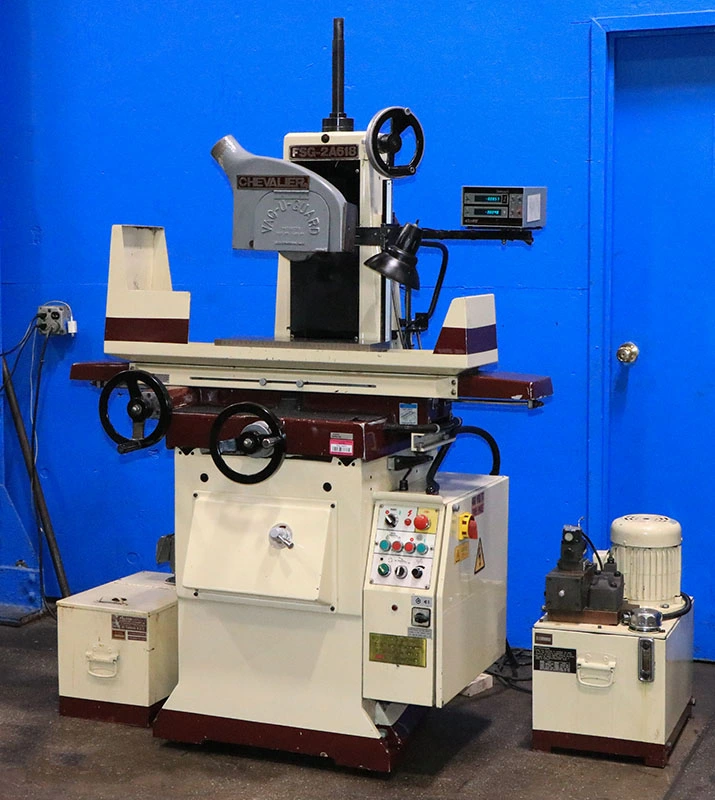

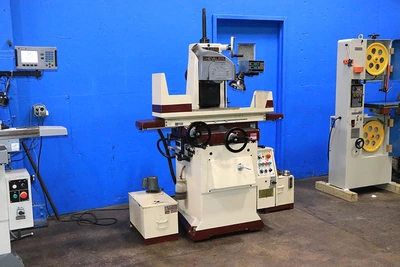

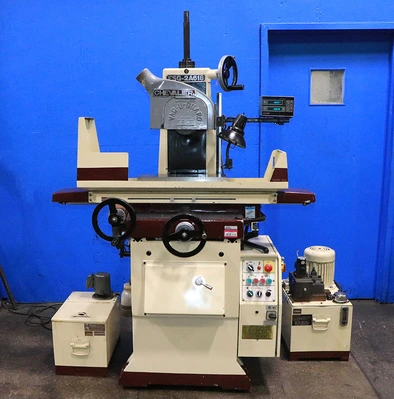

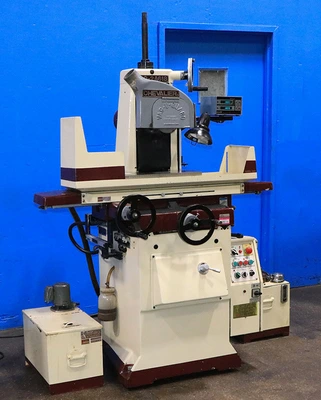

USED 1995 Chevalier FSG-2A618, 1995, 2X DRO, HYD TABLE, AUTO CROSSFEED
Overview
Description
6" Width 18" Length Chevalier FSG-2A618, 1995, 2X DRO, HYD TABLE, AUTO CROSSFEED SURFACE GRINDER, COOLANT, PMC
Specifications
6" X 18" CHEVALIER "TWO-AXIS" AUTOMATIC SURFACE GRINDER
MODEL: FGS-2A618 S/N: B7846023 NEW: 1995
MAX. SURFACE GROUND ..................... 6" X 18"
DIST. FROM SPINDLE CENTER TO TABLE ...... 18"
VARIABLE TABLE SPEED, HYDRAULIC ......... 0 TO 70' FPM
MAX. TABLE TRAVEL ....................... 19"
AUTOMATIC CROSSFEED INCREMENT ......... 0.006 TO 0.375"
WHEEL DRESS, POWER TRUING .......... 0.63' TO 3.3' FPM
MAX. CROSSFEED TRAVEL ................... 6- 3/4"
DOWNFEED HANDWHEEL PER GRADUATION ....... 0.0001"
PER REVOLUTION .......................... 0.05"
CROSSFEED HANDWHEEL PER GRADUATION ...... 0.0005"
PER REVOLUTION .......................... 0.1"
SPINDLE MOTOR ........................... 1 H.P.
STANDARD GRINDING WHEEL .......... 8"D x 1/2" x 1- 1/4"
APPROX. WEIGHT .......................... 2,000 LBS
APPROX. DIMS. ................... 52"L-R x 44"W x 76"H
MACHINE FEATURES:
HYDRAULICALLY POWERED LONGITUDINAL
POWER AUTOMATIC CROSS FEED
TABLE MOVES ON STEEL PRECISION BALLS FOR
LOW-FRICTION EASY TABLE MOVEMENTAUTO LUBE SYSTEM
2 HP 3/60/220-440 VOLT HYDRAULIC PUMP MOTOR
1 HP 3/60/220-440 VOLT SPINDLE MOTOR
EQUIPPED WITH:

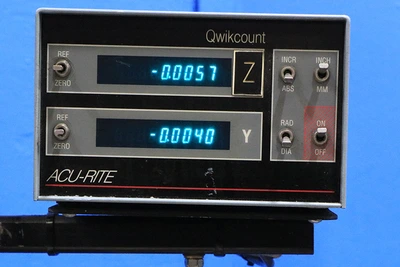

"ACU-RITE" "QWIKCOUNT" 2-AXIS DIGITAL READOUT

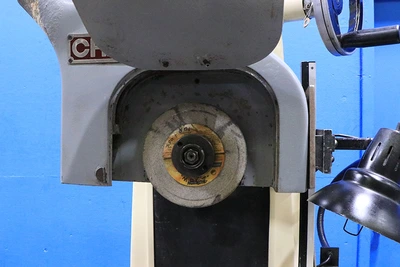

"VAC-U-GUARD" WHEEL COVER, WITH DUST INLET

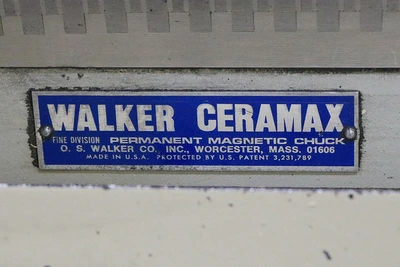

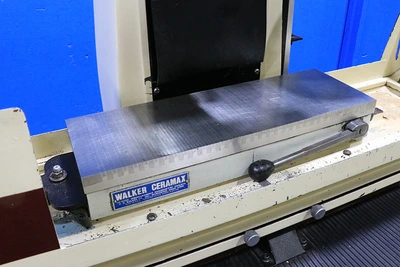

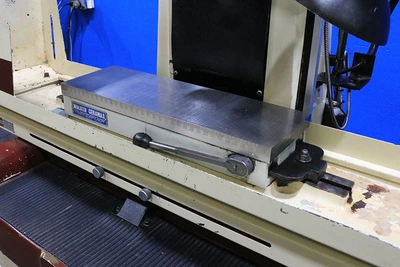

6" x 18" "O.S. WALKER CERAMAX" FINE-DIVISION
PERMANENT MAGNETIC CHUCK
COOLANT SYSTEM
WORK LIGHT
MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS
** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
FOR MORE INFORMATION: Call Andy at 973-497-7600
