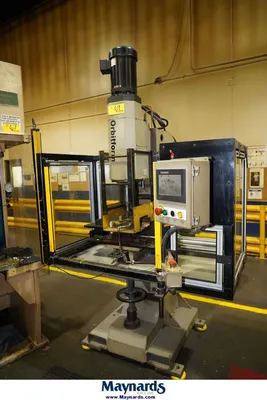

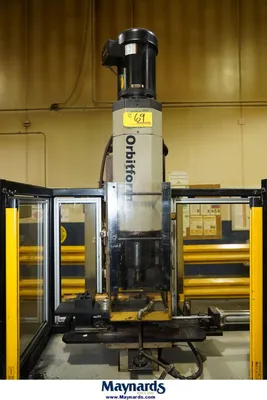

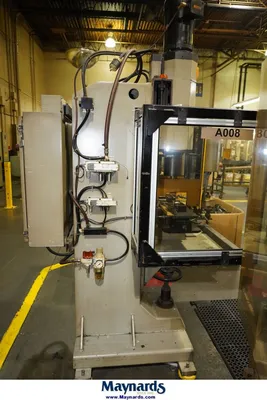

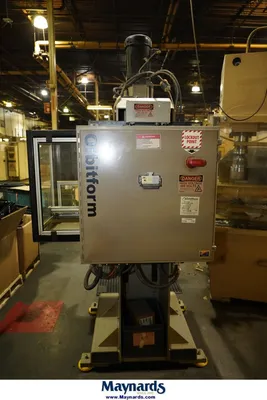

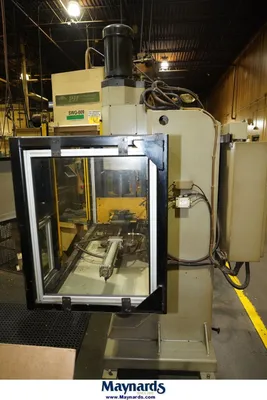

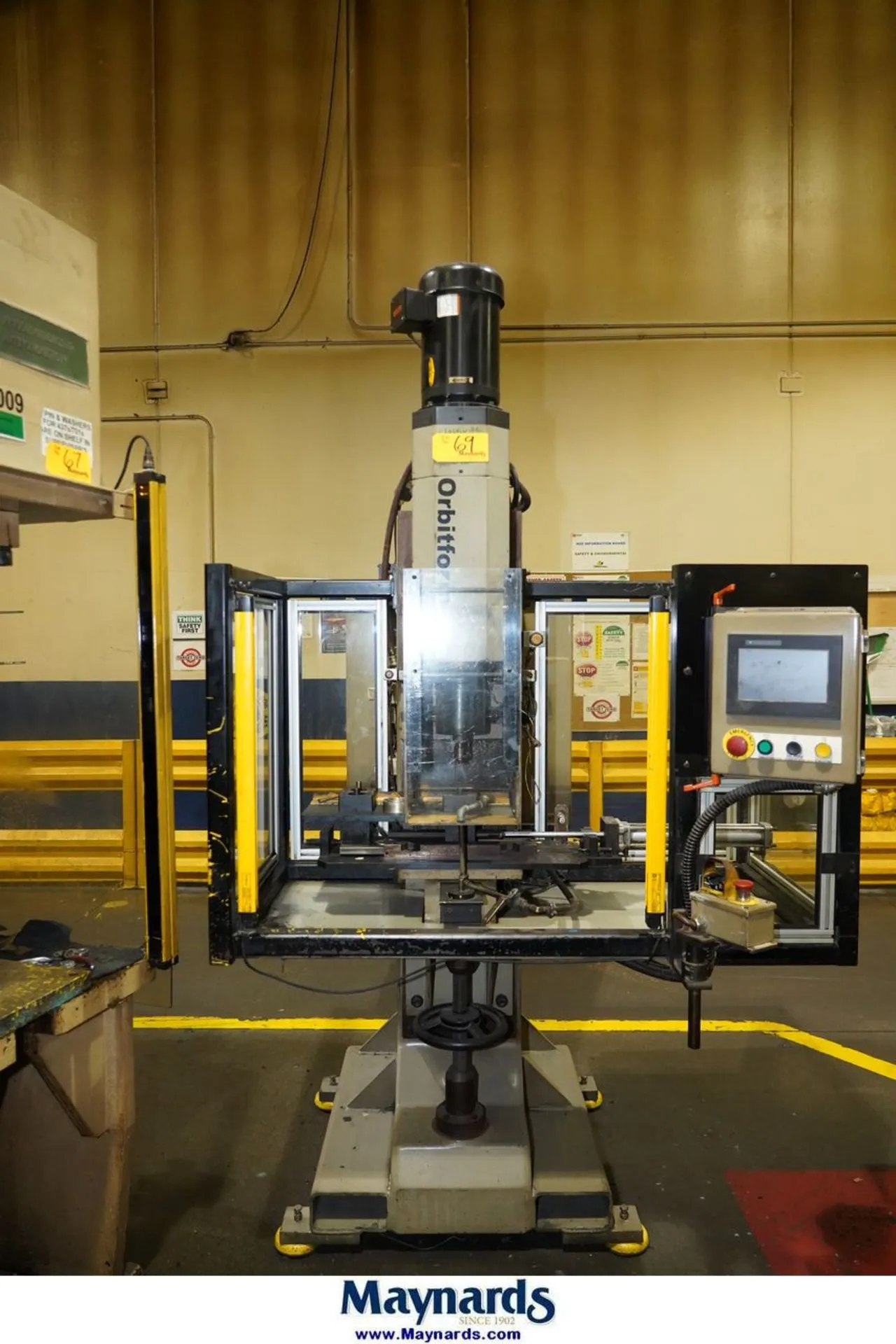

USED 2018 Orbitform P-845

0.84" Rivet Cap 9" Throat Orbitform P-845 RIVETER

.840" CAPACITY ORBITFORM ORBITAL RIVETER

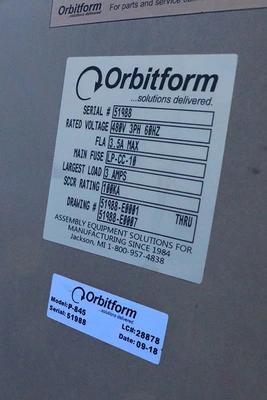

MODEL P-845        S/N 51988        NEW 2017

HEAD FORMING CAPACITY .(MILD STEEL).... .840" DIA.

STROKE ................................ .06" - 2-1/2"

MAXIMUM DOWNWARD FORCE @ 100 PSI ...... 12,700 LBS.

THROAT DEPTH .......................... 9"

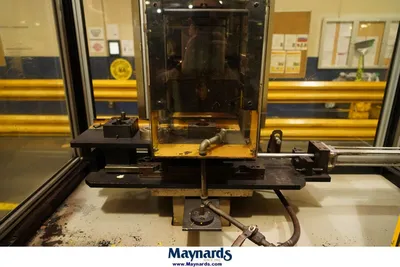

WORK TABLE ............................ 16" X 26"

SADDLE RANGE .......................... 36"-48"

Overall Dimensions: 62" x 32" x 87" high

Approximate Weight: 1,400 lbs.

Work Table Dimensions: 61-1/2" x 32" x 34 3/4" high

Machine only weight: 1,200 lbs.

EQUIPPED WITH:

- LOADCELL FORCE MONITORING: FORCE READOUT & PROCESS OPTIMIZATION

- LINEAR VARIABLE DIFFERENTIAL TRANSFORMER: MONITOR STROKE DISTANCE & INCREASE PRECISION AND CONSISTENT HEAD FORMING

- 1-1/2 HP, 1140 RPM / 480 VOLT ELECTRIC MOTOR

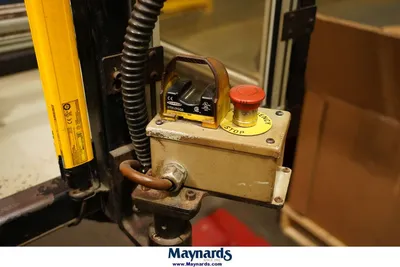

- DUAL FINGER TRIPS

- ADJUSTABLE DWELL TIMER

- CYCLE COUNTER

- MANUAL AND AUTOMATIC MODES

- MANUAL JOG, ADVANCE AND RETURN SELECTOR SWITCH

- HS1006 HEAD WITH ANTI ROTATION

- BANNER LIGHT CURTAINS

- WORK LIGHT

- LEVELING PADS

FOR MORE INFORMATION: Call Rick at 973-497-7560
