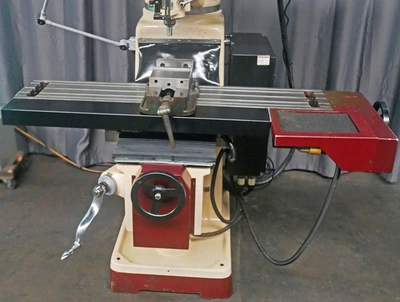

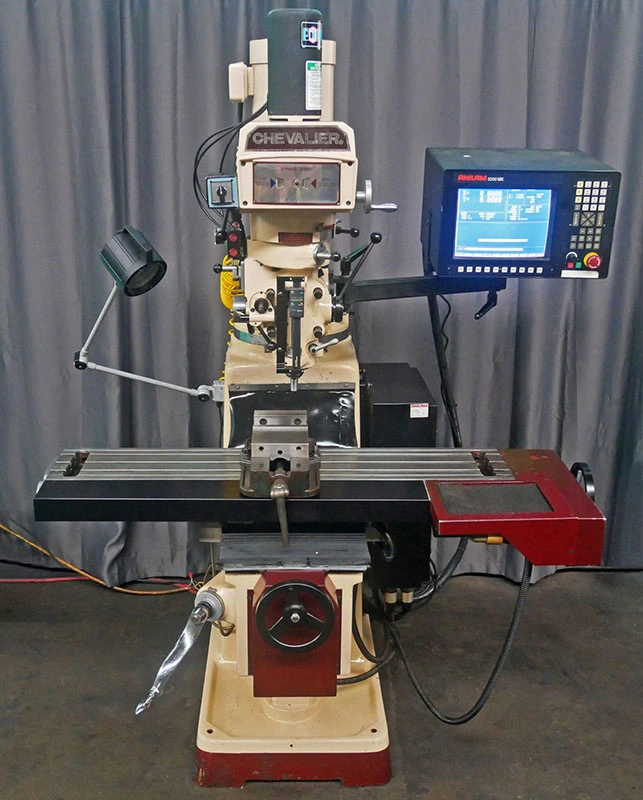

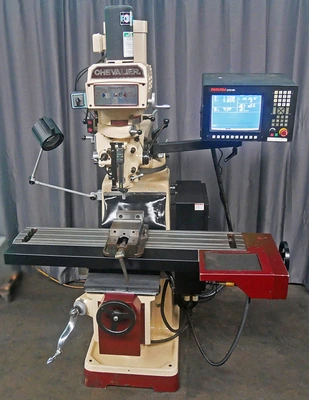

USED 2000 Chevalier FM-32K W/Anilam 3200 MK 2- Axis Control
Overview
Description
31" X Axis 3HP Spindle Chevalier FM-32K W/Anilam 3200 MK 2- Axis Control CNC VERTICAL MILL, anilam 3200MK 2-Axis Control, R8 PDB, Hard Ways,
Specifications
CHEVALIER 2-AXIS CNC VERTICAL MILL
MODEL: FALCON 3A2K, MFG: 2000
W/ANILAM 3200MK CONTROL
SPECIFICATIONS:

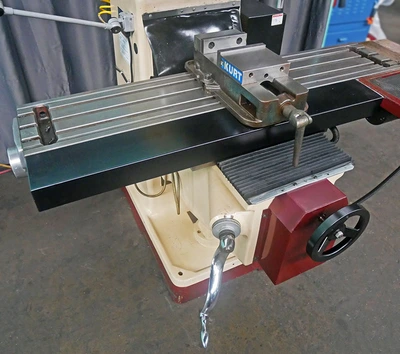

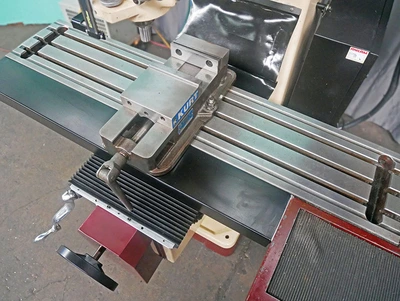

WORKING SURFACE OF TABLE ................. 10" x 50"
LONGITUDINAL TABLE TRAVEL ................ 31"
CROSS TABLE TRAVEL ....................... 14"
QUILL TRAVEL ............................. 5"
KNEE TRAVEL .............................. 15-3/4"
RAM TRAVEL ............................... 24"
OVERARM SWIVEL ........................... +/- 45%
SPINDLE TAPER ............................ R-8

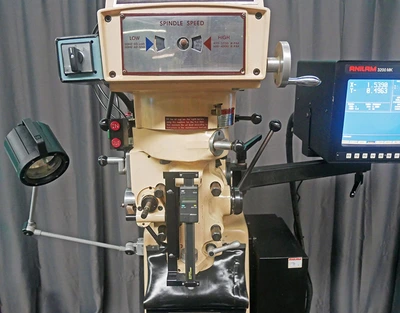

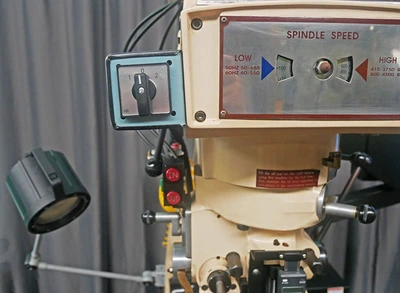

VARIABLE SPINDLE SPEEDS .................. 60 TO 4500 RPM
SPINDLE FEEDS(2) ......................... .0015, .006" IPR
FLOOR SPACE: ......................... 104"W x 79"D x 84"H
WEIGHT APPROXIMATELY: .................... 3,650 LBS.
EQUIPPED WITH:

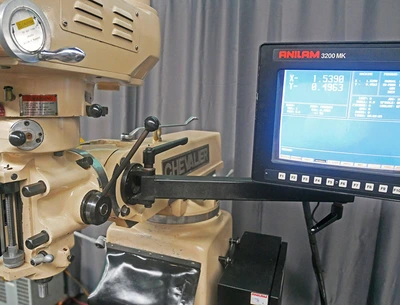

ANILAM MODEL: 3200MK 2-AXIS CNC CONTROL
CONVERSATIONAL PROGRAMMING, 2-AXIS SIMULTANEOUS
SCALING, ROTATE, MIRROR, SUB-PROGRAMS
GRAPHICS, MDI TEACH MODE, RS-232
IN MANUAL OPERATION, CONTROL BECOMES 2 AXIS DIGITAL READOUT

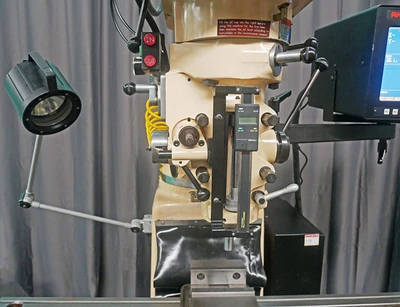

MITUTOYO DIGITAL READOUT FOR QUILL FEED
GROUND BALLSCREWS & SERVO MOTORS ON TABLE & SADDLE
HARDENED & GROUND DOVETAIL SLIDEWAYS
KURT POWER DRAW BAR
LUBRICATION SYSTEM
3 HORSE POWER SPINDLE MOTOR
FOR MORE INFORMATION: Call David at 973-497-7570
