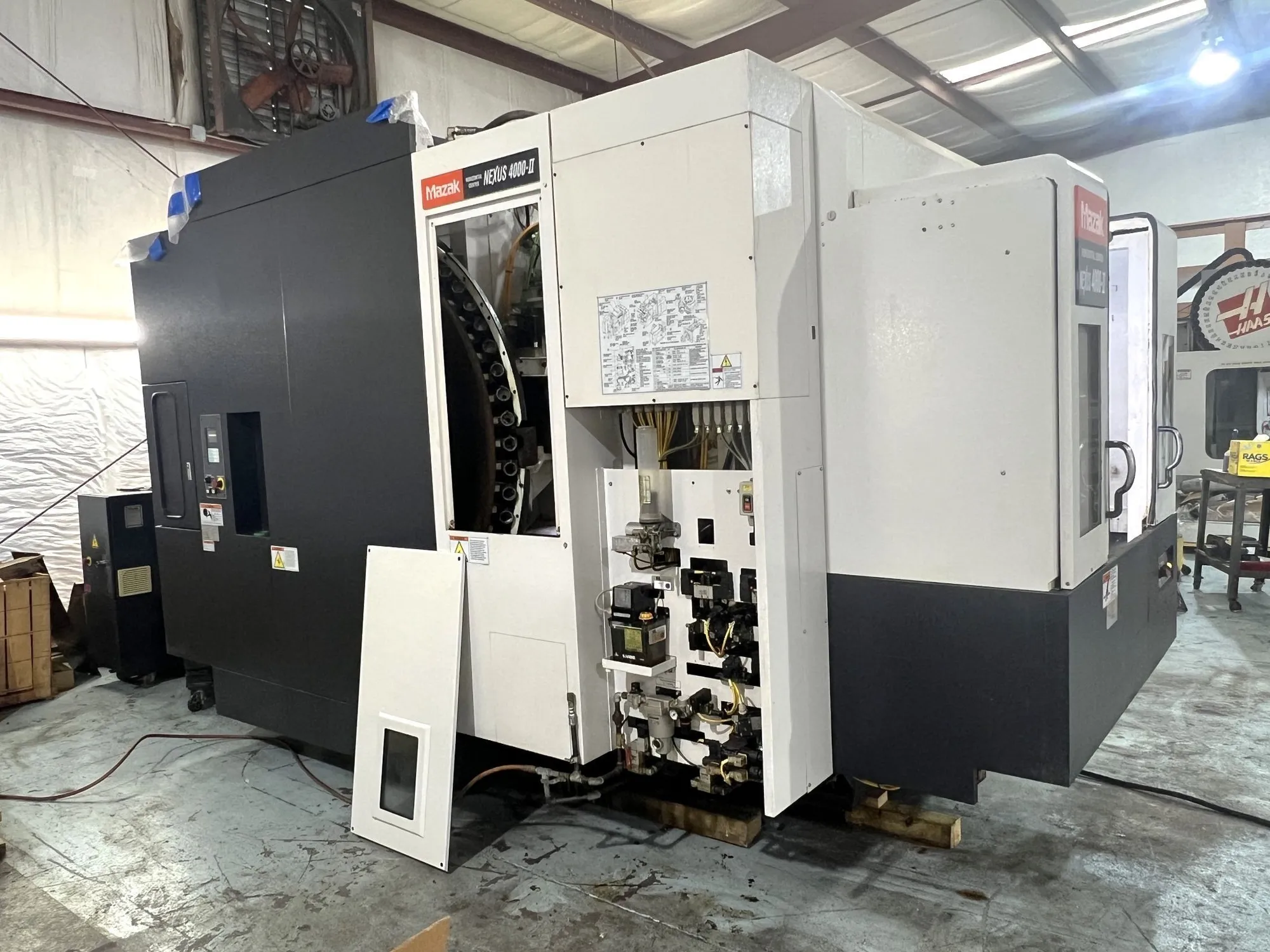

USED 2008 MAZAK HCN-4000-II

2008 Mazak HCN-4000-II

Machine Control Mazatrol Matrix Nexus
Pallet Size / Number of Pallets 15.7"x15.7" / 2 Pallets
Maximum Table Load 880 lbs
Table Indexing Full 4th Axis
X-Axis Travel 22.05"
Y-Axis Travel 25.2"
Z-Axis Travel 25.2"
Tool Magazine Capacity 60 Station Tool Changer
Maximum Tool Diameter / Length / Weight 5.91" / 14.17" / 26.5 lbs
Spindle Taper CAT 40
Spindle Speed 18,000 RPM
Spindle Motor 30 HP
Rapid Traverse Rates 1968 IPM
Machine Dimensions LxWxH 164"x106"x104"
Machine Weight 22,723 lbs

2 Pallet Factory Changer

Full 4th Axis Rotary Table

Super Flow Variable Speed High Pressure Coolant Through the Spindle - 1000 PSI

60 Station Tool Changer

Chip Conveyor

Renishaw OMP60 Work Measuring Probe System

Auto Tool Length Measurement - Tool Probe

18,000 RPM Spindle

Manual Pulse Generator

EIA Input Function

Synchronous Tapping

USB Port Interface

RS 232 Port Interface

Multi Tap Transformer

All Available Manuals

**Total Cutting Hours 19,216**
