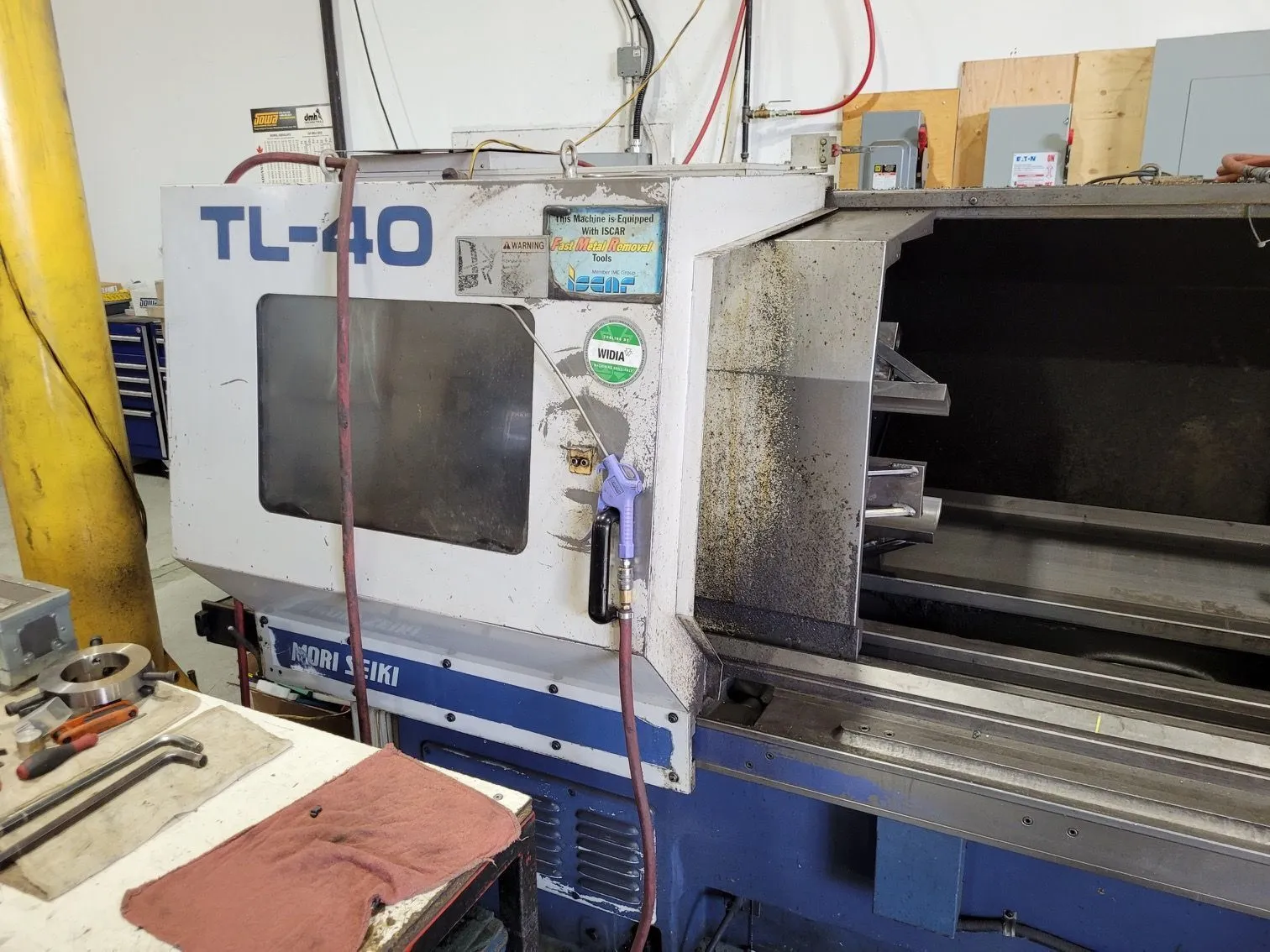

MORI SEIKI TL-40B CNC Lathe, 1995 model in used condition. Features include a 620 swing, 83.3 machining length, 12.0 chuck size, and 25.0 power with a maximum RPM of 12.0. Tailstock included. Ideal for precision machining needs.
| Swing | 20 mm | 0.7874" |
| Machining Length | 60" | 1,524 mm |
| # Axis | 2 | 2 |
| Chuck Size | 18" | 457.2 mm |
| Bar Capacity | 4.6" | 116.84 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 2,500 RPM | 2,500 RPM |
| Turning Dia | 13.8" | 350.52 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC | CNC |
X Axis Travel: 9.3"
Z Axis Travel: 116"
Rapid Rate Z Axis: 378 IPM
Turret Tools: 10 Station
Rapid Rate X Axis: 189 IPM
Max Turning Dia: 13.8"
Air Chuck: 18" (Main)
Manual Scroll Chuck: 18" (rear)
Manual Hydraulic Tailstock/Rotating Center
Belt Drive: 40HP
8 Station Multi-Directional Turret
Bar Max Capacity: 4.6"
Diameter: 20"
Length: 60"
2500 Rpm Main Spindle, High and Low Gear Available
Included:
-2 Steady Rests
-Numerous Soft Jaws
-1 Set of Hard Jaws
-7 Centers
-Auxiliary High Pressure Coolant Pump
-Fanuc MF-T6 Control
-Chip Conveyor
-Multiple I.D. and O.D. Tool Holders
-2 Face Groove Holders
This machine is in good working order and is currently powered up and available for viewing.
As mentioned, it has never been crashed and is still a very capable heavy turning machine
