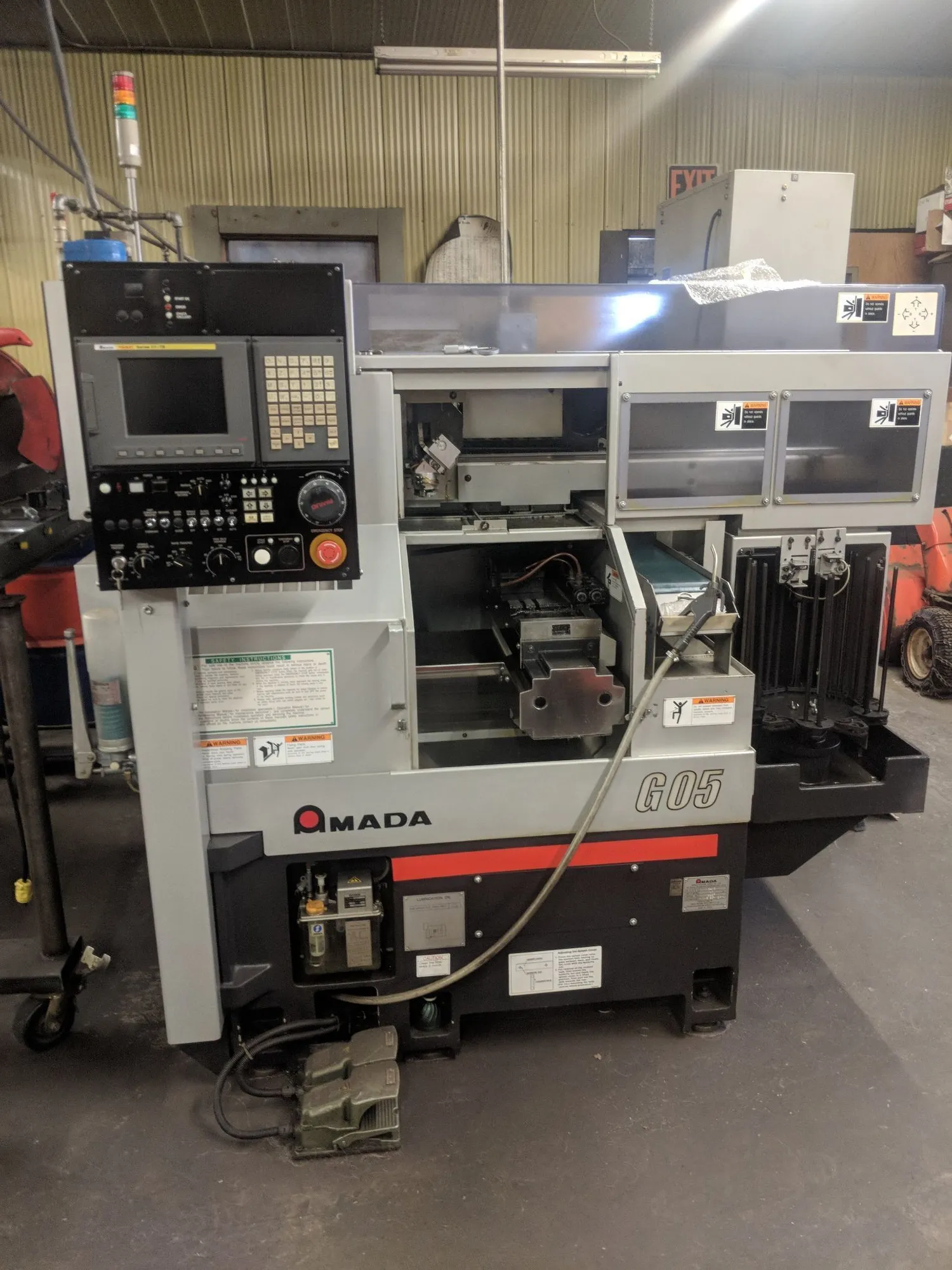

AMADA WASINO G-05 CNC Lathe from 2012 in used condition. Features a 4.0" chuck, 5.0 HP, and a max RPM of 8000. Ideal for precision machining needs, this compact machine offers reliable performance for diverse manufacturing tasks.
| # Axis | 2 | 2 |
| Chuck Size | 4" | 101.6 mm |
| Bar Capacity | 1.1 mm | 0.0433" |
| Power | 5 hp | 3.7 kW |
| Max RPM | 8,000 RPM | 8,000 RPM |
| Control | CNC | CNC |
| Dimensions | 65 x 66 x 63 | 65 x 66 x 63 |
| Weight | 3500 LBS | 3500 LBS |
Chuck Size: 4"
Spindle Nose: 3.93"
Spindle Bore: 1.10"
Spindle Speed: 8,000 RPM
Spindle Motor: 5 HP
Spindle Center Height: 37.4"
X Axis Travel: 8.66"
Z Axis Travel: 8.66"
X Axis Rapid Traverse: 590 IPM
Z Axis Rapid Traverse: 590 IPM
Floor Space Requirement: 65" x 66"
Machine Height: 63"
Machine Weight: 3,500 LBS
Power Requirements: 208/60/3 phase
Loader Specs:
Workpiece Size: 2.2" x 2.0"
Workpiece Weight: 1.1 LBS
Jaw Stroke: 0.18"
Pusher Stroke: 0.12"
Approximate Load/Unload Time: 5.5 sec
Y Axis Travel: 9.0"
B Axis Travel: 49.0"
Wrist Swing: 180 Degrees
Fanuc S-21i-TB Control
SR-00 Gantry Loader
Mist Buster
