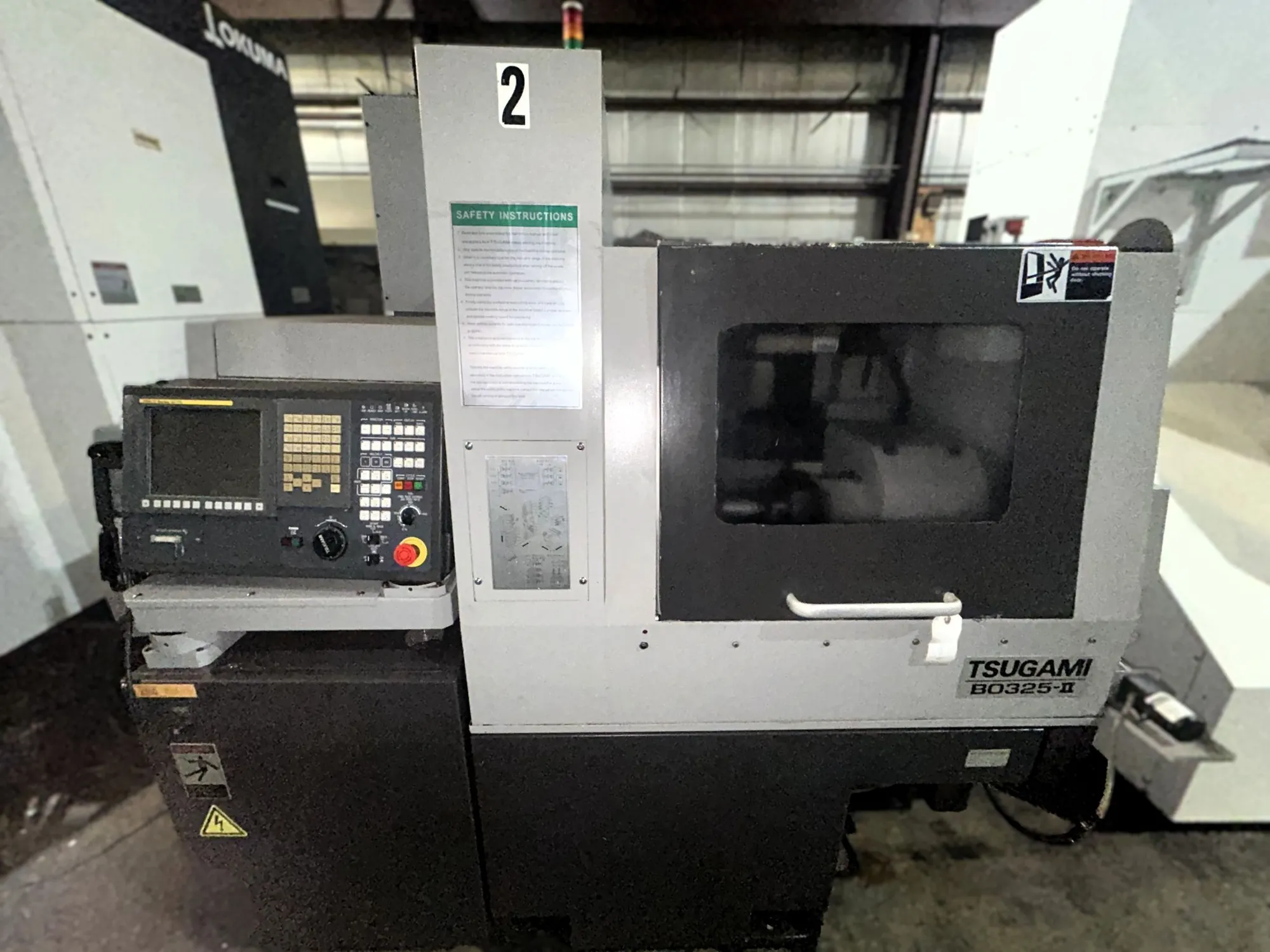

TSUGAMI B0325-II CNC Swiss Lathe, New in 2014.
Fanuc 0i-TD CNC Control.
LNS Chip Conveyor.
Robot.
Vibratory Bowl Feeder.
| Capacity | 32 mm | 1.2598" |
| Power | 3.7 kW | 5 hp |
| RPM | 8,000 RPM | 8,000 RPM |
| Control | CNC (Fanuc 0i-TD) | CNC (Fanuc 0i-TD) |
| Dimensions | 85" x 51" x 76" | 85" x 51" x 76" |
| Weight | 7716lbs | 7716lbs |
Rapid Traverse Rate
32 m/min (105 ft/min) [(X1, Y1, Y2,: 24 m/min (78.74 ft/min)]
Maximum Working Length
12.6"
Max. Number Of Tools
31
Tool Size
.625" x 3.94" (square) / .98" (round)
Main Spindle Speed
200 - 8000 rpm
Back Spindle Speed
200 - 8000 rpm
Maximum Machining Length
12.6" - Direct-Drive Guide Brush
Fanuc Oi-TD CNC Control
Robot.
Vibratory Bowl Feeder.
