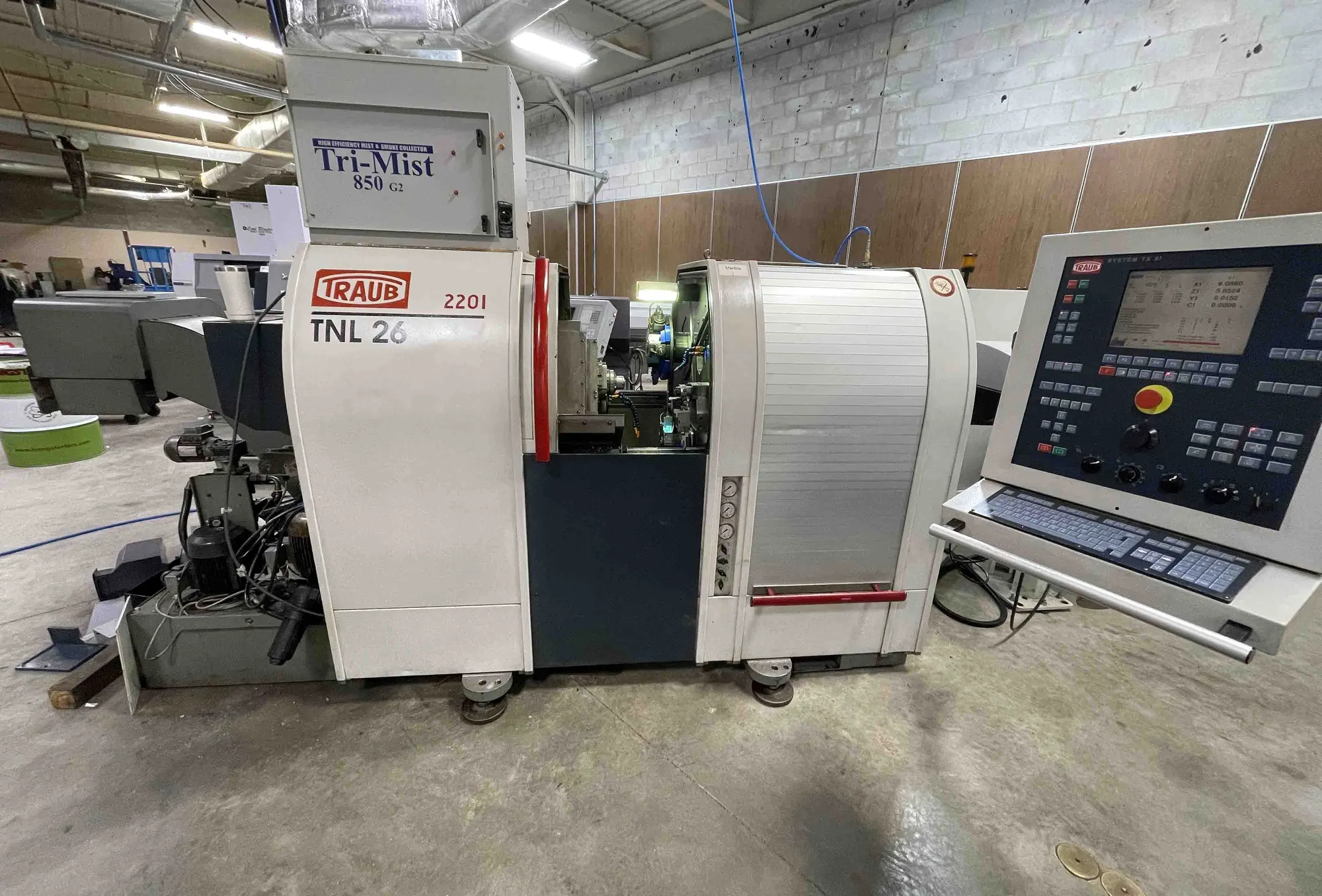

USED 2001 TRAUB TNL 26
Overview
High-quality TRAUB TNL 26 Swiss Type Automatic Screw Machine from 2001. Ideal for precision machining tasks. Carefully maintained, this used model delivers reliable performance, perfect for enhancing your production line.
Specs
Max Machining Length: 9.842" (250 mm)
Bar capacity: 1.024" (26 mm)
Main Spindle Speed: 8,000 RPM
Number of Tools: 34 Positions
Z-Axis Stroke (stationary guide bush) : 9.84" (250 mm)
Z-Axis Stroke (rotation buide bush) : 8.86" (225 mm)
Tool Carrier 1 Capacity: 12 Tools
X-Axis Stroke: 1.97" (50 mm)
Y-Axis Stroke: +/- 0.79" (20 mm)
Tool Carrier 2 Capacity: 12 Tools
X-Axis Stroke: 1.97" (50 mm)
Y-Axis Stroke: +/- 0.79" (20 mm)
Z-Axis Stroke: 3.94" (100 mm)
Tool Carrier 3 (Front) Capacity: 5 Tools
Diameter of Mount: 1.57" (40 mm)
Spacing: 2.13" (54 mm)
X-Axis Stroke: 14.57" (370 mm)
Z-Axis Stroke: 9.84" (250 mm)
Tool Carrier 4 (Rear) Capacity: 5 Tools
Diameter of Mount: 1.57" (40 mm)
Spacing: 2.13" (54 mm)
X-Axis Stroke: 2.87" (73 mm)
Y-Axis Stroke: +/- 1.97" (50 mm) Option
Approx Dimensions: 146" x 51" x 65"
Approx Machine Weight: 8,820 lbs
Equipped With
Traub System TX 8i CNC Control
EIA and ISO Code
RS-232 Interface
Full C-Axis for Main & Opposed Spindles
Pneumatic Guide Bushing Adaptive Air Pressure Option
34 Total Tool Holding (12 + 12 + 5 + 5 Stations)
Double Tool Capacity Compatible
Tri-Mist 850 Mist & Smoke Collector
Knoll Chip Conveyor
Lubricoolant System
Known issue- Machine Requires a Drive Replacement for functionality.
