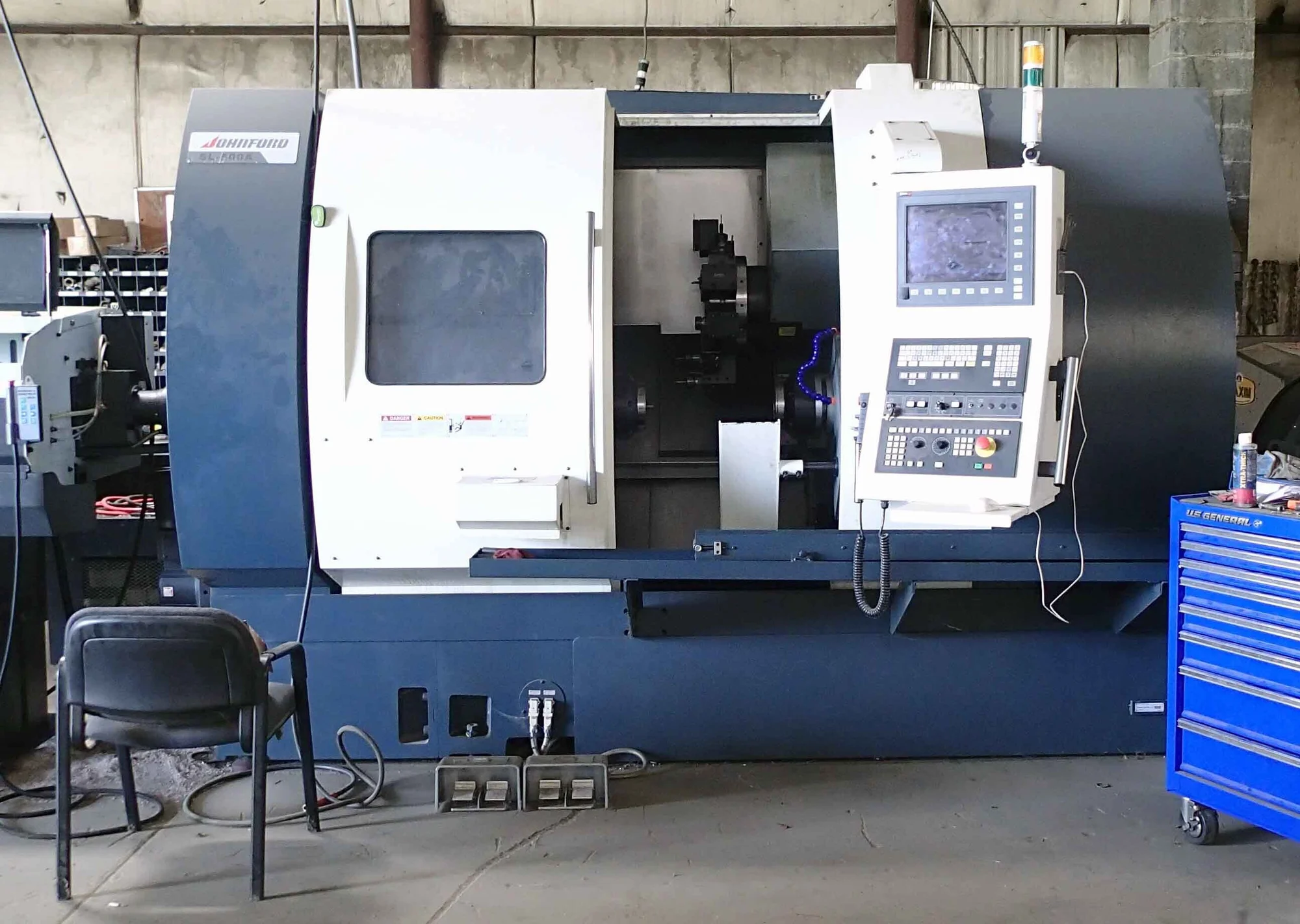

USED 2018 JOHNFORD SL-500A
Overview
2018 Johnford SL-500A CNC Lathe in used condition. Features: 22.8" swing, 28.0" machining length, 12.0" chuck size, 4.13" bar capacity, 35.0 horsepower, 3500 RPM max, 17.7" turning diameter, with tailstock. No live tooling or sub spindle.
Specs
Chuck Size: 12”
Swing Over Bed: 22.8”
Swing Over Cross: 17.7”
Center Distance: 31”
Y-Axis Travel: 4"
Bar Capacity: 4”
Spindle HP: 35 HP
Spindle Drive: 2 Speed
Spindle Speed: 2,800 RPM
Turret Tools (Live Tools): 12
Weight: 15,400 LB
Power Supply: 220 V, 3 Ph, 60 Hz
Equipped With
Fagor 8060T Conversational Control
Live Tooling- BMT65
Y-Axis
C-Axis
Hydraulic, Programmable Tailstock Body and Quill
Air Blast
Parts Catcher
Parts Conveyor
Bar Feeder Interface- Tracer 80V Bar Feeder
Manual Swing Down Toolsetter
Caterpillar Chip Conveyor
Soft Jaws
Work Light
Collets & Chucks Included (Front & Rear)
1 BMT-65 Axial Head
1 BMT-65 Radial Head
Coolant System with Splash Guards
2018 CNC Indexing Tracer 80V Bar Feeder
Bar Diameter: 3.149”
Bar Length: 12’
Magazine Capacity: 36 @ 10 mm
Guide Channels: 21, 33, 43, 53, 66, 81mm
Air Pressure: 85 PSI
Servo Motor Feeding System
Tracer LED External Light Display
Right Feeding
Power Supply: 220 V, 3 Ph, 50/60 Hz
Feeder Weight: 5513 LB
Lathe and feeder were installed May 2019- never used for production due to cancelled job.
