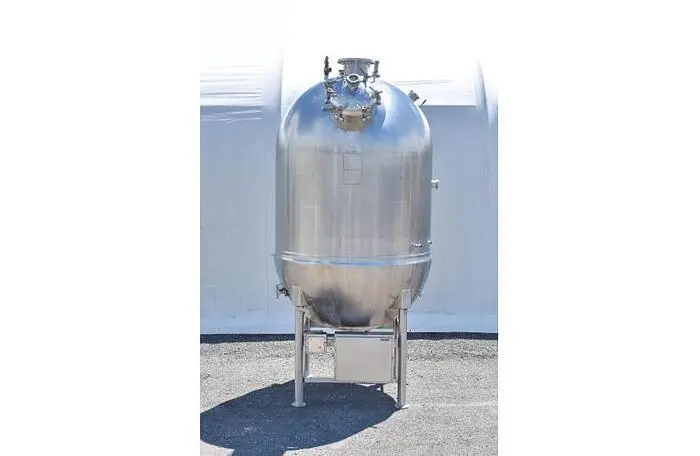

Used Hamilton 500 Gallon Jacketed Tank (Kettle), Full Vacuum / Evaporator

-manufacturer: hamilton kettles
-serial no. f 4525 & f 4526
-jacket pressure rated: 125 psi @ 344 deg. f
-rated for full vacuum: 25/fv
-national board no. 183
-crn no. d5058.6
-66” diameter x 48” straight side
-top inlets: 10" flanged, 4", one 4" & one 2", tri clamp
-top side ports: two 3", sanitary thread
-top lid: 17" diameter with 4" tri clamp
-center discharge: 3" sanitary thread
-bottom side port: 3.5 tri clamp
-with spray ball
-kettle is on four stainless legs
-overall height: 148"
-missing sightglass
-shipping dimensions: 70'' wide x 144'' long x 86'' high @3000LBS
