| X Axis | 40.2" | 1,021.1 mm |
| Y Axis | 20.1" | 510.54 mm |
| Z Axis | 20.1" | 510.54 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 24 | 24 |
| Taper | 40 | 40 |
| Table-W | 20.1" | 510.54 mm |
| Table-L | 40.2" | 1,021.1 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc OM-D CNC Control) | CNC (Fanuc OM-D CNC Control) |
| Dimensions | 107″ x 91″ x 95″ High Approx. | 107″ x 91″ x 95″ High Approx. |
| Weight | 11,023 lbs Approx. | 11,023 lbs Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.

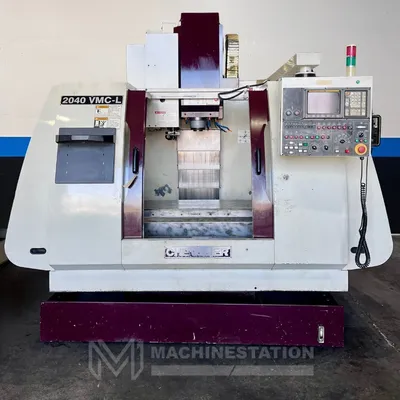

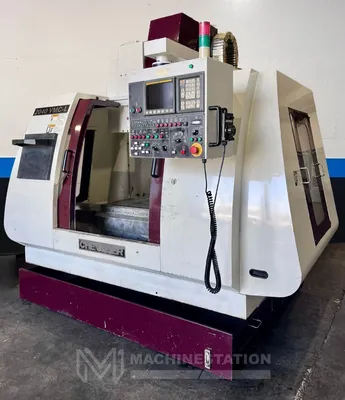

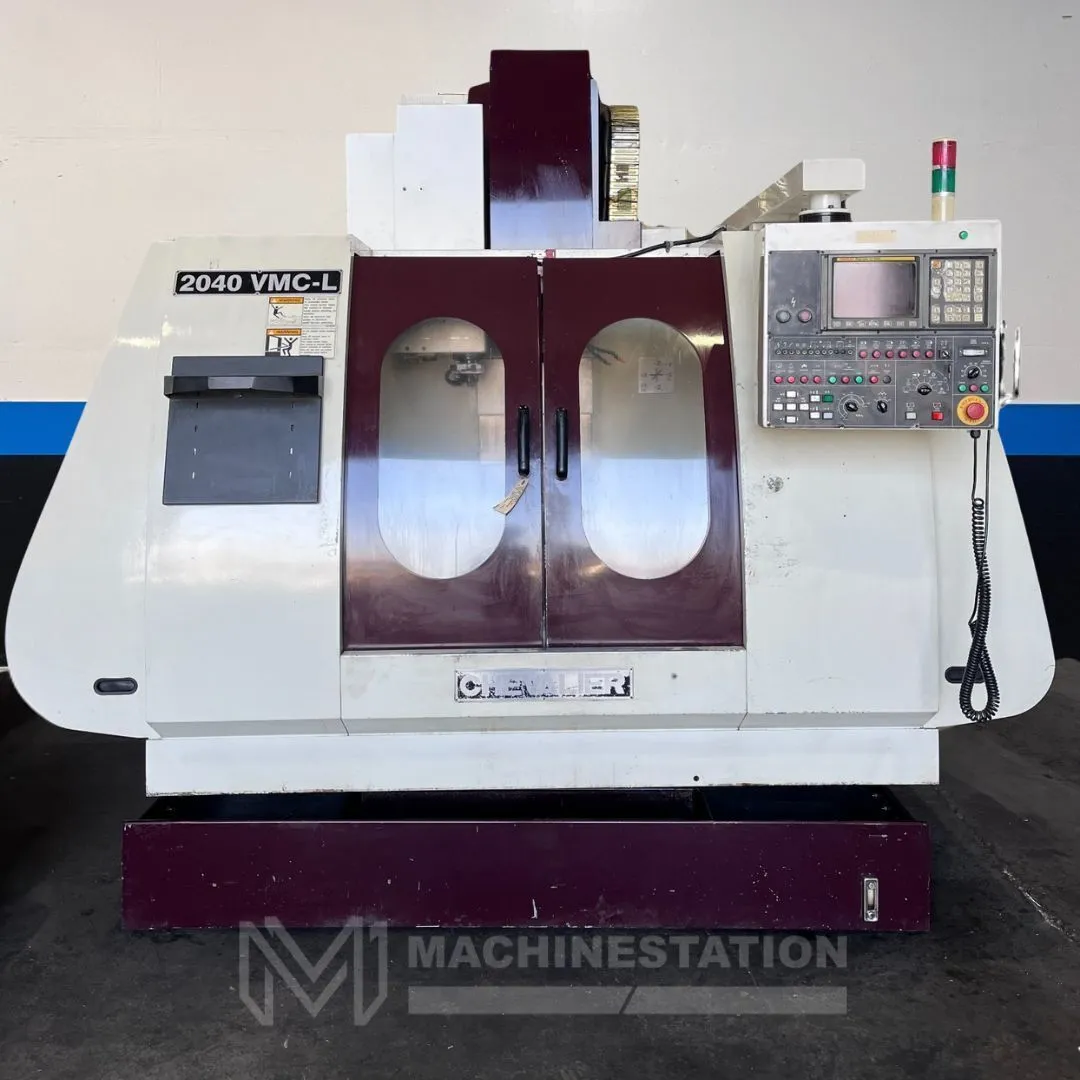

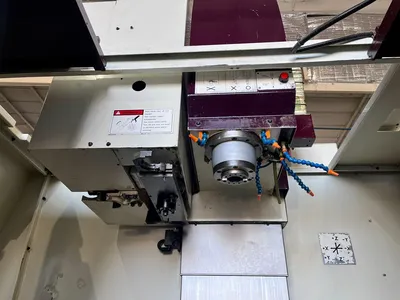

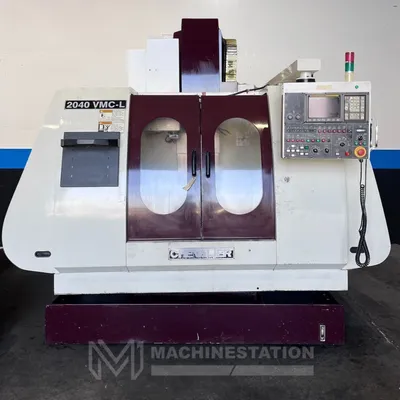

Key Features of the Chevalier 2040 VMC-L:

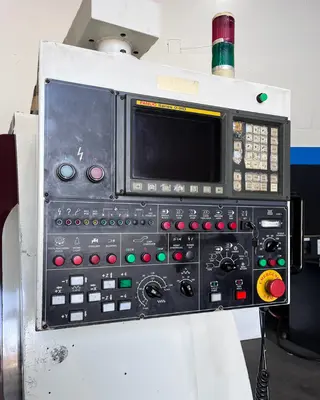

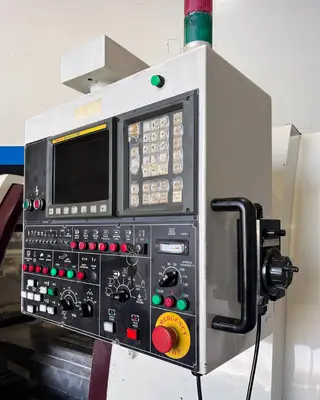

Fanuc OM-D CNC Control
15 HP High Torque Spindle
Spindle Orientation
Coolant System
Automatic Lubrication System
Travel:
X-Axis: 40.2″
Y-Axis: 20.1″
Z-Axis: 20.1″
Rapid Traverse Rates: 944 Inch Per Minute
Cutting Feedrates: 393 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.1″ – 25.2″

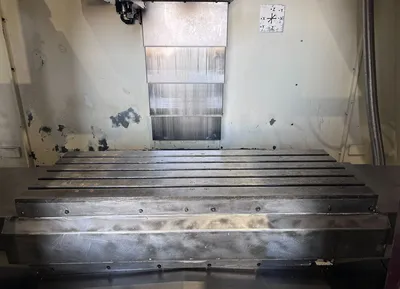

Table:
Length: 40.2″
Width: 20.1″
Number of Std T-Slots: 5
Max Weight on Table: 1102 lbs
Spindle:
Taper Size: 40
Speed Range: 8,000 RPM
Spindle Power: 15 HP

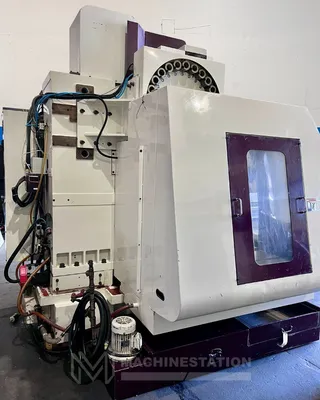

Automatic Tool Changer:
Capacity: 24 Tools
Max Tool Weight: 15.4 lbs
Max Tool Dia: 3.1″
Max Tool Length: 11.8″
Tool Changing Time: 3 Seconds
General:
Air Required: 100 psi 4 scfm
Power: 220v / 3-Phase
Overall Dimensions: 107″ x 91″ x 95″ High Approx.
Weight: 11,023 lbs Approx.
8,000 RPM High-Speed Spindle
24 Station Automatic Tool Changer
MPG Handwheel Control
Rigid Tapping
