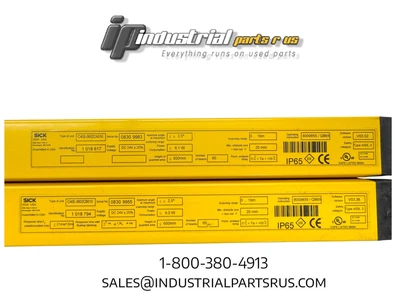

NEW SICK C4000

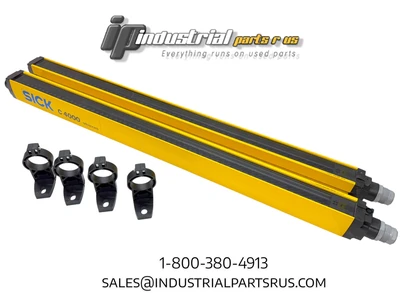

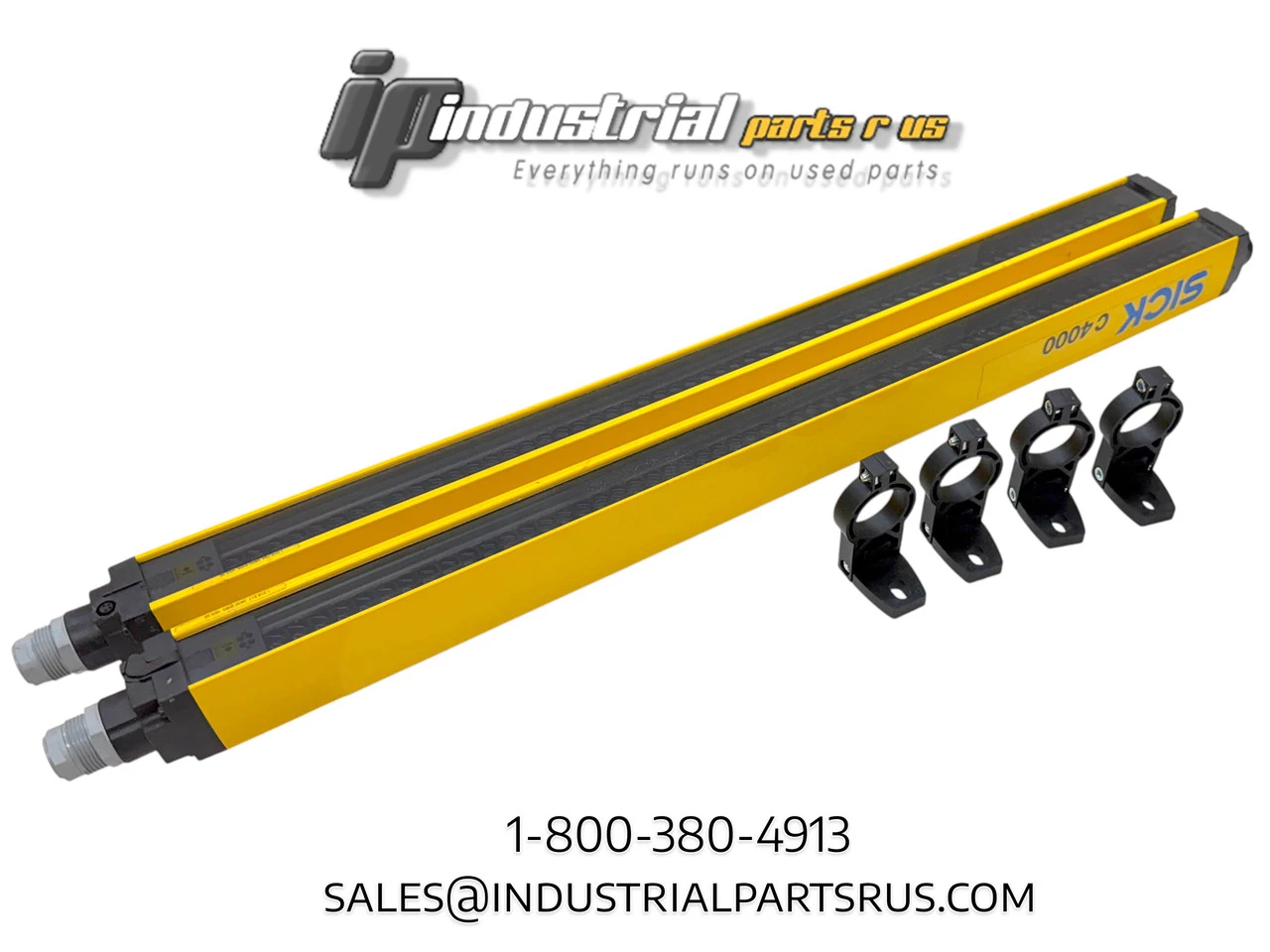

Sick C4000 Advanced Light Curtains C40S-0602CA010 / C40E-0602CB010 Emitter and Reciever with Mounting Brackets.  New, in Opened Box with 30 Day Warranty.
Application
Normal industrial environment
System part
Sender & Reciever
Resolution
20 mm
Scanning range
21 m
Protective field height
600 mm
Synchronization
Optical synchronization
Type
Type 4 (IEC 61496-1)
Safety integrity level
SIL 3 (IEC 61508)
Category
Category 4 (EN ISO 13849)
Performance level
PL e (EN ISO 13849)
PFH
D
 (mean probability of a dangerous failure per hour)
15 * 10
-9
 (EN ISO 13849)
43 * 10
-9
 (EN ISO 13849)
63 * 10
-9
 (EN ISO 13849)
T
M
 (mission time)
20 years (EN ISO 13849)
Safe state in the event of a fault
At least one OSSD is in the OFF state.
Functions
Delivery status
Protective operation
✔
Restart interlock
✔
External device monitoring (EDM)
✔
Deactivated
Beam coding
✔
Uncoded
Configurable scanning range
✔
0 m ... 6 m
Fixed blanking
✔
Deactivated
Floating blanking
✔
Deactivated
Safe SICK device communication via EFI
✔
Bypass
✔
Operating mode switching
✔
PSDI mode
✔
System connection
Direction of cable connection
Straight
Conductor cross section
0.75 mm²
Permitted cable length
50 m
1)
Display elements
7-segment display
Protection class
III (IEC 61140)
Supply voltage V
S
24 V DC (19.2 V ... 28.8 V)
1)
Residual ripple
≤ 10 %
2)
Enclosure rating
IP65 (EN 60529)
Ambient operating temperature
0 °C ... +55 °C
Storage temperature
–25 °C ... +70 °C
Air humidity
15 % ... 95 %, Non-condensing
Vibration resistance
5 g, 10 Hz ... 55 Hz (EN 60068-2-6)
Shock resistance
10 g, 16 ms (EN 60068-2-27)

SKU: IP16156
UPC: 721814247299
Condition: New
Availability: In Stock
Weight: 13.00 LBS
Width: 10.00
(in)
Height: 10.00
(in)
Depth: 40.00
(in)
Shipping: Calculated at Checkout
GTIN: 721814247299
Sensor Type: Solid State
Manufacturer: Sick
Enclosure Type: IP65
Guarded Area: 600mm
Series: C4000
Shelf: LC-19
Model: C4000
MPN: C40S-0602CA010
Voltage: 24V
Type: Safety Light Curtain
