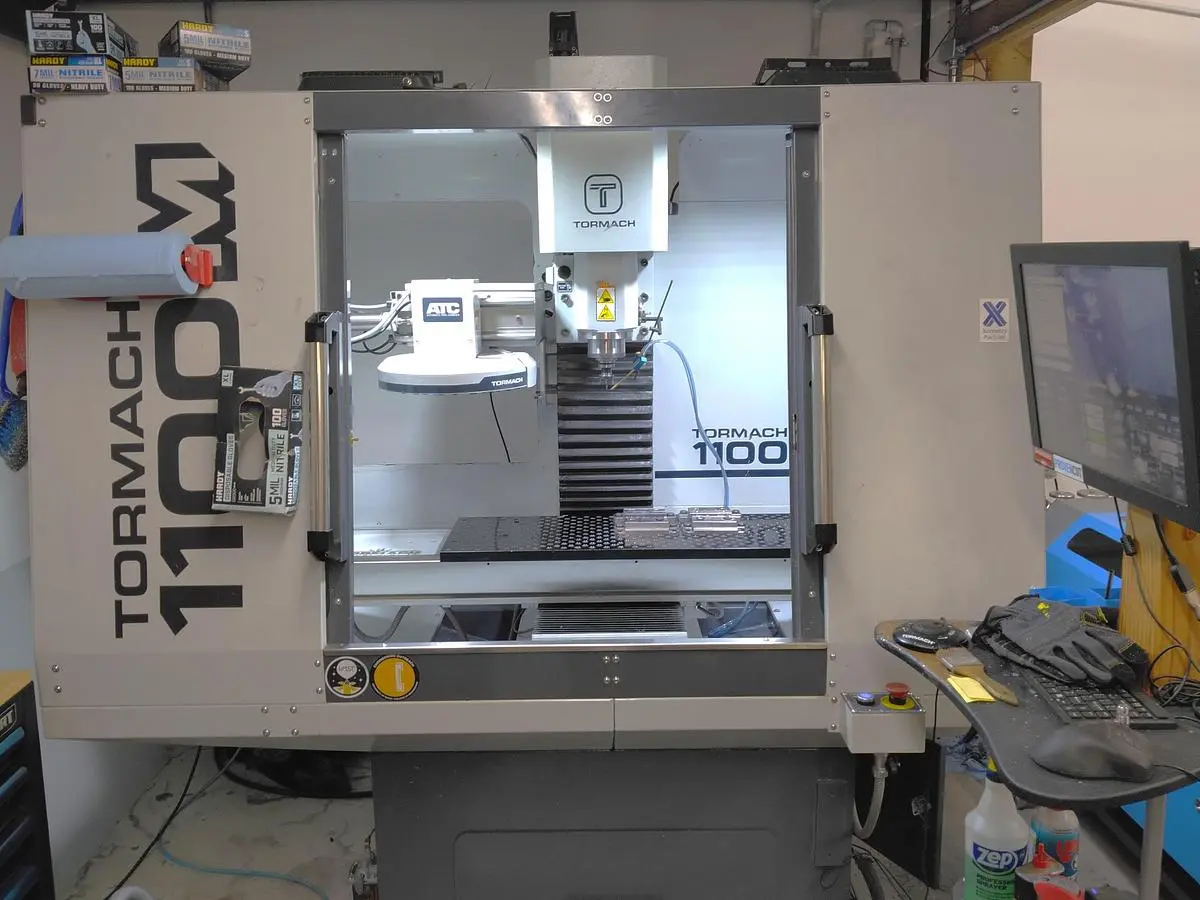

USED 2022 TORMACH 1100M

10 Station Umbrella Style Tool Changer (umbrella style)
Microarc 4th Axis (never used)
3 Jaw Chuck with 5C Collet Arbor
SMW 4th Axis Subplate
Fog Buster Coolant System (concentrate included)
Saunder’s Machine Works Fixture Plate
3" x 6" Machinist Vise Mini Pallet
Digital Passive Probe
Tool Height Setter (qty 2)
Quick Grip Tool Change Post
SMW Low Profile Modular Vise System
Removable Stops (qty 3)
Tension/Compression Tapping System
Full Collet Set (fraction 3/64-½ with extra ½,⅜,1/8 )
Tool Holder Set
16 qty ER20 Collet Holders
5 qty ½ set screw
3 qty ⅜ set screw
3 qty 5/16 set screw
4 qty ¼ set screw
2 qty JT1 drill chuck
4 qty JT2 drill chuck
3 qty JT6 drill chuck
QM Modular High Feel Steel Milling Head
1 inch Shear Hog Aluminum High Feed Milling Head
¾ inch Shear Hog Aluminum High Feel Milling Head
2 qty Slitting Saw Holder
Brand New Slitting Saw Set in Various Milling Widths and Diameters
Superfly Face Mill
2 inch Face Mill (2 tooth)
Multiple inserts for all insert milling tools listed above for both steel and aluminum
6" Machinist Vice (includes steel jaw set and machinable steel jaws)
V-Block Set
Automatic Oiler Kit
Conversational Programming

The 2022 Tormach 1100M CNC machine is a versatile and robust machining center tailored for precision tasks. It features a Tormach PathPilot Control System, offering an intuitive interface and a seamless operating experience. This machine is equipped with a 34" x 9.5" table, able to support up to 500 lbs, making it suitable for various machining projects. The X, Y, and Z axes have travels of 18", 11", and 16.25" respectively, providing ample room for intricate work.

This unit includes a premium package, featuring a never-used Microarc 4th axis table, and a 10-station umbrella-style automatic tool changer for efficient operations. Additionally, it is outfitted with a tool setter and digital passive probe, enhancing precision and ease of use. The spindle, characterized by an R8 taper and a speed of up to 7,500 RPM, is driven by a 2 HP motor, ensuring reliable performance. With spindle-to-table and spindle-to-column distances of 18" and 11", the setup is conducive to flexible machining.

Requiring a 230V single-phase power supply, the Tormach 1100M is a pragmatic choice for workshops needing a compact solution without compromising capability. The machine's dimensions are 69" x 57" x 96", with a weight of 1,600 lbs, making it a formidable yet manageable choice for various industrial applications.

Machine Control: Tormach PathPilot Control System
Table size: 34" x 9.5"
Maximum Weight on Table: 500 lbs
X-axis travel: 18"
Y-Axis Travel: 11"
Z-Axis Travel: 16.25"
Spindle taper: R8 Taper
Spindle Speed: 7,500 RPM
Spindle Motor: 2 HP
Distance Spindle Nose to Table Top: 18"
Spindle Centerline to Column: 11"
Tool Magazine Capacity: 10 Station Umbrella Style Tool Changer
Power Requirement: 230V Single Phase
Machine Dimensions LxWxH: 69"x57"x96"
Machine Weight: 1,600 lbs
