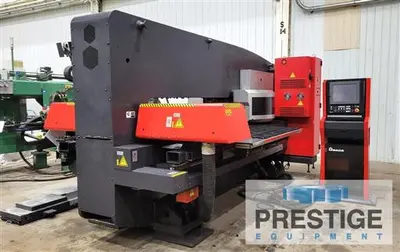

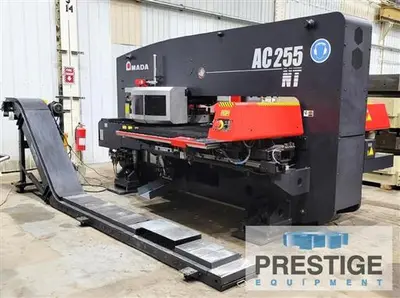

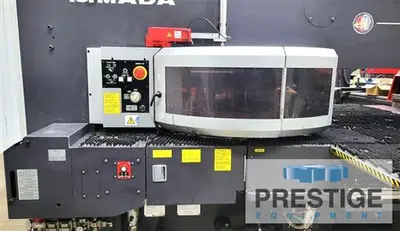

USED 2008 AMADA AC255NT

CAPACITY:
Tonnage Capacity: 22 Tons
Table Travel: 50" x 50"
Maximum Material Thickness: 1/8"
Maximum Punch Diameter: 3-1/2"
Hit Rate: 480 HPM
Hit Rate 1" Pitch: 370 HPM
Marking Speed: 900 HPM
X-Axis Positioning Speed: 3,950 IPM
Y-Axis Positioning Speed: 2,362 IPM
Stroke Length: 1.65"
Approximate Machine Weight: 26,437 Lbs

Equipped With:

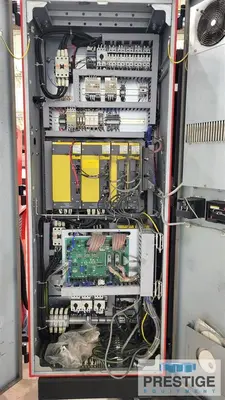

Fanuc AMNC-NT CNC Control & Digital AC Servo Drives
AC Servo Driven Electric Punch Drive
Brush Table

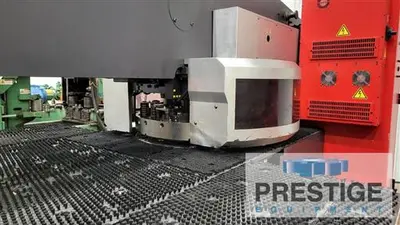

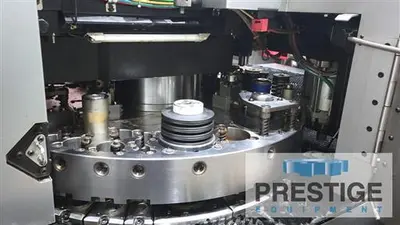

51-Station Turret With (4) Auto Index Stations (No Tooling or Holders Included)

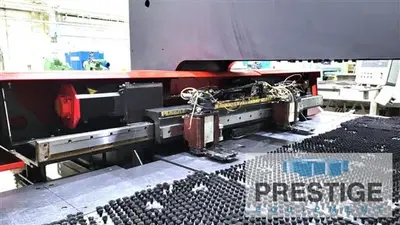

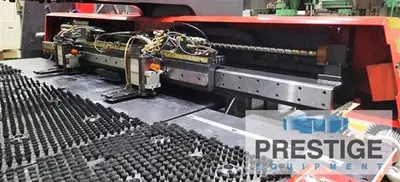

Auto Sheet Repositioning

Features:
Fanuc AMNC-NT CNC Control
AC Servo Driven Electric Punch Drive
Brush Table
51-Station Turret
(4) Auto Index Stations
