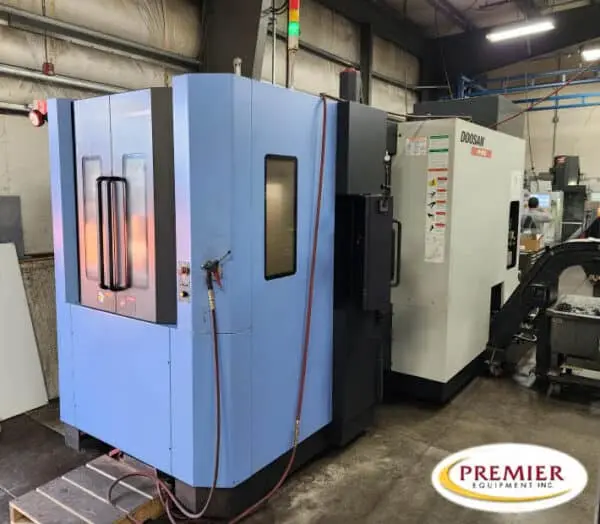

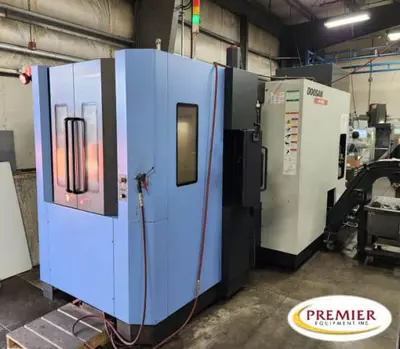

Doosan HP4000 CNC Horizontal Machining Center – 2012
X axis travel 600mm (23.6 inches)
Y axis travel 560mm (22.0 inches)
Z axis travel 600mm (23.6 inches)
Pallet table size 400mm x 400mm (15.75″ x 15.75″)
Allowable Load 400kg (880 pounds)
Maximum Part Swing 600mm (23.6”) Diameter x 800mm (31.5”) Height
Indexing
Changing method Rotary shuttle
Pallet change time 7 seconds
SPINDLE:
Spindle nose to pallet center 150 – 750mm (5.9-29.5 inches)
Spindle center to pallet top 50 – 610mm (1.97-24.0 inches)
Big Plus Spindle System ISO No. 40
Spindle speed range 140 – 14,000 RPM
A.C. spindle motor (15 min.) 22kW (30 HP)
Fanuc Series 31iA CNC Control
60 ATC
14K rpm spindle
0.1 degree indexing on table
Laser tool setter. Renishaw NC4
Spindle Probe. Renishaw RMP40
**Will sell with a bunch of tombstones and some holders. No vices though. Just spent 15,000 on the tombstone combo pictured
