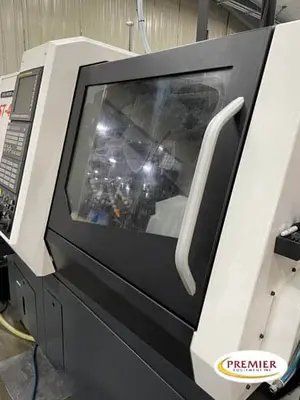

DMG Mori Sprint 20/5 – 2018

Complete machining of workpieces measuring up to ø 0.8 × 23.6 in in a footprint of under 21.5 ft²
Max. workpiece diameter 0.8 in.
Max. workpiece length 7.1 in.
Max. bar diameter 0.8 in.
Max. X-axis travel 2 in.
Max. Y-axis travel 12.8 in.
Max. Z-axis travel 2.4 in.
Main spindle 10,000 rpm, 10.3 ft lb, 3 hp (nominal)
Counter spindle 10,000 rpm, 3.5 ft lb, 2 hp (nominal)
4 driven tool stations as standard
Driven tools spindles 6,000 rpm, 1.1 ft lb, 1.2 hp (nominal)
