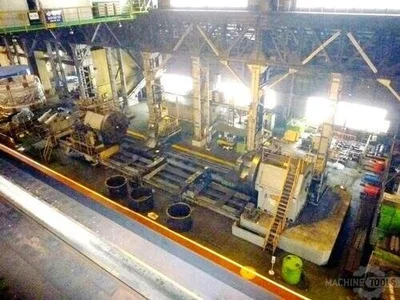

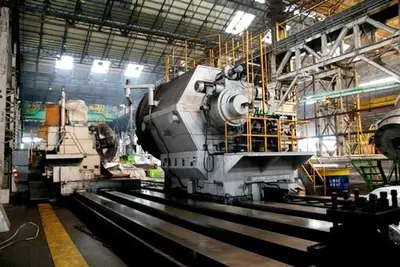

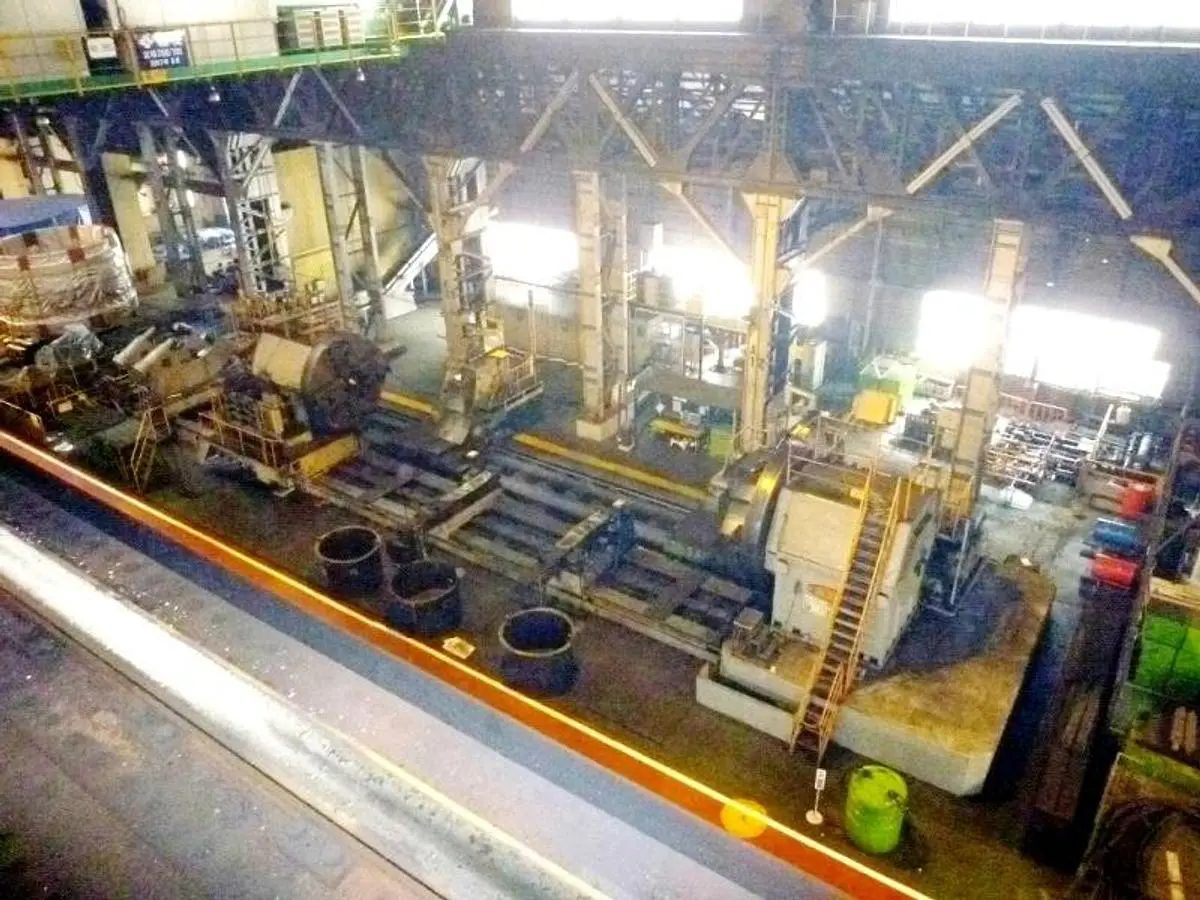

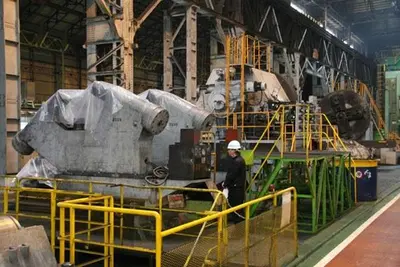

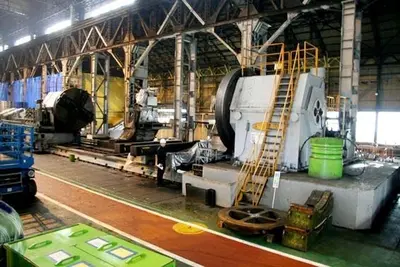

USED 1976 TOSHIBA LCS-40200A

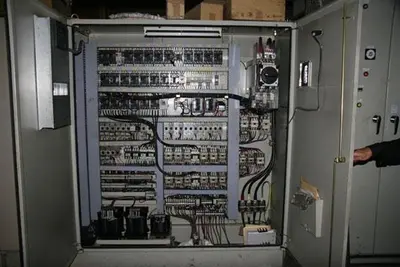

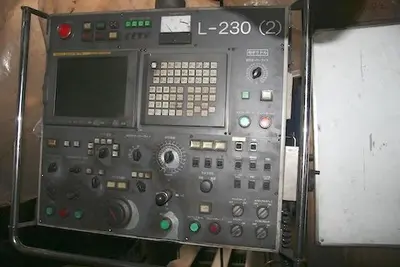

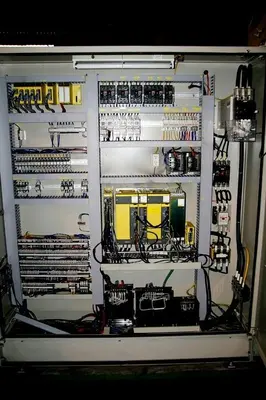

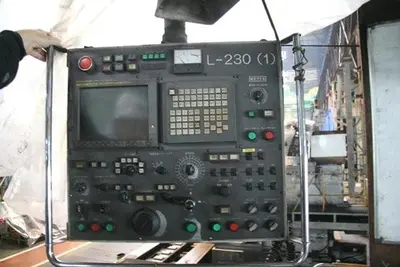

Rebuilt & Retrofitted in 20082x Fanuc 18iT B CNC Control Panels2x Support2x Heavy Duty Steady Rests: 200 Tons Each Diameter - 600 - 2,000 mm

Manufacturer: Toshiba
Model: LCS 40200A
Year: 1976
Condition: Used
Stock Number: 5654282
Between centers: 20,000 mm
Capacity between centers: 350 Ton
Swing over slide: 5,000 mm
Swing over carriage: 4,000 mm
Center height over bed: 2,500 mm

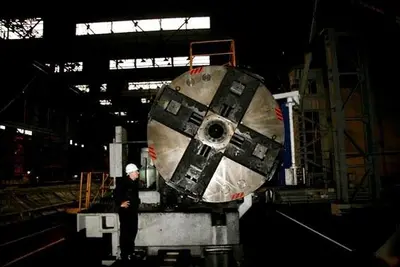

Faceplate diameter on main spindle: 3,500 mm
Faceplate diameter on sub spindle: 3,000 mm
Chuck speed: 0.4 - 40 rpm
Cutting feed of carriage - longitudinal: 0.3 - 120 mm/min
Cutting feed of carriage - cross: 0.15 - 60 mm/min
Rapid traverse carriage - longitudinal: 2,000 mm/min
Rapid traverse carriage - cross: 1,000 mm/min
Spindle motor: DC 500 kW
Max torque on chuck: 40,000 kh/m
Max cutting force: 20,000 kg
Machine height: 4,500 mm
Floor space: 9,000 x 30,000 mm
New weight: 433 Ton
