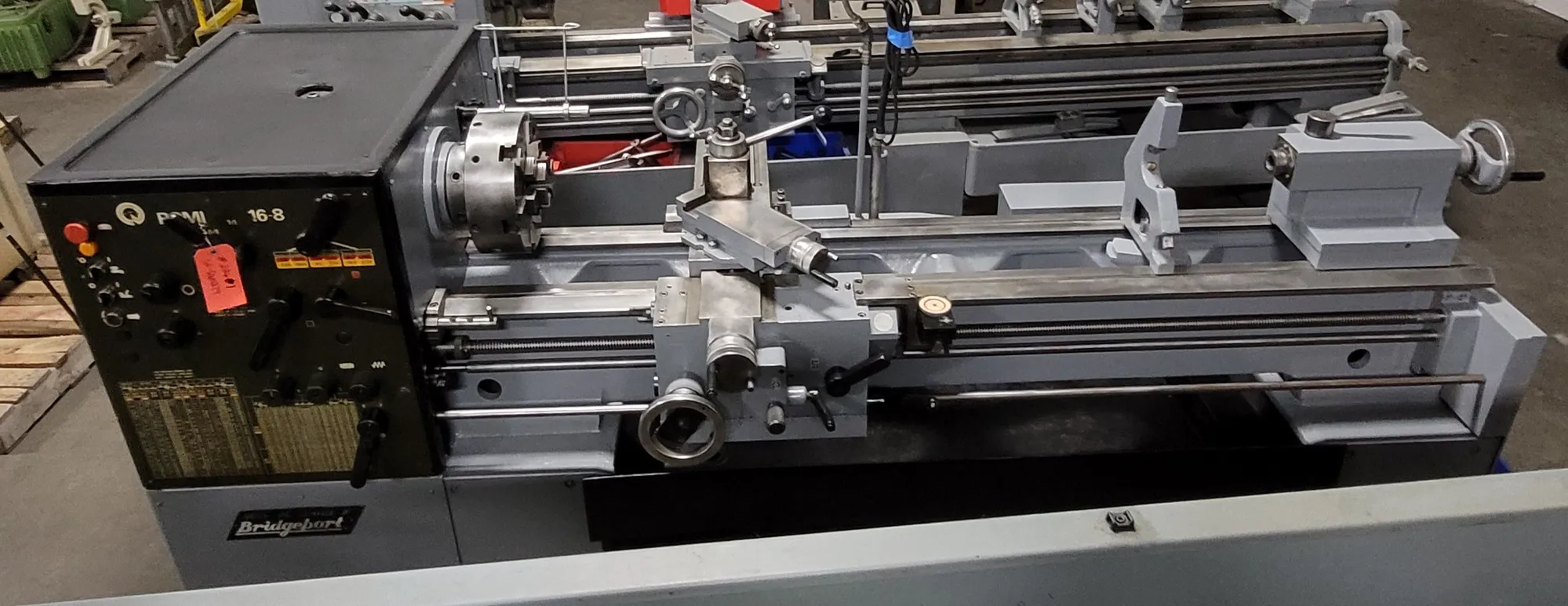

Bridgeport Romi 16" x 60" Engine Lathe, model 16-8, offers 16.5" swing, 60" centers, and 2.25" spindle bore. Features 1,800 RPM, 7.5 hp, and equipped with quick-change toolpost, threading capability, steady rest, and more. Ideal for precise machining tasks.
| Swing | 16.5" | 419.1 mm |
| Centers | 60" | 1,524 mm |
| Spindle Bore | 2.25" | 57.15 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 1,800 RPM | 1,800 RPM |
| Swing Over Cross Slide | 9.625" | 244.47 mm |
| Dimensions | 127 x 36 x 48 | 127 x 36 x 48 |
| Weight | 4500 Lbs | 4500 Lbs |
Bridgeport Romi 16-8 Engine Lathe Swing 16 1/2",
Distance Between Centers 60",
Swing Over Cross Slide 9 5/8",
Hole Through Spindle 2 1/4",
Width of Bed 13 3/8",
Spindle Nose D1-6",
Spindle Speed range 22.4 - 1800 RPM,
Tailstock Spindle Taper 4 MT,
Tailstock Spindle Travel 6 5/8",
12" 6 Jaw Chuck ,
Dimensions 127" x 36" x 48" H,
Weight 4,500 Lbs,
S/N: 205-35193
Wire Diagram Number: Q60279
INCH/METRIC THREADING CAPABITIY
STEADY REST
ALORIS MODEL: CXA QUICK CHANGE TOOLPOST
THREAD DIAL INDICATOR
ADJUSTABLE CARRIAGE STOP
LIVE CENTER FOR TAILSTOCK
3/4" CAPACITY DRILL CHUCK FOR TAILSTOCK
COOLANT SYSTEM WITH REMOVABLE CHIP PANS
INDUCTION HARDENED & GROUND BED WAYS
7-1/2 HORSE POWER MAIN MOTOR
