USED 2019 KEYENCE IM-7030

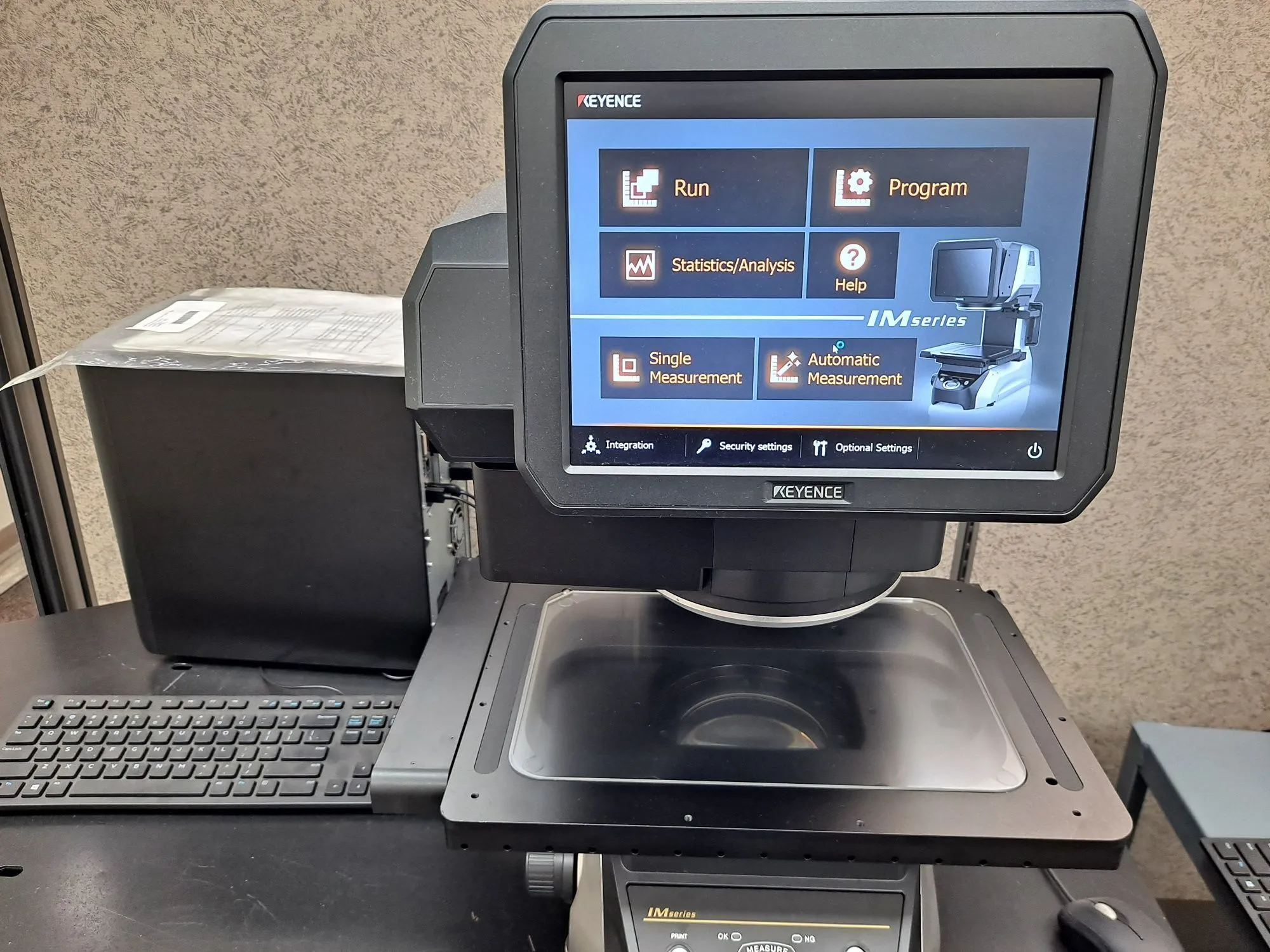

Keyence IM-7030T VisionSystem Inspection Machine (2019)

Type Head- Wide Stage Model Incorporating Programmable Ring-Illumination Probe Unit
Image Sensor 1” 6.6 Mega Pixel MonoChrome CMOS
Display 10.4” Lcd Monitor (XGA: 1024 X 768)
Receiver Lens Double Telocentric Lens
Imagine Measurement /Field Of View Wide-Field Measurement Mode: 300 Mm X 200 Mm 11.81” X 7.87” (4xr50) High Precision Measurement Mode:225x125 Mm 8.86”X4.92”
Minimum Display Unit 0.1
Repeatability W/O Stage Movement Wide-Field Measurement Mode: 1, High Precision Measurement Mode: 0.5
With Stage Movement Wide-Field Measurement Mode: 2, High Precision Measurement Mode: 1.5
Measurement Accuracy W/O Binding Wide-Field Measurement Mode: 5, High Precision Measurement Mode: 2
With Binding Wide-Field Measurement Mode: (7+0.02), High Precision Measurement Mode: (4+0.02 L)
Light Probe Measurement
Measurable Area (XY) 190x90 Mm 7.48”X354”
Maximum Measurement Depth 30mm 1.18”
Light Probe Diameter 3mm
Measuring Force 0.015n
Repeatability 2
Measurement Accuracy (8+0.02l)
Interface
Lan Rj45 (10base-T/100base-Tx/1000base-T)
USB 3.1 4 Ports (Rear:4)
USB 2.0 Series A 2 Ports (Front:2)
External Remote Input Non-Voltage Input (With And Without Contact)
External Output Ok/Ng/Fail/Meas. Photomos Output Rated Load 24 Vdc 0.5 A On Resistance 50 Or Lower
Record Hard Disk Drive 500gb
Illumination System Transparent Telecentric Transparent Illumination
Ring Four Division, Multi-Angle Illumination (Electric) Slit Ring (Directivity) Illumination (Electric)
XY Stage Moving Range 200 X 100 Mm 7.87”X 3.94” (Electric)
Z Stage Moving Rage 75mm 2.95” (Electric)
Power Supply Power Voltage 100-240 Vac, 50/60 Hz
Environmental Resistance Ambient Temperature +10 C To 35 C +50 F To 95 F
Relative Humidity 20% Rh To 80% Rh (No Condensation)
Weight Approx. 33 Kg

Head
Contact Height Measurement Unit
Image sensor

1” 6.6 mega pixel monochrome CMOS
Display
10. 4” LCD monitor (XGA: 1024 × 768)
Receiver lens
Double telocentric lens
Image measurement
Field of view
Wide-field measurement mode: 300 mm × 200 mm 11.81" × 7.87" (4× R50)
High-precision measurement mode: 225 × 125 mm 8.86" × 4.92"
Minimum display unit
0.1 µm
Repeatability
W/o stage movement
Wide-field measurement mode: ±1 µm
High-precision measurement mode: ±0.5 µm
With stage movement
Wide-field measurement mode: ±2 µm
High-precision measurement mode: ±1.5 µm
Measurement accuracy (±2σ)
W/o binding
Wide-field measurement mode: ±5 µm*1
High-precision measurement mode: ±2 µm*2
With binding
Wide-field measurement mode: ±(7 + 0.02 L) µm*3
High-precision measurement mode: ± (4 + 0.02 L) µm*4
Light probe Measurement
Measurable area (XY)
190 × 90 mm 7.48" × 3.54"
Maximum measurement depth
30 mm 1.18"
Light probe diameter
ø3 mm
Measuring force
0.015 N
Repeatability
±2 µm*5
Measurement accuracy
±(8 + 0.02 L) µm*6
Height Measurement
Measurement range
0 to 75 mm 0" to 2.95"
Measuring force
0.3 N
Measurement accuracy (XY)
±0.2 mm*7 ±0.0079"
Minimum display unit
1 µm
Measurable area (XY)
Wide-fi eld measurement mode: 145 × 95 mm 5.71" × 3.74"
High-precision measurement mode: 107.5 × 95 mm 4.23" × 3.74"
Repeatability
±2 µm*8
Measurement accuracy
±7.5 µm*9
Interface
LAN
RJ-45 (10BASE-T/100BASE-TX/1000BASE-T)
USB 3.1
4 ports (rear: 4)
USB 2.0 series A
2 ports (front: 2)
External remote input
Non-voltage input (with and without contact)
External output
OK/NG/FAIL/MEAS.
PhotoMos output
Rated load 24 VDC 0.5 A
ON resistance 50 mΩ or lower
Record
Hard disk drive
500 GB
Illumination system
Transparent
Telocentric transparent illumination
Ring
Four division, multi-angle illumination (electric)
Slit ring (directivity) illumination (electric)
XY stage
Moving range
200 × 100 mm 7.87" × 3.94" (electric)
Withstand load
7.5 kg
Z stage
Moving range
75 mm 2.95" (electric)
Power supply
Power voltage
100-240 VAC, 50/60 Hz
Power consumption
430 VA or lower
Environmental resistance
Ambient temperature
+10°C to 35°C +50°F to 95°F
Relative humidity
20% RH to 80% RH (no condensation)
