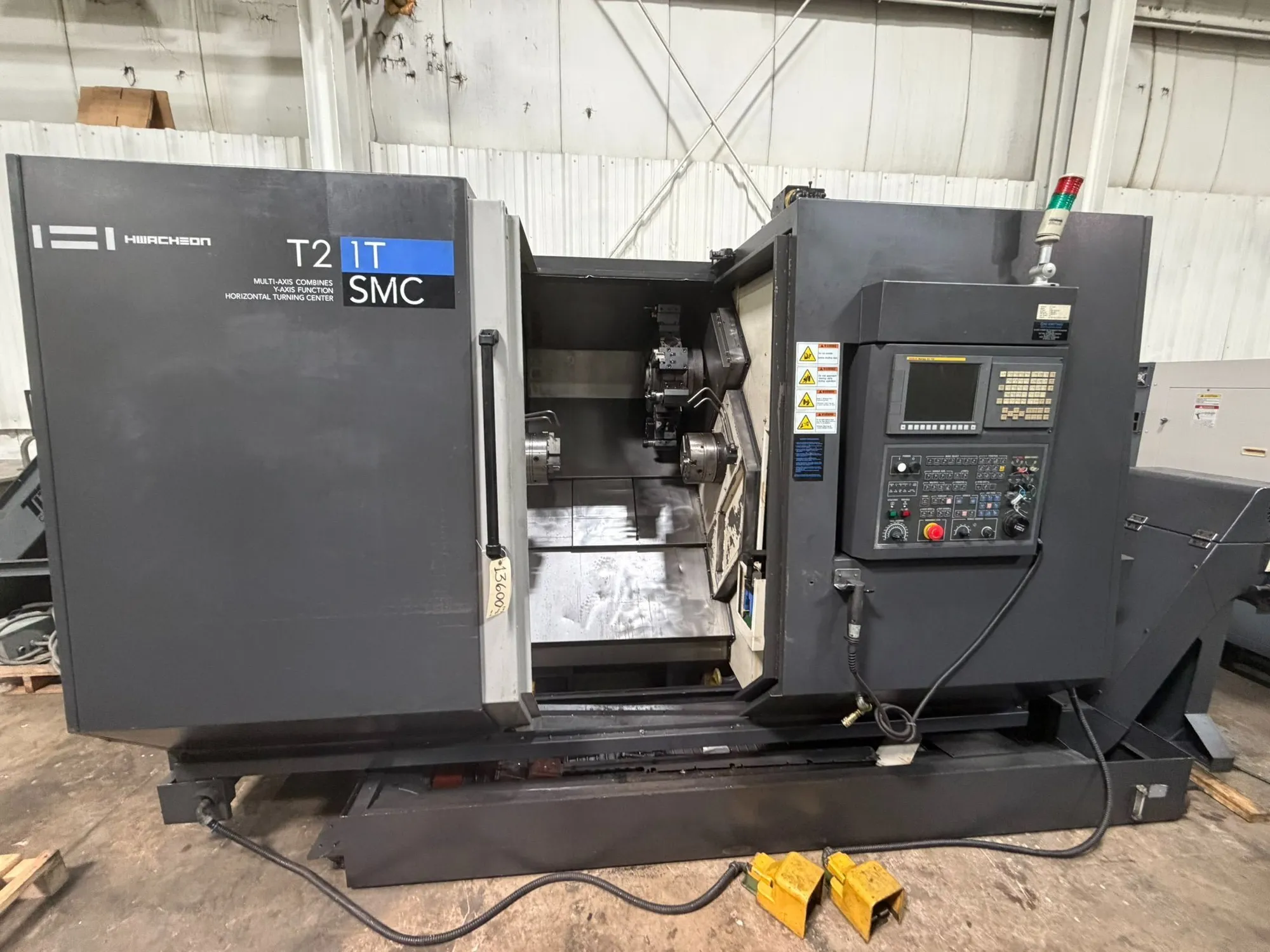

HWACHEON MODEL T2-1T SMC MULTI AXIS CNC LATHE TURNING CENTER, NEW 2013, MAIN AND SUB SPINDLES, C-AXIS, 12 POSITION TURRET WITH LIVE TOOLING, PARTS CATCHER, FANUC Oi-TD CNC
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.56" | 65.024 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 18.1" | 459.74 mm |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| Control | CNC (FANUC Oi-TD) | CNC (FANUC Oi-TD) |
Bar Capacity 2.56
C Axis Index 0.001
Center Distance 24.5
Chuck Size Dual 8
Control Fanuc 0i-TD
Live Tooling Speed 6000
Machine Dimensions 122x86x83
Machine Weight 17000
Number of Axes 5
Rapid Traverse (B) 1181
Rapid Traverse (X/Z) 1181
Spindle Motor Cont. 20
Spindle Nose A2-6
Spindle Speed 5000
Swing 34.6
Travel (B) 21.62
Travel (X) 9.65
Travel (Z) 20.47
Turning Diameter 18.1
Turret Indexing Time 0.1
Turret Stations 12
FANUC Oi-TD CNC CONTROL

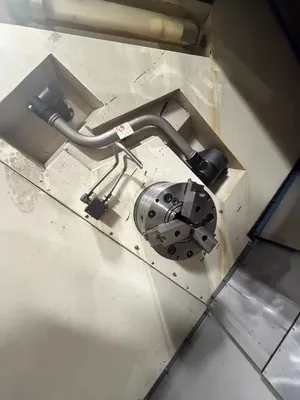

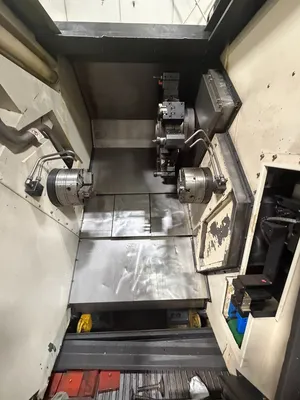

MAIN AND SUB SPINDLES
C-AXIS

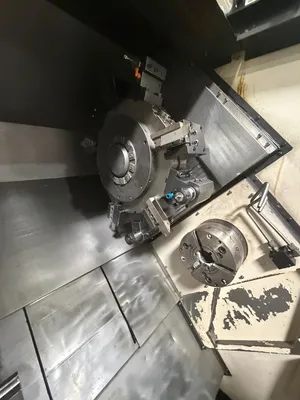

12 POSITION TURRET WITH LIVE TOOLING

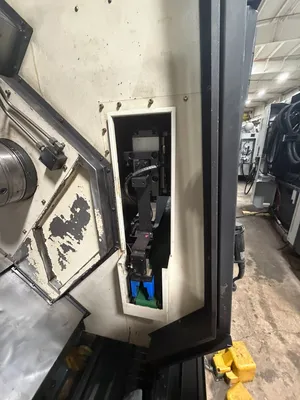

PARTS CATCHER
CHIP CONVEYOR
COOLANT SYSTEM
