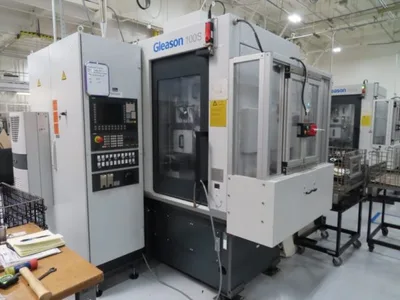

The Sprinter for Gears with Short Face Widths up to 100 mm

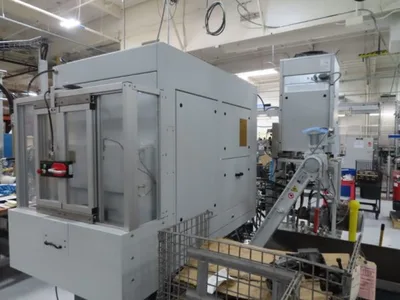

The 100S Gear Shaping Machine is ideally suited for small face widths, for shaping spur and helical gears, internal and external, and for crowned and tapered gears. With only 6 m2 the 100S is one of the most compact machines of its class.
| Guide | Spur | Spur |
| Maximum External Gear Diameter | 100 mm | 3.937" |
| Maximum Internal Gear Diameter | 100 mm | 3.937" |
| Diametral Pitch | 8 | 8 |
| Stroke | 30 mm | 1.1811" |
| Cutter Spindle Diameter | 85 mm | 3.3465" |
| Control Manufacturer | Siemens | Siemens |
| Control | CNC (Sinumerik 840D SL) | CNC (Sinumerik 840D SL) |
| Dimensions | 3,380 x 3,950 x 3,015 mm (LxWxH) | 3,380 x 3,950 x 3,015 mm (LxWxH) |
| Weight | 7,800 kg | 7,800 kg |

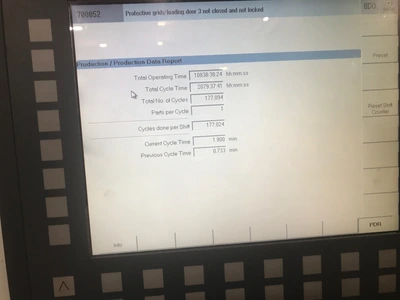

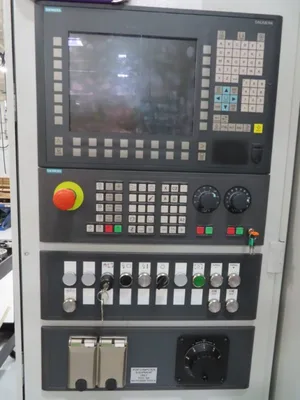

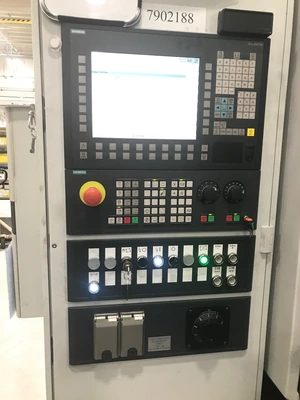

Siemens Sinumerik 840D SL Control

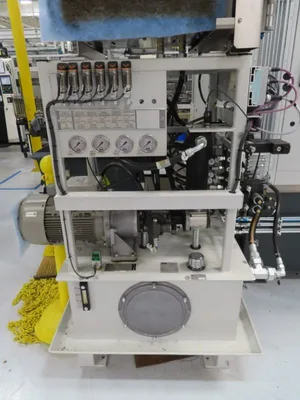

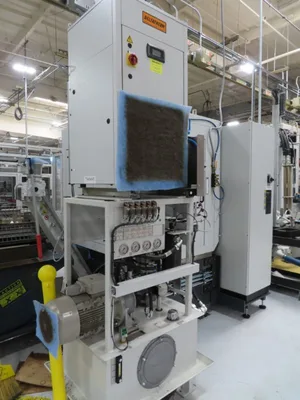

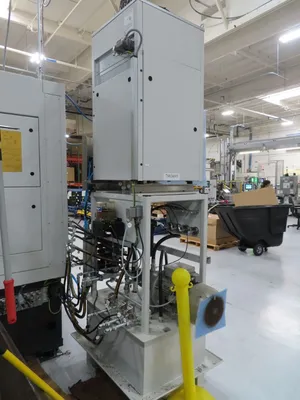

Hydraulic System
180 Degree Load System
HSK-63 Spindle
Auto Stroke Adjustment

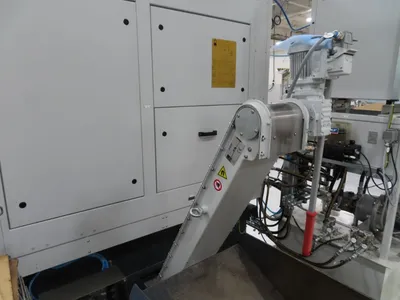

Chip Conveyor
Chip Basket
Flexlink Automation
Festo Pneumatics
Rittal Panel Conditioners

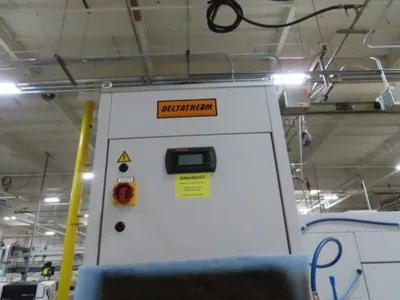

Chiller

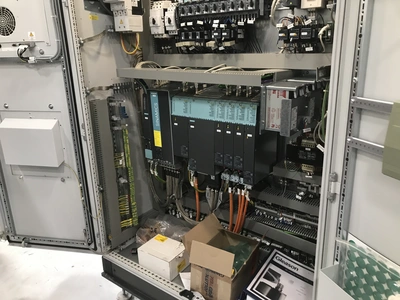

480/3/60, 35 KvA Motor & Controls
