| Swing | 39.9" | 1,013.5 mm |
| Machining Length | 43.3" | 1,099.8 mm |
| # Axis | 2 | 2 |
| Chuck Size | 24" | 609.6 mm |
| Bar Capacity | 10.2" | 259.08 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 550 RPM | 550 RPM |
| Turning Dia | 35.4" | 899.16 mm |
| Tailstock | No | No |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc 0i-TD CNC Control) | CNC (Fanuc 0i-TD CNC Control) |
| Dimensions | 180″ x 80″ x 98″ High | 180″ x 80″ x 98″ High |
| Weight | 33,000 lbs. Approx. | 33,000 lbs. Approx. |
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Features:

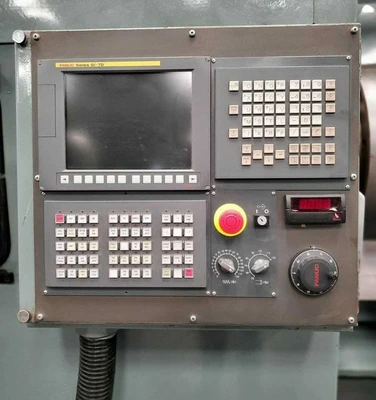

Fanuc 0i-TD CNC Control
Long Bed Machine
6-Station Turret Box Ways Design
Geared Head spindle for powerful torque
Hydraulic Turret
Coolant System
Automatic Lubrication system
Note: Machine was retrofitted with New Fanuc Control in 2013/2014

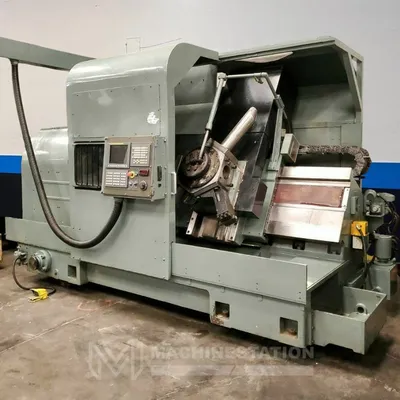

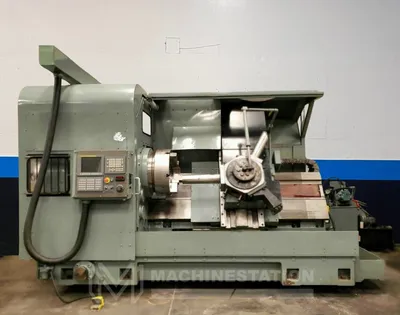

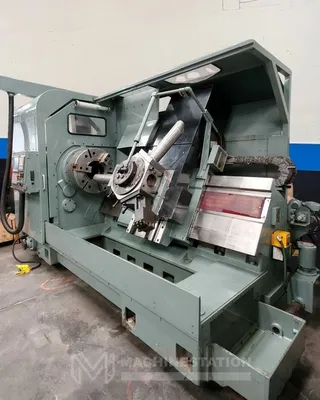

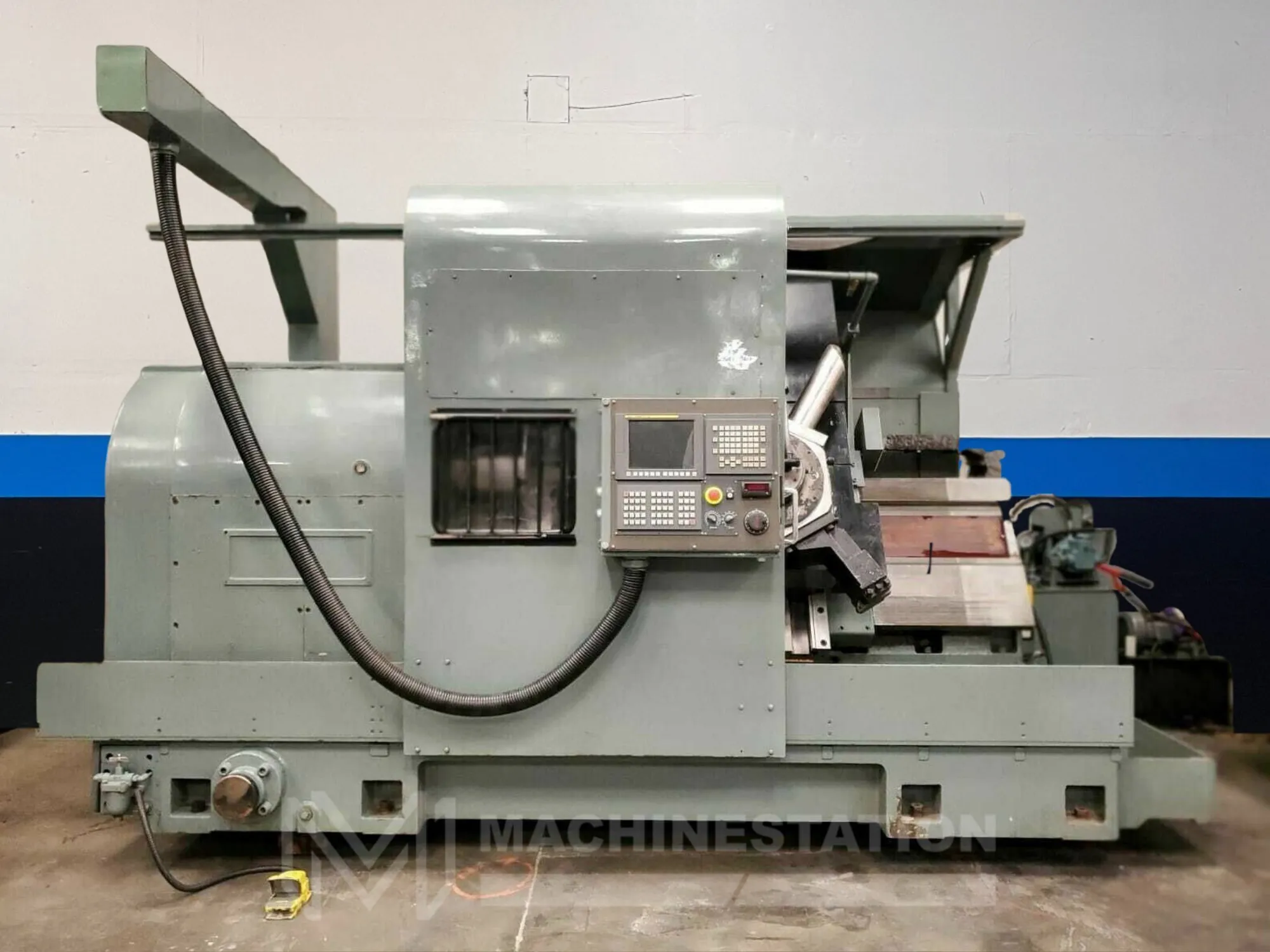

MORI SEIKI SL-8 CNC Specifications:
Max Turning Diameter: 35.4″
Max Turning Length: 43.3″
Max Bar Capacity: 10.2″
Swing Over Carriage: 35.4″
Swing Over Bed: 39.9″
Travel:
X Axis Travel: 16.5″
Z Axis Travel: 43.3″
Rapid Traverse X Axis: 197 IPM
Rapid Traverse Z Axis: 315 IPM
Spindle:
Spindle Nose: A1-20
Spindle Bore: 10.5″
Spindle Speed: 4 – 550 RPM
Spindle Motor: 50 HP

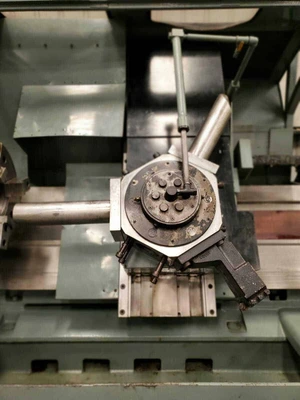

Turret:
Capacity: 6 Stations Turret
Turret Tool Type: BMT
General:
Power Source: AC 220 V,
Three Phase, 60 Hz Power
Requirement: 68 Amps Overall
Dimensions: 180″ x 80″ x 98″ High
Overall Dimensions: 220″ x 80″ x 98″ High with Chip Conveyor
Weight : 33,000 lbs. Approx.

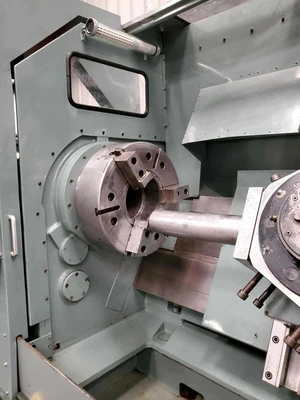

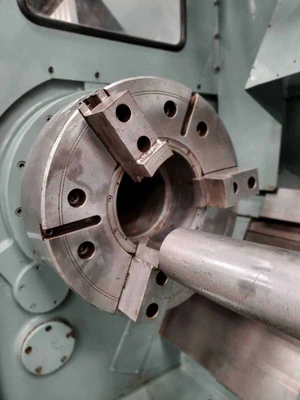

24″ 3-Jaw Chuck
A1-20 10.5″ Big Bore Spindle
(3) Tool Holders equipped on turret
Coolant Tank Comes with Chip Conveyor
Foot Operated Control for Chuck
