| X | 22" | 558.8 mm |
| Y | 22" | 558.8 mm |
| Z | 26" | 660.4 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 40 | 40 |
| Taper | CAT-40 | CAT-40 |
| Pallet-W | 15.7" | 398.78 mm |
| Pallet-L | 15.7" | 398.78 mm |
| # Axis | 4 | 4 |
| Control | CNC (Mori Seiki MSX-853IV CNC Control) | CNC (Mori Seiki MSX-853IV CNC Control) |
| Dimensions | 165″ X 105″ x 100″ High | 165″ X 105″ x 100″ High |
| Weight | 16,755 lbs | 16,755 lbs |
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Features:

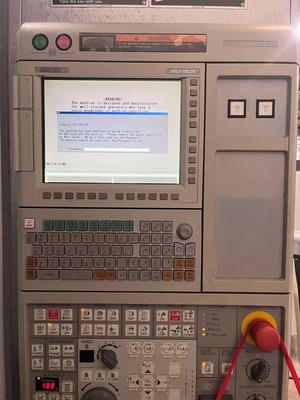

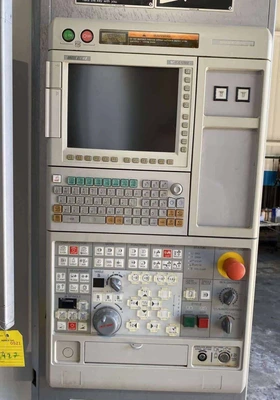

Mori Seiki MSX-853IV CNC Control
12,000 RPM High Precision Spindle
USB Ports
50 MB Memory
Pallet Seat Detection
Spindle Orientation
Rigid Tapping
Custom Macros
Fast Rapid Traverse Rate
Travels:
X Axis: 22.0″
Y Axis: 22.0″
Z Axis: 26.0″

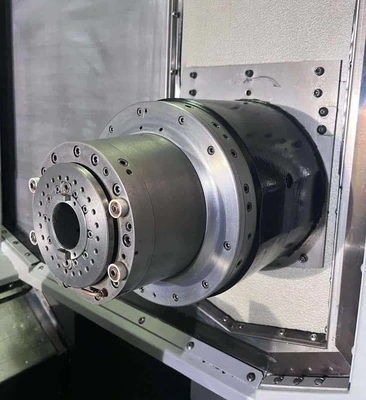

B Axis: 0.001° ( Full 4th )
Table:
Length: 15.7″
Width: 15.7″
Max Weight on Table: 882 lbs
Max Workpiece Height: 35.4″
Index Time: 8 seconds
Spindle:
Taper Size: CAT-40
Max. Speed: 12,000 RPM
Power: 40 HP
Torque: 76.7 ft/lbs
Feed Rates:
Rapid X & Y : 2352 Inch Per Minute
Rapid Z : 2352 Inch Per Minute
Cutting Feedrate : 984 Inch Per Minute
Tool Changer:
Capacity: 40 Tools
Taper: CAT-40
Max Tool Size: 6.6″
Max Tool Length: 17.7″
Max Tool Weight: 18 lbs.
Tool Change Time: 0.9 Second
General:
Air Required: 90 psi, 4 scfm

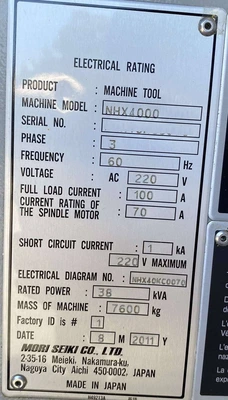

Power: 38 kva / 205-220v / 3-Phase
Overall Dimensions: 165″ X 105″ x 100″ High
Weight: 16,755 lbs
Full 4th Axis
Coolant through Spindle

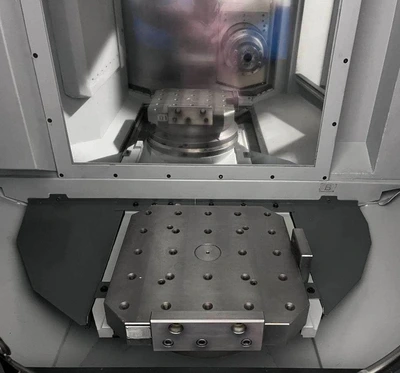

Twin Pallet Changer
40 Station High Speed Tool Changer

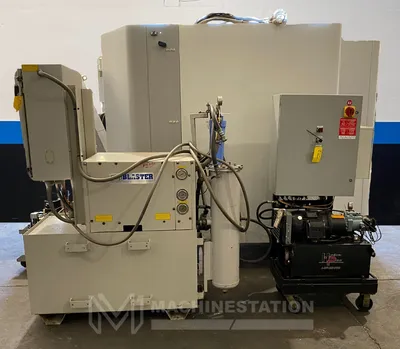

Flood coolant with large separate coolant tank

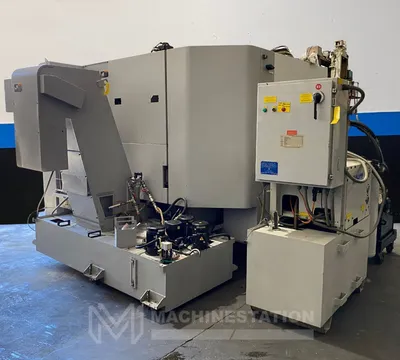

Chip Conveyor
Work light
