X: 102.4"
Y: 43.3"
z: 35.4"
Max Workpiece Diameter: 55.1"
Max Workpiece Height: 36.6"
Max Workpiece Weight: 8,818.5 lbs
Max workpiece length: 126"
Max workpiece width: 43.3
Dimensions: W 17.75' x L 33.55' x H 10.375'
Weight: 33,223 lbs

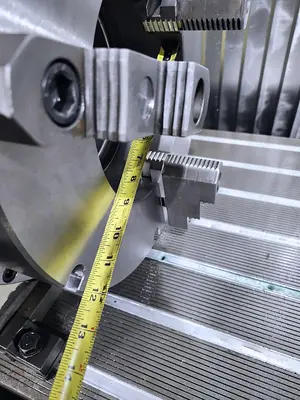

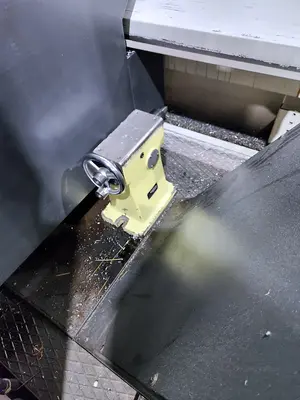

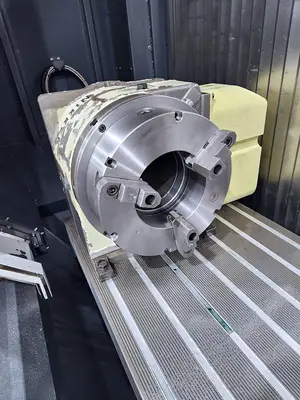

Nikken 4th axis CNC rotary table model CNCB450ZA with 16″ diameter 3-jaw chuck with 8 1/2" thru hole and tailstock
(new cost approx $50K)
Heidenhain TNC 640 CNC 5 axis control w/ 19" screen
DMG ERGOline Operation Panel
31.49 HP Motor

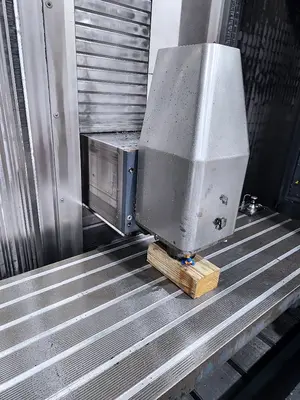

SK40 Spindle 8000rpm
Independent Coolant system with paper filter"

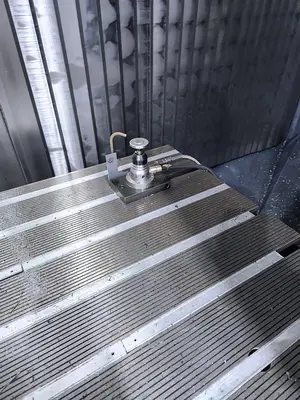

Touch Probe
