USED 2005 MILLTRONICS RW20 3 AXIS VERTICAL MACHINING CENTER

16 Station Side Mounted Tool Changer

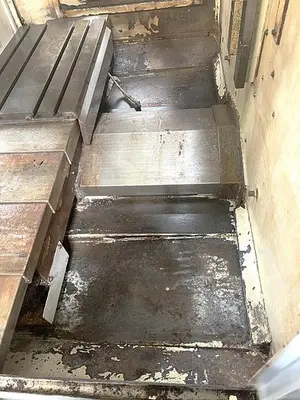

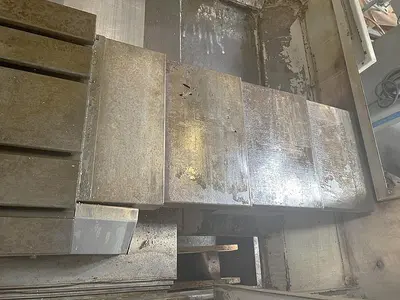

Boxed Way Design
PC Based CPU w/ 6 MB Memory
Conversational or G & M Code Programming
Rigid Tapping
Flood Coolant

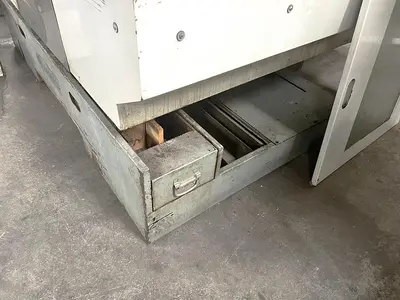

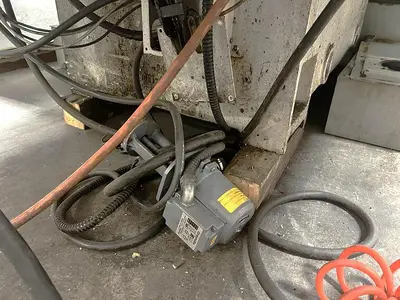

Coolant Tank with Pump
3.5" Floppy Disk Drive Interface
RS-232 Port with DNC Interface

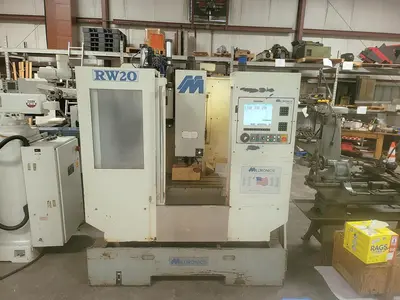

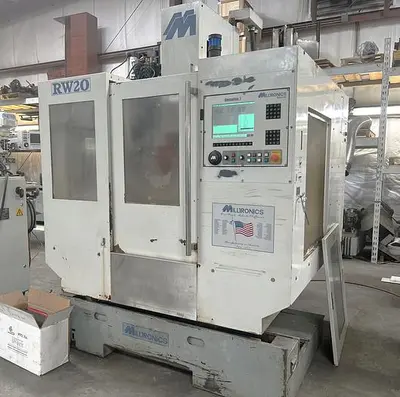

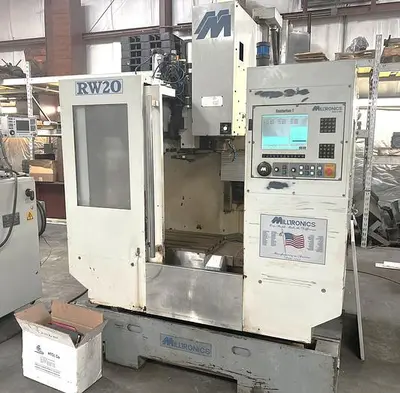

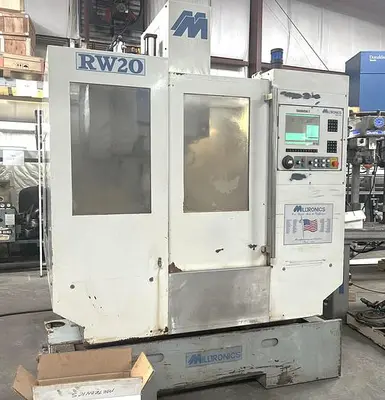

The 2005 Milltronics RW20 3 Axis VMC is a reliable used Vertical Machining Center featuring the Milltronics Centurion 7 control system. This machine is equipped with a 30" x 18" table that can handle a maximum load of 1,000 lbs, and offers travel distances of 25" on the X-axis, 20" on the Y-axis, and 20.5" on the Z-axis. It uses a CAT 40 spindle taper, with spindle speeds reaching up to 8,000 RPM and powered by an 18 HP motor. The machine's dimensions are 74" x 81" x 87" (with 102" max work height)(LxWxH) and it weighs 8,500 lbs.

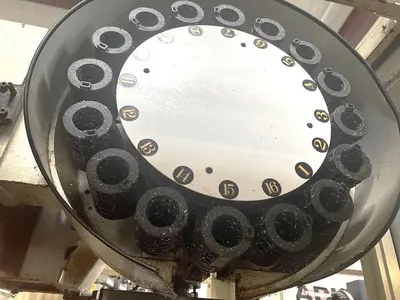

The RW20's side-mounted 16 position Automatic Tool Changer enhances machining efficiency and supports maximum tool dimensions of 4" in diameter and 9" in length, with a tool weight limit of 15 lbs. The distance from the spindle nose to the table top ranges from 4.5" to 25", allowing versatility in handling different workpieces. Rapid traverse rates reach 1,000 IPM on the X and Y axes, and 800 IPM on the Z-axis, facilitating swift movement during operations.

Designed with boxed ways for improved stability and accuracy, this machine also supports both G Code and conversational programming for flexible machining capabilities. Its construction ensures robust performance, making it a dependable choice for a variety of manufacturing applications.

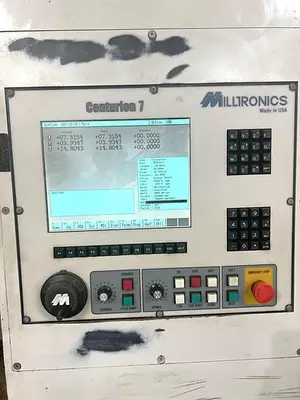

Control: Milltronics Centurion 7

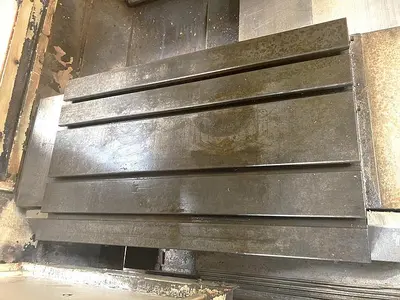

Table size: 30"x18"
Maximum Table Load: 1,000 lbs
X-Axis Travel: 25"
Y-Axis Travel: 20"
Z-Axis Travel: 20.5"

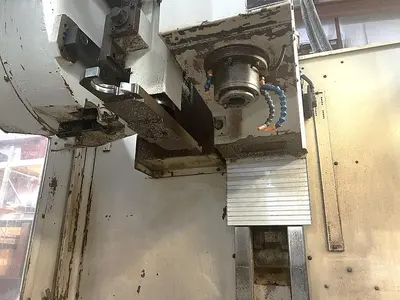

Spindle Taper: CAT 40
Spindle Speed: 8,000 RPM
Spindle Motor: 18 HP / 12 HP
Distance Spindle Nose to Table Top: 4.5" to 25"
Tool Magazine Capacity: 16 Station Side Mounted Tool Changer
Column to Spindle Center: 21"
Rapid Traverse Rates X, Y / Z: 1,000 IPM / 800 IPM
Maximum Tool Diameter / Length / Weight: 4" / 9" / 15 lbs

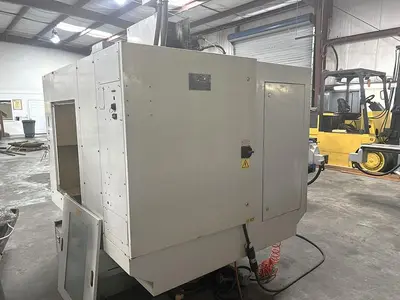

Machine Dimensions LxWxH: 74" x 81" x 88"
Machine Weight: 8,500 lbs
