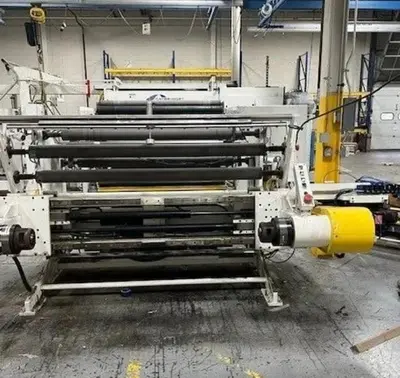

USED 2018 CATBRIDGE 344-MC-18

Used 55" Wide Catbridge Model 344-MC-18 Duplex Turreted Slitter Rewinder
Unwind: Shaftless floor pick up
Unwind roll diameter: 50” (1270 mm)
Unwind roll weight: 5000 lbs. (2268 kg)

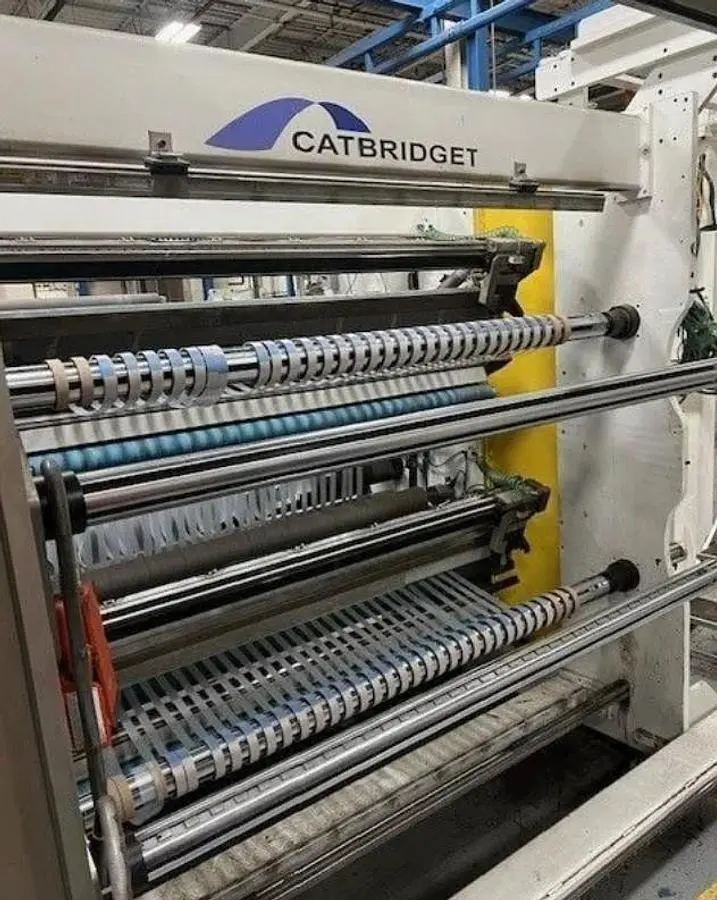

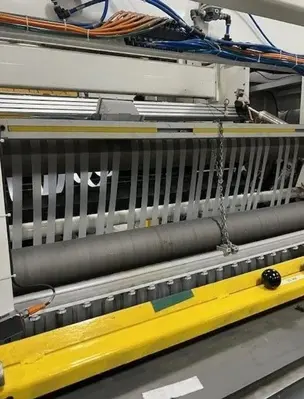

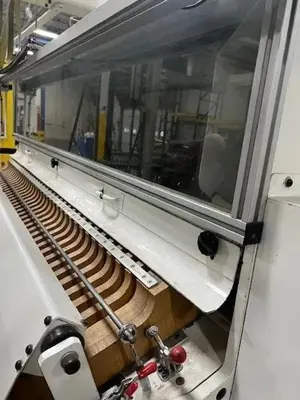

Shear slitting
Current set ups for: 15mm, 17mm, 20mm & 22mm cuts
Core loading system for new cores
Can run with liner or no liner
Yushin Netliner Autopacker included. This is for full boxes of slit product to be set onto pallets
Full documentation included with machine.
Rewind diameter maximum: 18" (material dependent)

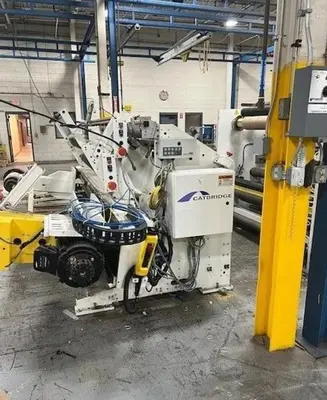

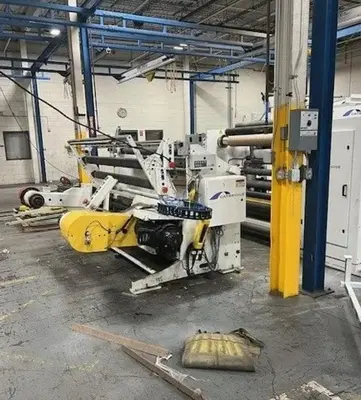

The fully-automatic 334MC turret delivers exceptional time savings and roll quality. This three-shaft, single-turret winder winds on one shaft while loading cores and stripping finished rolls on the other shafts. The 334MC is also designed to keep a short distance from the slitting and rewinding points, resulting in precise strand control even with challenging substrates.
The 334MC can be used as a stand-alone slitter rewinder or as an inline slitter rewinder. Inline applications include thick building products with short roll lengths and tapes with wide cuts. This highly-automated turret is ideal for jobs with quick rewind cycles and lots of changeovers.
