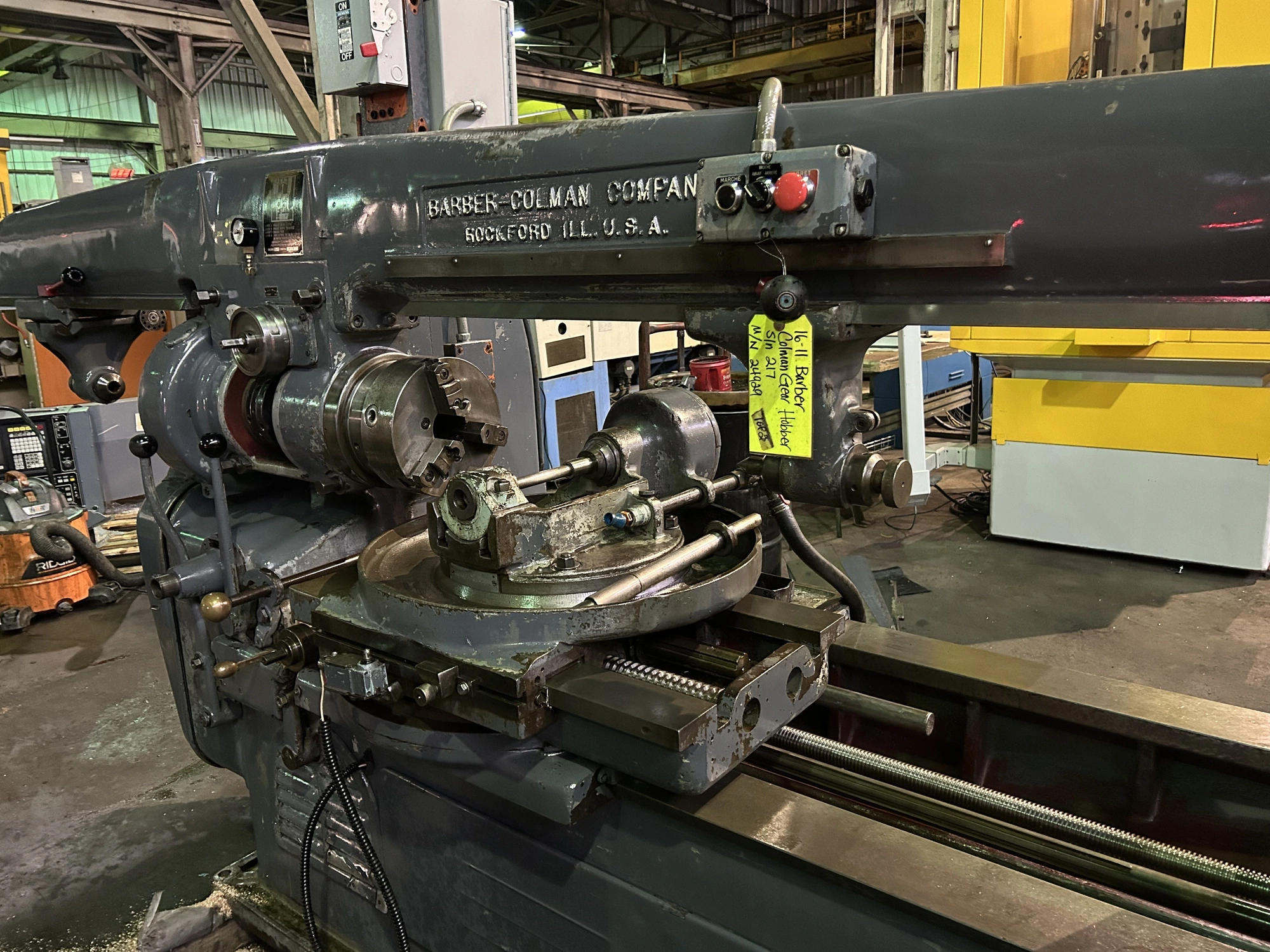

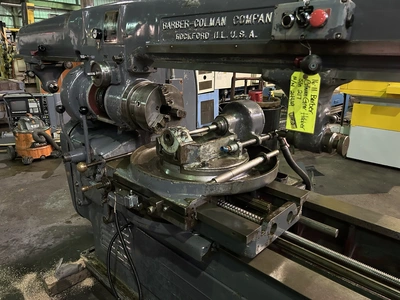

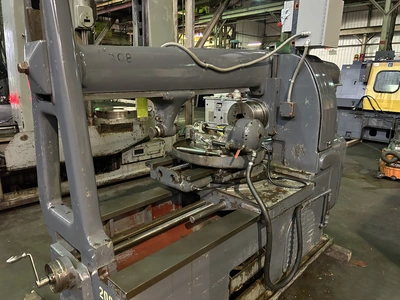

BARBER COLMAN 16-11 Spline Hobber. Comes with Extended Overarm, 4.125" Spindle Bore, Arbors, Tailstock, Chuck, and more. See on power!
| Max Dia. Gear | 16" | 406.4 mm |
| Capacity | 36" | 914.4 mm |
| Max Diametral Pitch | 5 dp | 5 dp |
| Horz/Vert | Horz | Horz |
| Control | CNC | CNC |
Specifications:
Maximum Pitch Diameter: 16"
Maximum Length of Part: 42"
Center Distance Between Work and Hob Spindle:
-Maximum: 8-3/4"
-Minimum: 1"
Length of Cut, Maximum Rated: 36"
Maximum Hob Spindle Diameter: 1.25"
Maximum Hob Slide Travel: 11.5"
Minimum Work to Hob Arbor Centers: 1"
Maximum Work to Hob Arbor Centers: 8.75"
Minimum Face of Work Spindle to Centerline of Hob Swivel: 8"
Maximum Work Spindle to Tail-Center: 42.5"
Work Spindle Center to Overarm: 8"

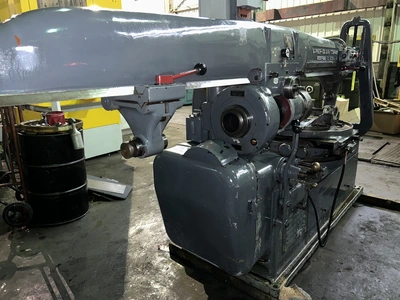

Extended Overarm
4.125" Spindle Bore
1.25" Hob Arbor
1" Hob Arbor
Arbor Support
Tailstock W/Center
Chip Bucket

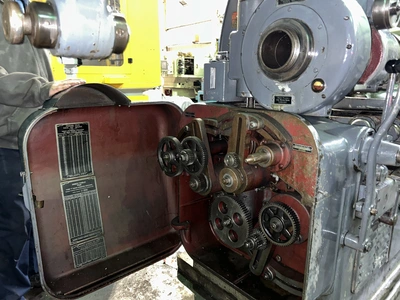

Change Gears
Double Thread Index

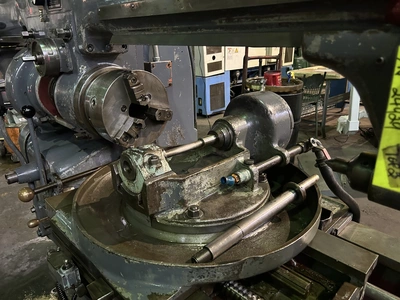

10" 3-Jaw Chuck
